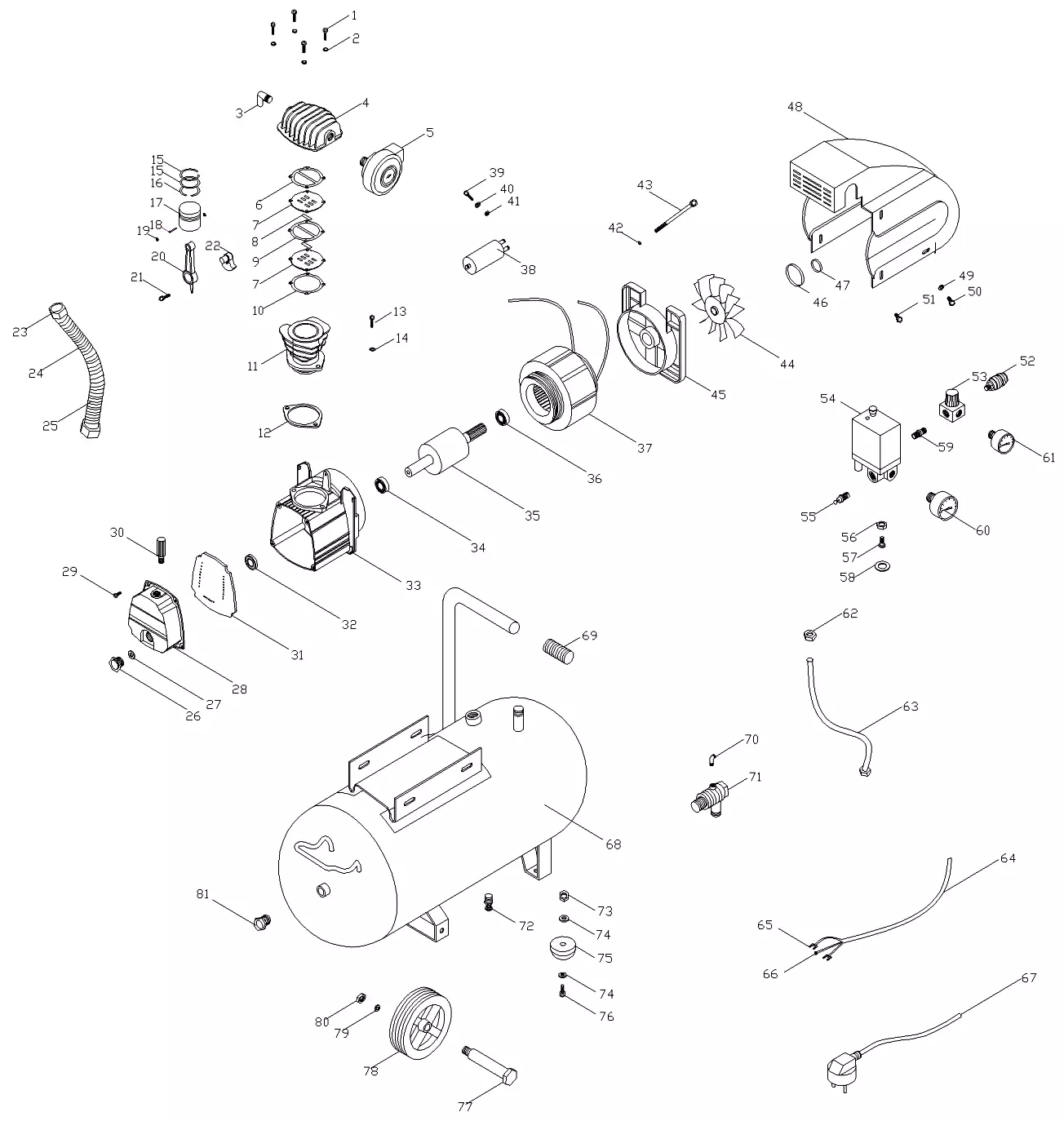

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
hex bolt |
| 2 |  |
lock washer |
| 3 |  |
elbow |
| 4 |  |
cylinder head |
| 5 |  |
air filter |
| 6 | cylinder head gasket | |
| 7 | valve plate upper | |
| 8 | valve plate | |
| 9 | alumium plate | |
| 10 | valve plate gasket | |
| 11 | cylinder | |
| 12 | cylinder gasket | |
| 13 | hex bolt | |
| 14 | lock washer | |
| 15 | piston ring | |
| 16 | oil ring | |
| 17 | piston | |
| 18 | piton pin | |
| 19 | exit retaining ring | |
| 20 | connecting rod | |
| 21 | hex bolt | |
| 22 | crankshaft | |
| 23 | nut | |
| 24 | tube | |
| 25 | Radiator fin（optional） | |
| 26 | oil indicator | |
| 27 | oil indicator seal | |
| 28 | crankcase cover | |
| 29 | hex bolt | |
| 30 | breathing plug | |
| 31 | cover seal | |
| 32 | oil seal | |
| 33 | crankcase | |
| 34 | bearing | |
| 35 | Rator | |
| 36 | bearing | |
| 37 | stator | |
| 38 | capacitor | |
| 39 | hex nut | |
| 40 | lock washer | |
| 41 | lock washer | |
| 42 | lock washer | |
| 43 | hex bolt | |
| 44 | fan | |
| 45 | rear motor cover | |
| 46 | spacer | |
| 47 | exit retaining ring | |
| 48 | motor cover | |
| 49 | washer | |
| 50 | Bolt | |
| 51 | Bolt | |
| 52 | quick connector | |
| 53 | regulator | |
| 54 | pressure switch | |
| 55 | safety valve | |
| 56 | pressure switch connector | |
| 57 | nut | |
| 58 | special washer | |
| 59 | connector | |
| 60 | pressure gauge | |
| 61 | pressure gauge | |
| 62 | compression nut | |
| 63 | unloading pipe | |
| 64 | cable | |
| 65 | wire | |
| 66 | earth wire | |
| 67 | plug | |
| 68 | tank | |
| 69 | handle grip | |
| 70 | nut | |
| 71 | check valve | |
| 72 | drain valve | |
| 73 | Hex nut | |
| 74 | Flat washer | |
| 75 | Foot | |
| 76 | Hex bolt | |
| 77 | Axle | |
| 78 |  |
Wheel |
| 79 |  |
Lock washer |
| 80 |  |
Hex nut |
| 81 |  |
indicator (optional） |
