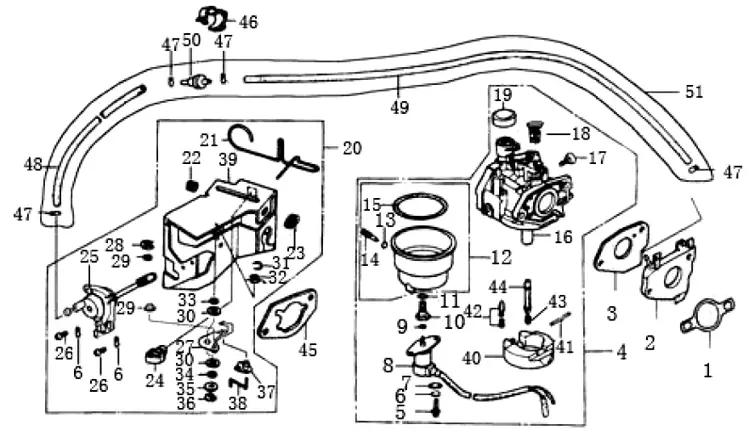

Carburetor Assy
Carburetor Assy
| П-п | Арт | Название |
|---|---|---|
| 1 | Inlet gasket | |
| 2 | Float needle | |
| 3 | Carburetor gasket | |
| 4 | Carburetor Assy | |
| 5 | Screw M5×12 | |
| 6 | Spring washer 5mm | |
| 7 | Flat washer 5mm | |
| 8 | Magnetic valve, carburetor | |
| 9 | Gasket, carburetor magnetic valve | |
| 10 | Floater chamber Screw | |
| 11 | Screw gasket | |
| 12 | Float chamber assy | |
| 13 | Float chamber drain Screw Washer | |
| 14 | Float chamber drain Screw | |
| 15 | Gasket ,float chamber | |
| 16 | Mixture chamber body Assy | |
| 17 | Idle adjustment screw | |
| 18 | Idle jet | |
| 19 | Dust cover, choke | |
| 20 | Manual choke Assy | |
| 21 | Manual Tie rod, choke | |
| 22 | Manual Rubber washer, choke lever － | |
| 23 | Manual Rubber washer, choke lever 二 | |
| 24 | Manual Stopper, choke rod | |
| 25 | Manual Regulation valve, choke Assy | |
| 26 | Screw M5×12 | |
| 27 | Manual Choke lever | |
| 28 | Washer 四 | |
| 29 | Washer 三 | |
| 30 | Manual Packing ring | |
| 31 | Washer 7mm | |
| 32 | Manual Spring, choke | |
| 33 | Washer 2 | |
| 34 | Washer 1 | |
| 35 | Flat washer 5 | |
| 36 | Washer 4mm | |
| 37 | Joint, choke stem | |
| 38 | Choke stem | |
| 39 | Manual Bracket Assy | |
| 40 | Carburetor Float | |
| 41 | Float pin | |
| 42 | Float needle | |
| 43 | Main jet | |
| 44 | Main nozzle | |
| 45 | Gasket, air cleaner | |
| 46 | Clamp, check valve | |
| 47 | Tube clip（一） | |
| 48 | Hose（二） | |
| 49 | Hose（一） | |
| 50 | Check valve | |
| 51 | Check valve Assy |
