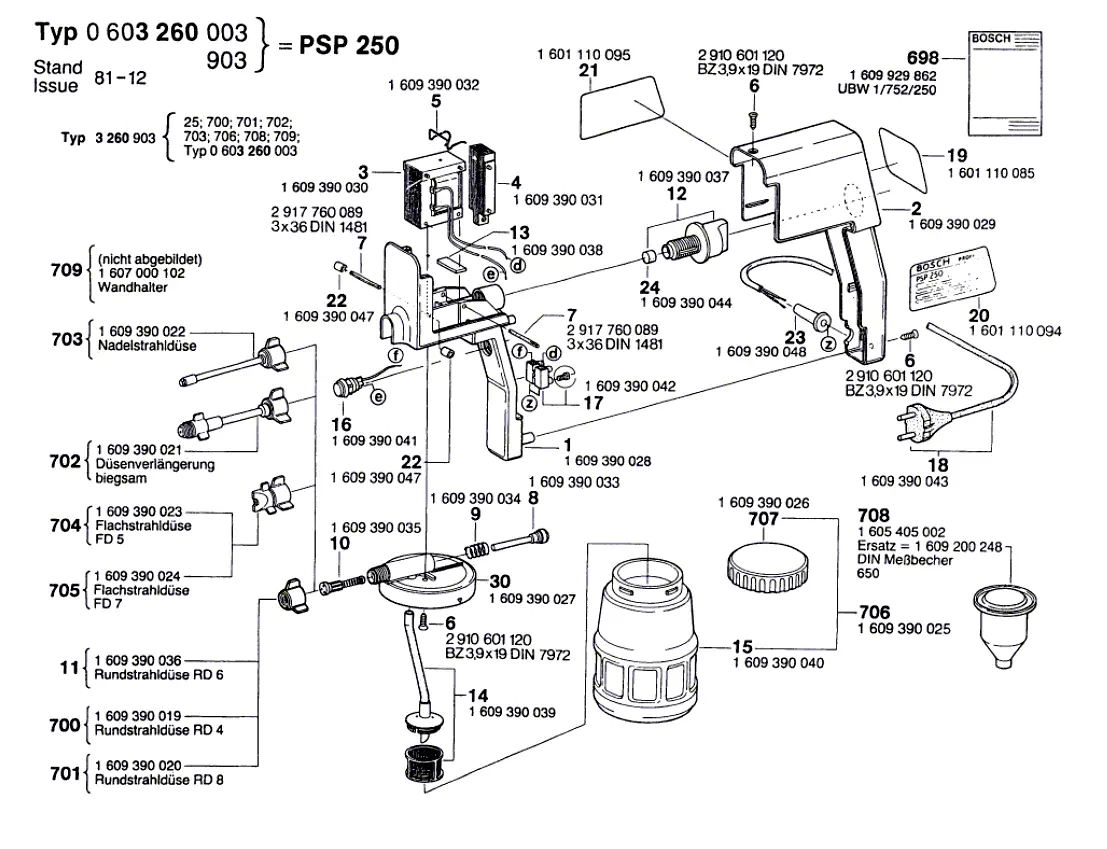

PSP 250 (0603260003)
PSP 250 (0603260003)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Handle |
| 2 |  |
Housing Cover GREEN |
| 2 |  |
Housing Cover BLUE |
| 3 |  |
Oscill. Armature Magnet |
| 4 |  |
Oscillating Armature |
| 5 |  |
Holding Spring |
| 6 |  |
Tapping Screw BZ 3,9x19 DIN 7972 |
| 7 |  |
Coiled Spring Pin 3x36 DIN 1481 |
| 8 |  |
Pump piston |
| 9 |  |
Compression Spring |
| 10 |  |
Vacuum/Pressure Valve |
| 11 |  |
Cylindrical-Spray Nozzle Ø 0,6 MM |
| 12 |  |
Adjusting Screw |
| 13 |  |
Rubber Buffer |
| 14 |  |
Suction Pipe |
| 15 |  |
Paint Beaker |
| 16 |  |
On-Off Switch |
| 17 |  |
connecting terminal 2-POLE |
| 18 |  |
Power supply cord |
| 20 |  |
Reference Plate |
| 21 |  |
Reference Plate |
| 22 |  |
Protective Cap |
| 23 |  |
Grommet |
| 24 |  |
Rubber Buffer |
| 30 |  |
Pump Housing |
| 650 |  |
Paint Container |
| 700 |  |
Cylindrical-Spray Nozzle Ø 0,4 MM |
| 701 |  |
Cylindrical-Spray Nozzle Ø 0,8 MM |
| 702 |  |
Nozzle Extension |
| 703 |  |
Pencil-Spray Nozzle |
| 704 |  |
Flat-Spray Nozzle FD 5 |
| 705 |  |
Flat-Spray Nozzle FD 7 |
| 706 |  |
Paint Beaker |
| 707 |  |
Reservoir Cap |
| 708 |  |
Strainer |
| 709 |  |
Mounting Piece |
| 800 |  |
Combi Spray Gun |
| 888 |  |
Nameplate |
