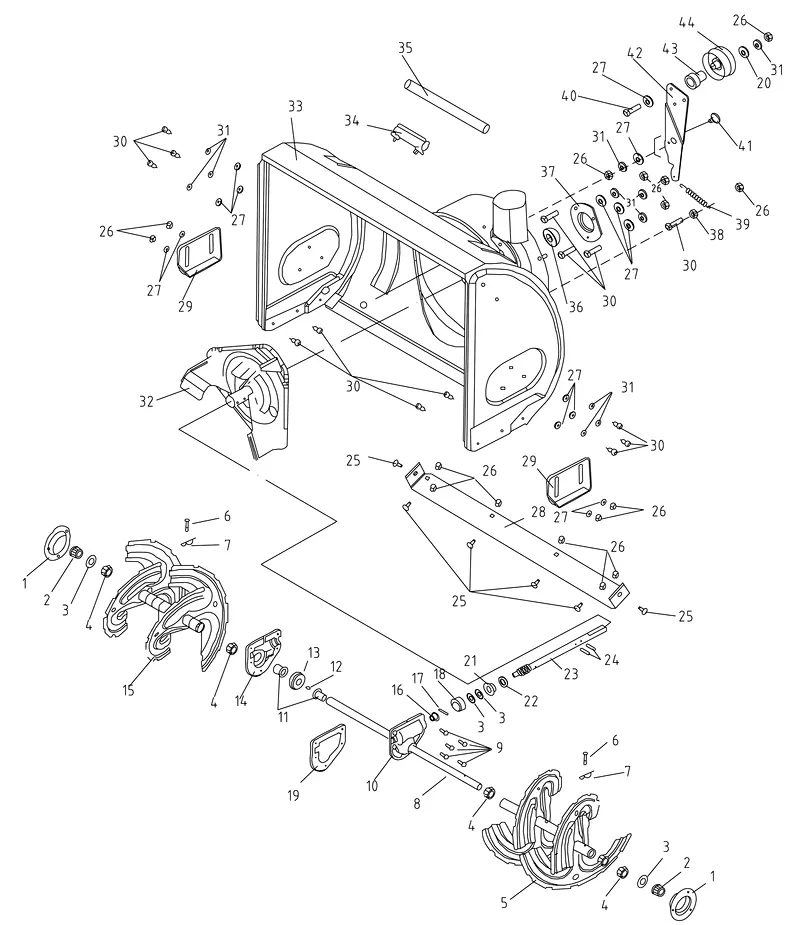

01 Корпус шнека, шнек, крыльчатка, крепление шнека
01 Корпус шнека, шнек, крыльчатка, крепление шнека
| П-п | Арт | Название |
|---|---|---|
| 1 | bearing stand | |
| 2 | plastic bearing | |
| 3 | washer | |
| 4 | anger axis knot | |
| 5 | right anger | |
| 6 | safe pin | |
| 7 | butterfly pin ⌀2.4X55 | |
| 8 | anger axis | |
| 9 | bolt M5X16 | |
| 10 | right cover | |
| 11 | auger bush | |
| 12 | key 5X7.5X18 | |
| 13 | worm | |
| 14 | worm left cover | |
| 15 | left auger | |
| 16 | axis knot | |
| 17 | pin | |
| 18 | knot | |
| 19 | seal washer | |
| 20 | washer | |
| 21 | axis knot | |
| 22 | seal washer | |
| 23 | worm pole | |
| 24 | column pin GB/T879.1 5X32 | |
| 25 | bolt M8X16 | |
| 26 | nut M8 | |
| 27 | washer | |
| 28 | snow plowing part | |
| 29 | slip board | |
| 30 | bolt M8X16 | |
| 31 | washer | |
| 32 | fan | |
| 33 | chassis | |
| 34 | bar bracket | |
| 35 | snow rpey bar | |
| 36 | bearing | |
| 37 | bearing amchorage | |
| 38 | nut | |
| 39 | spring | |
| 40 | bolt M8X40 | |
| 41 | screw | |
| 42 | bension board | |
| 43 | thimble | |
| 44 | belt tension |
