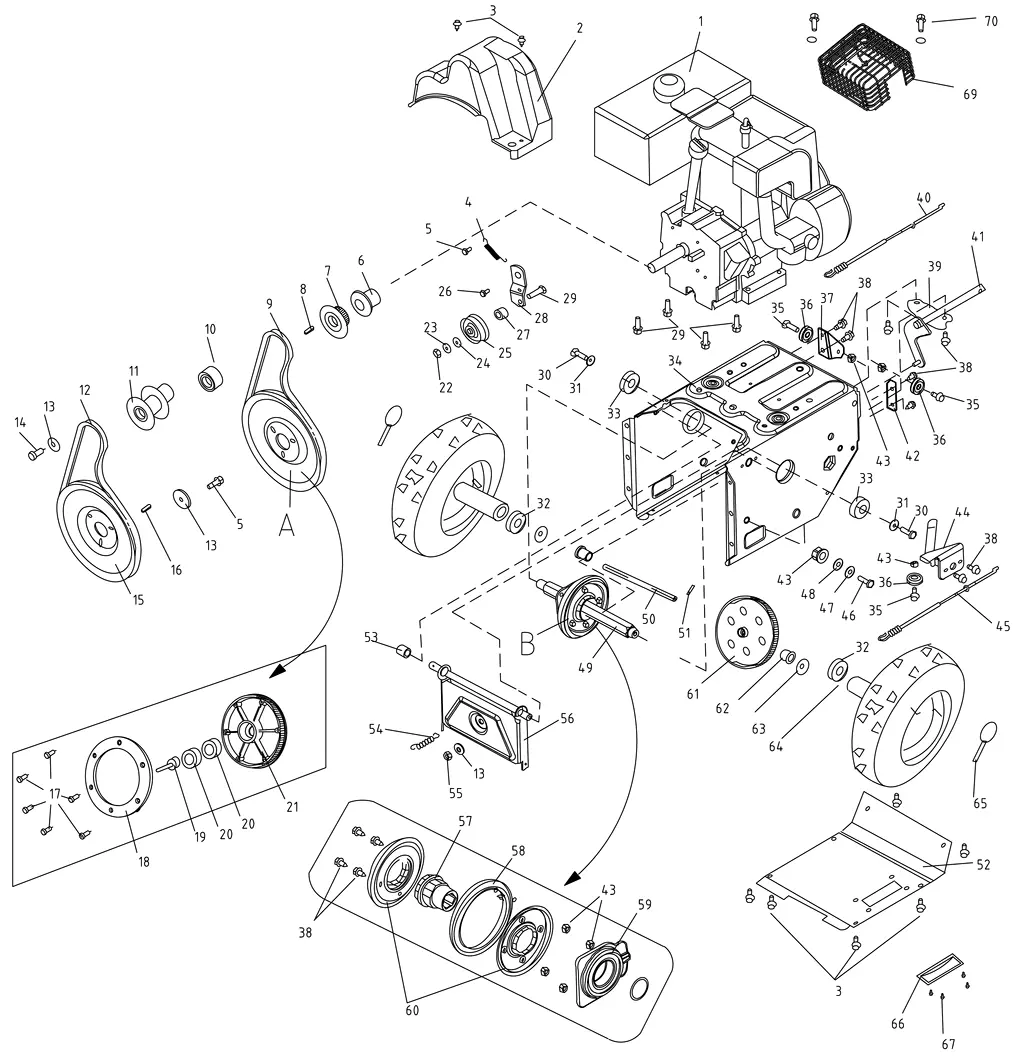

02 Колеса, привод, двигатель, рама
| П-п | Арт | Название |
|---|---|---|
| 1 | engine | |
| 2 | soofe cover | |
| 3 | bolt M6X12 | |
| 4 | spring | |
| 5 | bolt M8X16 | |
| 6 | bush | |
| 7 | small pulley | |
| 8 | key 4.5X75 | |
| 9 | belt | |
| 10 | bush | |
| 11 | pulley | |
| 12 | belt | |
| 13 | washer M8 | |
| 14 | bolt M8X35 | |
| 15 | pilley | |
| 16 | key A6X18 | |
| 17 | screw M6X10 | |
| 18 | fabrics | |
| 19 | pulley axis | |
| 20 | bearing 17X40X12 | |
| 21 | big pulley | |
| 22 | nut M8 | |
| 23 | washer M8 | |
| 24 | ring | |
| 25 | belt tenision | |
| 26 | screw | |
| 27 | thimble | |
| 28 | small tension board | |
| 29 | bolt M8X40 | |
| 30 | bolt M10X16 | |
| 31 | washer | |
| 32 | washer | |
| 33 | bearing 17X40X12 | |
| 34 | engine support | |
| 35 | screw | |
| 36 | guiding ring | |
| 37 | guiding board | |
| 38 | bolt | |
| 39 | anchorage board | |
| 40 | stepping clutch coble | |
| 41 | clutch lower coble | |
| 42 | guiding board | |
| 43 | nut M6 | |
| 44 | guiding board | |
| 45 | plowing clutch cable | |
| 46 | bolt M6X28 | |
| 47 | washer M6 | |
| 48 | washer | |
| 49 | axis | |
| 50 | wheel axis | |
| 51 | column pin 5X32 | |
| 52 | base board | |
| 53 | thimble | |
| 54 | direction spring | |
| 55 | nut M10 | |
| 56 | fabric bracket | |
| 57 | six\\\'bush | |
| 58 | ricbber washer | |
| 59 | sliding fork | |
| 60 | fabrics | |
| 61 | big gear | |
| 62 | bush | |
| 63 | bush | |
| 64 | Air-filled wheel | |
| 65 | bolt | |
| 66 | base cover | |
| 67 | screw | |
| 68 | ring | |
| 69 | proteotor | |
| 70 | bolt |
