Divertron X 1200 M

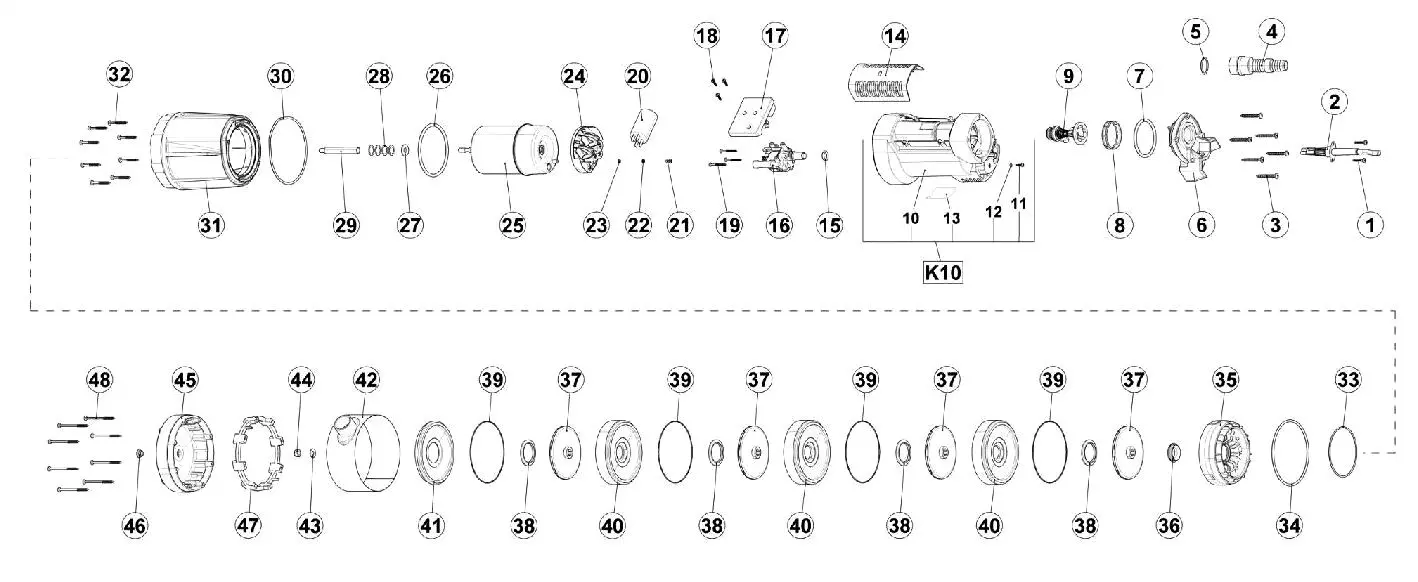

Divertron X 1200 M
| П-п | Арт | Название |
|---|---|---|
| K10 |  |
COVER |
| 1 |  |
SCREW TC+ PH D4,7x25 INOX A2 |
| 2 |  |
POWER CABLE 15MH07 |
| 3 |  |
SCREW TC+ Ph d5,6x45 INOX A2 |
| 4 |  |
S3500044 - HOSE ADAPTOR |
| 5 |  |
OR 3112 28,25 X 2,62 EPDM 70 |
| 6 |  |
SP. PART COVER |
| 7 |  |
SP. PART RING |
| 8 |  |
SAND FILTER |
| 9 |  |
(DISCONTINUED)VALVE ASS.Y DIVERTRONIC |
| 14 |  |
PLUG |
| 15 |  |
SP. PART JOINT O.RING |
| 16 |  |
PRESSURE SWITCH 2.2-2.6 BAR |
| 17 |  |
&ELECTRONICS CARD (60145439) |
| 18 |  |
SCREW 3,5X16 |
| 19 |  |
SCREW TC+ PH 3,5 X 35 INOX A2 |
| 20 |  |
CAPACITOR UF12,5 V450 |
| 21 |  |
SCREW M4 X10 UNI 8112 ZNT C15 |
| 22 |  |
ELASTIC WASHER TOOTH. d4 FOSF. DIN 6798A |
| 23 |  |
WASHER |
| 24 |  |
SP. PART DISC PORTACAPACITOR |
| 25 |  |
SP. PART MOTOR |
| 26 |  |
SP. PART JOINT O.RING |
| 27 |  |
SP .PART WASHER |
| 28 |  |
SP. PART WASHER |
| 29 |  |
SP. PART HEXAGONAL SHAFT |
| 30 |  |
SP. PART JOINT O.RING |
| 31 |  |
BODY PUMP |
| 32 |  |
SCREW TC+ Ph d4,7x40 INOX A2 |
| 33 |  |
SP. PART JOINT O.RING |
| 34 |  |
SP. PART JOINT O.RING |
| 35 |  |
DIFFUSERS SUPPORT |
| 36 |  |
SP. PART V.RING |
| 37 |  |
SP. PART IMPELLER |
