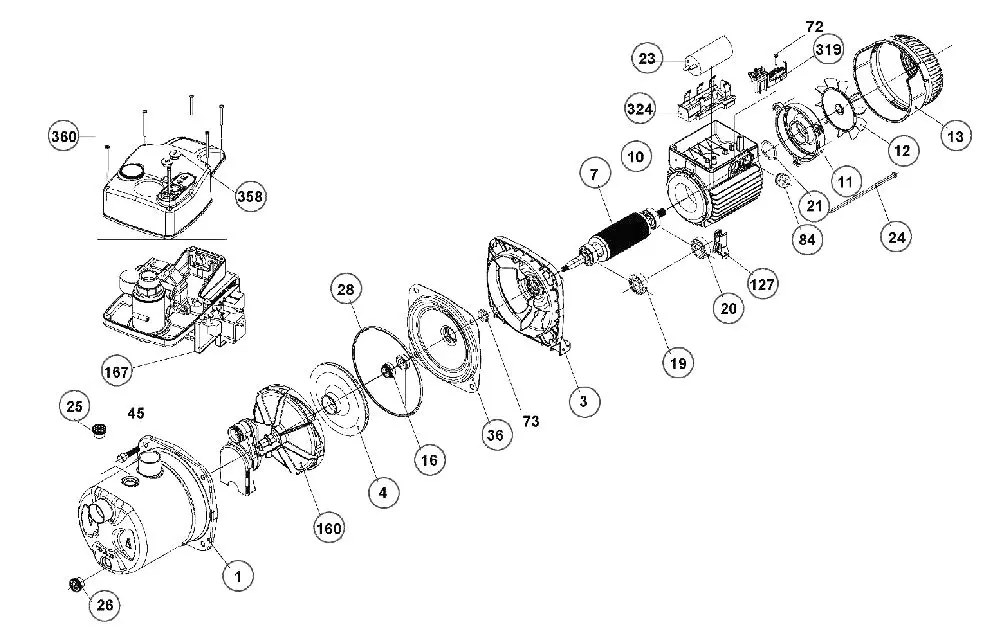

ACTIVE JI 112 M
ACTIVE JI 112 M
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
PUMP BODY |
| 3 |  |
MOTOR SUPPORT MEC 71 |
| 4 |  |
IMPELLER D.135 |
| 7 |  |
SHAFT W/ROT. |
| 10 |  |
&MOTOR MEC71 H90 01 220/240/50 |
| 11 |  |
MEC 71 MOTOR COVER |
| 12 |  |
FAN MEC71 |
| 13 | KIT FAN COVER W/SCREW MEC71/01 | |
| 14 | TERMINAL BOX COVER | |
| 16 | COMPLETE MECH.SEAL D.13 | |
| 18 | HEX.NUT M8 INOX A4 UNI5589-BAS. | |
| 19 | 6202-2RSH D.15X35X11 BEARING | |
| 20 | 6202-2RSH D.15X35X11 BEARING | |
| 21 | LMKAS D.35B THRUST WASHER | |
| 23 | 25 UF X 450V CAPACITOR MAX D.45X 71MM | |
| 24 | M5 X 160 MOTOR TIE ROD | |
| 25 | PRIMING PLUG 3/8\\\"GAS +O-RING | |
| 26 | PRIMING PLUG 3/8\\\"GAS +O-RING | |
| 28 | OR-4600 151,99X 3,53 NBR | |
| 36 | DISC SEAL.A.304 | |
| 73 | V-RING D.13,5-15X5,5H | |
| 84 | OPEN CABLE GLAND | |
| 127 | MOTOR FOOT MEC71 | |
| 160 | COMPLETE VENTURI+OR | |
| 167 | SP.PART BOARD | |
| 319 | PREMON.MORSET-FERMAC. | |
| 324 | CAPACITOR CLIP | |
| 358 | TRIMMER PLUG WITH OR | |
| 360 | KIT TERM.BOX COVER +SCREWS |
