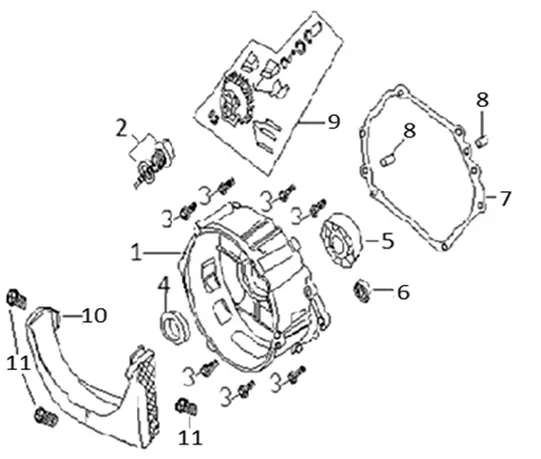

CRANKCASE COVER ASSY
| П-п | Арт | Название |
|---|---|---|
| 1 | Crankcase Cover | |
| 2 | Engine Oil Dipstick | |
| 3 | Bolt M8×40 | |
| 4 | Crankshaft Oil Seal | |
| 5 | Bearing 6207 | |
| 6 | Bearing 6202 | |
| 7 | Crankcase Gasket | |
| 8 | Dowel Pin Φ8*14 | |
| 9 | Driven Gear ,Regulator Assy | |
| 10 | Cover Guard | |
| 11 | Bolt M5×12 |
| П-п | Арт | Название |
|---|---|---|
| 1 | Crankcase Cover | |
| 2 | Engine Oil Dipstick | |
| 3 | Bolt M8×40 | |
| 4 | Crankshaft Oil Seal | |
| 5 | Bearing 6207 | |
| 6 | Bearing 6202 | |
| 7 | Crankcase Gasket | |
| 8 | Dowel Pin Φ8*14 | |
| 9 | Driven Gear ,Regulator Assy | |
| 10 | Cover Guard | |
| 11 | Bolt M5×12 |
