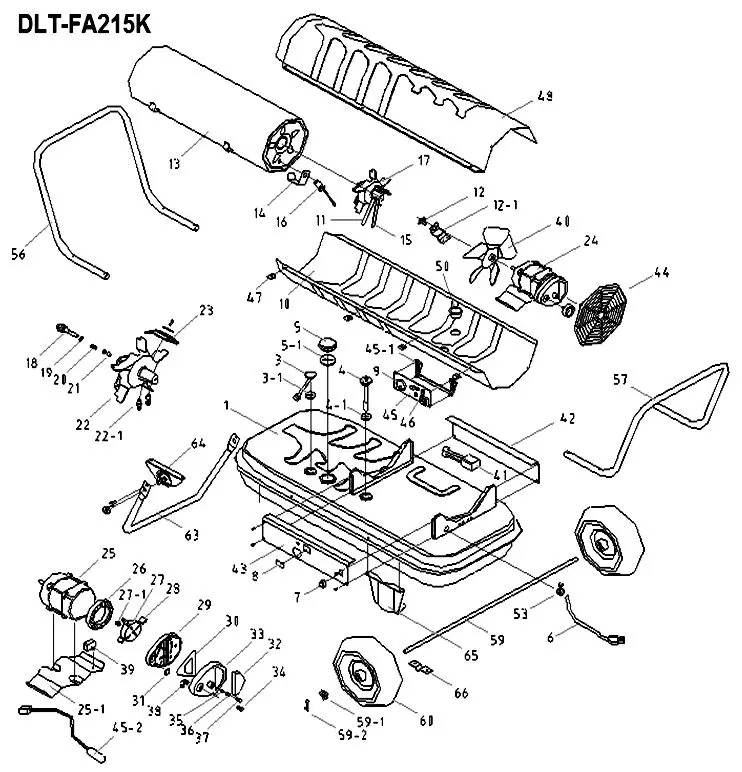

DLT-FA 215 K
| П-п | Арт | Название |
|---|---|---|
| 1 | Fuel Tank Ass’y | |
| 2 | ||
| 3 | Fuel Gauge Ass\\\'y | |
| 3-1 | Fuel Gauge Packing | |
| 4 | Fuel Filter Ass\\\'y | |
| 4-1 | Fuel Filter Packing | |
| 5 | Fuel Cap | |
| 5-1 | Fuel Cap Packing | |
| 6 |  |
Power Cord |
| 7 |  |
Power Switch |
| 8 |  |
Window Display |
| 9 |  |
Thermostat Control Knob |
| 10 |  |
Нижняя часть камеры сгорания DLT-FA215K |
| 11 |  |
Air Line |
| 12 |  |
Thermostat Lilmit Control |
| 12-1 |  |
Thermostat Bracket |
| 13 |  |
Камера сгорания DLT-FA215K |
| 14 |  |
Photocell Bracket |
| 15 |  |
Fuel Line |
| 16 |  |
Photocell |
| 17 |  |
Berner Head Ass’y |
| 18 |  |
Сопло DLT-FA215K |
| 19 |  |
Nozzle Seal Washer |
| 20 |  |
Nozzle Seal Spring |
| 21 |  |
Nozzle Sleeve |
| 22 |  |
Berner Head |
| 22-1 |  |
|
| 22-2 |  |
Nipple(L) |
| 23 |  |
Spak plug |
| 24 |  |
Двигатель с насосом в сборе DLT-FA215K |
| 25 |  |
Двигатель в сборе DLT-FA215K |
| 25-1 |  |
Motor Base (Round) |
| 26 |  |
Pump Body |
| 27 |  |
Rotor |
| 27-1 |  |
Insert |
| 28 |  |
Blade |
| 29 |  |
End Pump Cover |
| 30 |  |
Filter Kit |
| 31 |  |
Lint Filter |
| 32 |  |
Output Filter |
| 33 |  |
End Filter Cover |
| 34 |  |
Plug/Pump Adj.Kit |
| 35 |  |
Ball |
| 36 |  |
Spring |
| 37 |  |
Adjust Screw |
| 38 |  |
Elbow Nipple |
| 39 |  |
Capacitor |
| 40 |  |
Крыльчатка DLT-FA215K |
| 41 |  |
lgnitor |
| 42 |  |
Right Side Cover |
| 43 |  |
Left Side Cover |
| 44 |  |
Fan Guard(Steel) |
| 45 |  |
Main P.C.B Ass\\\'y |
| 45-1 |  |
Main P.C.B Bracket |
| 45-2 |  |
Thermistor |
| 46 | Fuse | |
| 47 | Clip Nut | |
| 48 | Upper shell | |
| 49 | ||
| 50 | Bushing Grommet(S) | |
| 50-1 | Bushing Grommet(L) | |
| 51 | ||
| 52 | ||
| 53 | Cord Bushing | |
| 54 | ||
| 55 | ||
| 56 | Front Handle | |
| 57 | Rear Handle | |
| 58 | ||
| 59 | Wheel Axle | |
| 59-1 | Washer | |
| 59-2 | Pin | |
| 60 | Wheel | |
| 61 | ||
| 62 | ||
| 63 | Adjustable Pipe Support | |
| 64 | Pipe Support Bracket | |
| 65 | Wheel Support Bracket | |
| 66 | Shaft Fix Bracket | |
| 67 | ||
| 68 | ||
| 69 |
