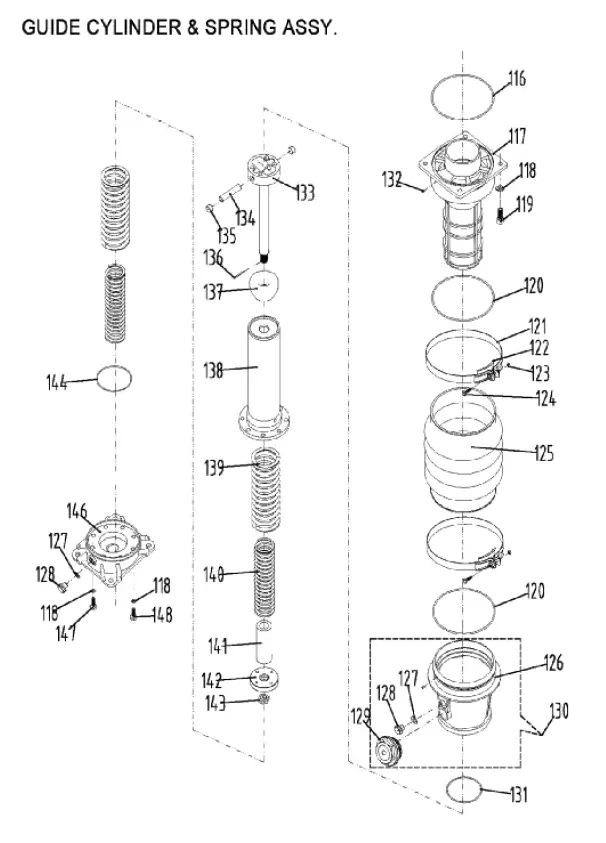

GUIDE CYLINDER & SPRING ASSY.
| П-п | Арт | Название |
|---|---|---|
| 116 | O-RING 160X5.3-GB3452.1 | |
| 117 | GUIDE CYLINDER | |
| 118 |  |
SPRING WASHER 10-GB93 |
| 119 |  |
BOLT M10X35-GB5783 |
| 120 |  |
O-RING 160X3.55-GB3452.1 |
| 121 |  |
BELLOW CLAMP |
| 122 |  |
SCALEBOARD |
| 123 |  |
NUT M8 GB6170 |
| 124 |  |
BOLT M8X40-GB5783 |
| 125 |  |
BELLOW |
| 126 |  |
PROTECTION SLEEVE |
| 127 |  |
COPPER WASHER 14 |
| 128 |  |
PLUG M14X1.5 |
| 129 |  |
LEVEL GAUGE M24X1.5-GB1160.2 |
| 130 |  |
PROTECTION SLEEVECOMPONENTS 130（126～129） |
| 131 |  |
O-RING 95X2.65-GB3452.1 |
| 132 |  |
PIN |
| 133 |  |
PISTON ROD |
| 134 |  |
PISTON PIN |
| 135 |  |
PISTON END CAP |
| 136 |  |
PIN 3.2X36 GB91 |
| 137 |  |
STOPPER, UPPER |
| 138 |  |
SPRING CYLINDER |
| 139 |  |
SPRING, OUTER |
| 140 |  |
SPRING, INNER |
| 141 |  |
STOPPER, LOWER |
| 142 |  |
PISTON END |
| 143 |  |
NUT M18X1.5-GB6178 |
| 144 |  |
O-RING 87.5X3.55-GB3452.1 |
| 146 |  |
FOOT PLATE |
| 147 |  |
HEXAGONAL BOLT M10X20-GB70.1 |
| 148 |  |
HEXAGONAL BOLT M10X40-GB70.1 |
