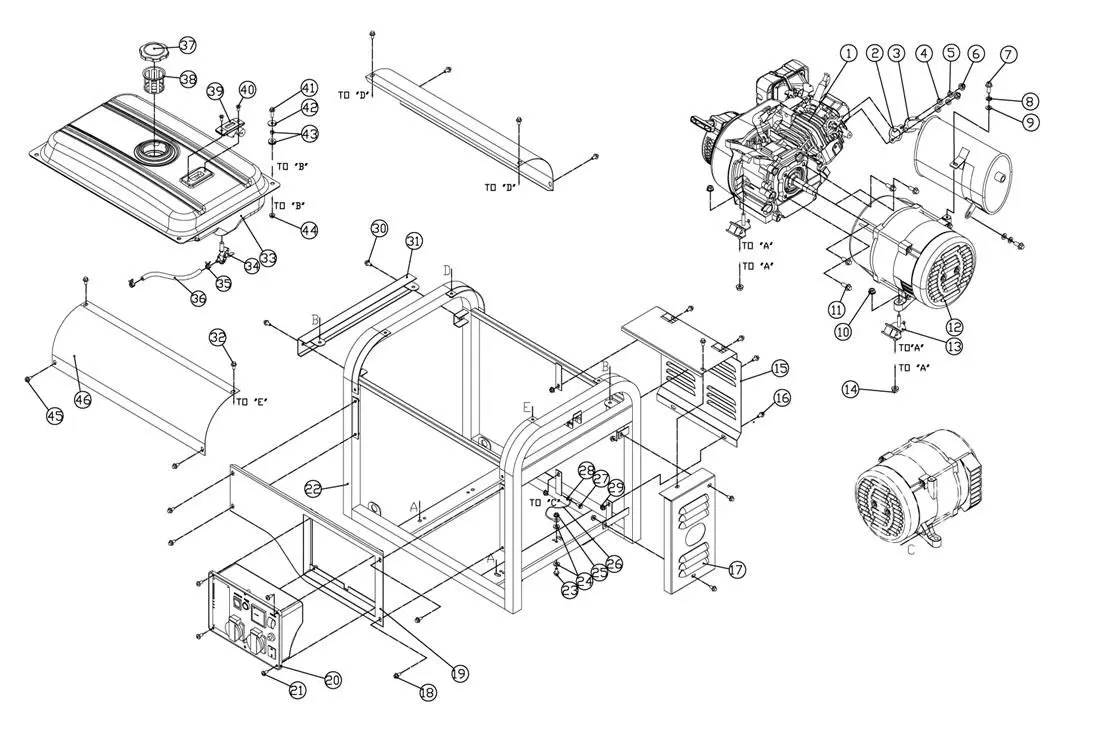

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
gasoline engine |
| 2 |  |
Muffler washer |
| 3 |  |
muffler |
| 4 |  |
φ8 washer |
| 5 |  |
φ8 spring washer |
| 6 |  |
M8 flange nut |
| 7 |  |
M8×20 flange bolt |
| 8 |  |
φ8 spring washer |
| 9 |  |
φ8 washer |
| 10 |  |
M8 flange nut |
| 11 |  |
M8×25 flange boltr |
| 12 |  |
190×80 generator |
| 13 |  |
shock absorber |
| 14 |  |
M8 flange nut |
| 15 |  |
muffler safeguard cover |
| 16 |  |
M6×12 flange bolt |
| 17 |  |
muffler side hood |
| 18 |  |
M6×12flange bolt |
| 20 | control panel assem | |
| 21 | M6×12screw | |
| 22 | GG2900 frame | |
| 23 | M6×12 flange bolt | |
| 24 | φ5 dentiform washer | |
| 25 | M6 flange nut | |
| 26 | 12cm grounding wie | |
| 27 | M6×12flange bolt | |
| 28 | φ6 dentiform washer | |
| 29 | M6 flange nut | |
| 30 | M6×12flange bolt | |
| 32 | M6×12 flange bolt | |
| 33 | 15L fuel tank | |
| 34 | fuel tank cock assem | |
| 35 | φ8 clamp | |
| 36 | φ8×20cm fuel pipe | |
| 37 | fuel tank cup assem | |
| 38 | filter cup | |
| 39 | control panel | |
| 40 | M5×12 screw | |
| 41 | M8×25 flange bolt | |
| 42 | M6×φ18 plain washer | |
| 43 | φ8 shock absorber | |
| 44 | M6 flange nut | |
| 45 | M6×12 flange bolt |
