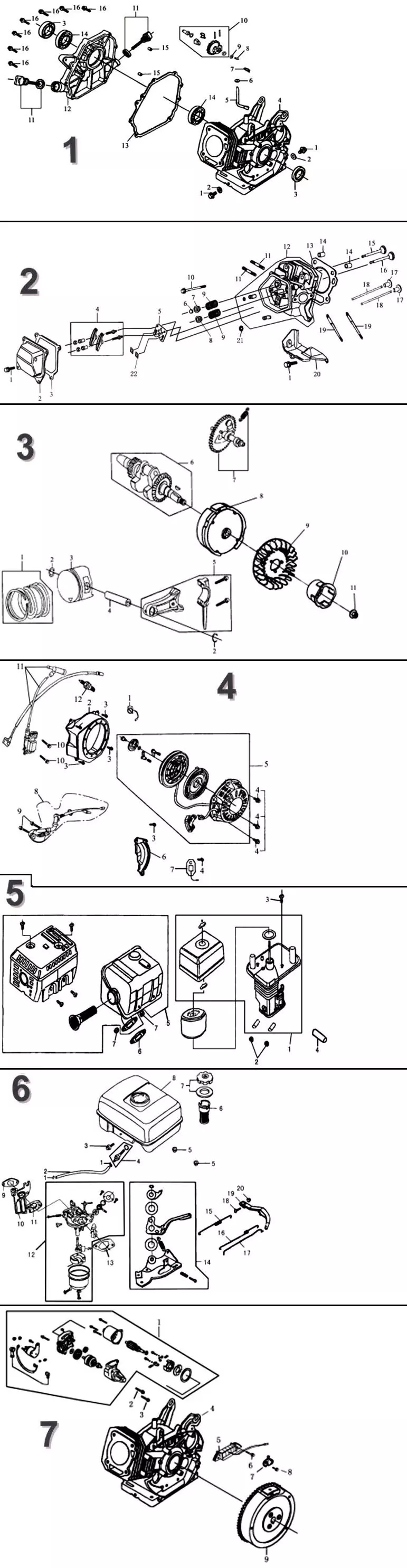

| П-п | Арт | Название |
|---|---|---|
| 1-1 | Drain plug | |
| 1-2 | Washer,drain plug | |
| 1-3 | Oil seal, crankshaft | |
| 1-4 | Crankcase | |
| 1-5 | Regulating sway bar | |
| 1-6 | Washer | |
| 1-7 | Split pin | |
| 1-8 | Regulating shaft | |
| 1-9 | Snap ring | |
| 1-10 | Driven gear assy | |
| 1-11 | Dipstick with seal | |
| 1-12 | Crankcase cover | |
| 1-13 | Gasket, crankcase | |
| 1-14 | Bearing 6205 | |
| 1-15 | Set pinΦ8×14 | |
| 1-16 | Bolt M8×33.5 | |
| 2-1 | Bolt M6×12 | |
| 2-2 | Cylinder head cover | |
| 2-3 | Gasket,cyl. head cover | |
| 2-4 | Valve rocket assy | |
| 2-5 | Push guide | |
| 2-6 | Cap | |
| 2-7 | Exhaust spring seat | |
| 2-8 | Intake spring seat | |
| 2-9 | Valve spring | |
| 2-10 | Bolt M8×60 | |
| 2-11 | Stud AM8×34 | |
| 2-12 | Cylinder head assy | |
| 2-13 | Cylinder head gasket | |
| 2-14 | Set pin | |
| 2-15 | Exhaust valve | |
| 2-16 | Intake valve | |
| 2-17 | Tappet | |
| 2-18 | Pusher | |
| 2-19 | Stud AM6×112 | |
| 2-20 | Lead wind cover | |
| 2-21 | Oil seal, pipe | |
| 2-22 | Nylon, lining | |
| 3-1 | Piston ring set | |
| 3-2 | Piston pin circlip | |
| 3-3 | piston | |
| 3-4 | Piston pin | |
| 3-5 | Connect rod assy | |
| 3-6 | Cranshaft assy | |
| 3-7 | Camshaft assy | |
| 3-8 | Flywheel | |
| 3-9 | Flywheel fan | |
| 3-10 | ||
| 3-11 | Nut M14×1.5 | |
| 4-1 | Engine switch | |
| 4-2 | Fan hood | |
| 4-3 | Bolt M6×12 | |
| 4-4 | Bolt M6×8 | |
| 4-5 | ||
| 4-6 | Shroad comp. | |
| 4-7 | Diode | |
| 4-8 | Oil sensor | |
| 4-9 | Bolt M6×14 | |
| 4-10 | Bolt M6×22 | |
| 4-11 | Ignition coil assy | |
| 4-12 | Spark plug F6TC | |
| 5-1 | Air cleaner assy | |
| 5-2 | Nut M6 | |
| 5-3 | Bolt M6×22 | |
| 5-4 | Air duck | |
| 5-5 | Exhaust muffler assy | |
| 5-6 | Exhaust gasket | |
| 5-7 | Nut M8 | |
| 5-8 | spring washer Φ8 | |
| 5-9 | washer Φ8 | |
| 6-1 | Pipe clamp | |
| 6-2 | Fuel pipe | |
| 6-3 | Bolt M6×28 | |
| 6-4 | Connector | |
| 6-5 | Nut M6 | |
| 6-6 | Filter cup | |
| 6-7 | Fuel tank cap | |
| 6-8 | Fuel tank | |
| 6-9 | Inlet gasket | |
| 6-10 | Connecting block | |
| 6-11 | Carburetor gasket | |
| 6-12 | Carburetor assy | |
| 6-13 | Gasket,air cleaner | |
| 6-14 | Regulating control assy | |
| 6-15 | Back spring | |
| 6-15 | Back spring | |
| 6-16 | Regulating spring | |
| 6-17 | Pulling rod | |
| 6-18 | Lock bolt | |
| 6-19 | Regulating arm | |
| 6-20 | Nut M6 | |
| 7-1 | Starting motor assy | |
| 7-2 | Bolt M6×28 | |
| 7-3 | Bolt M6×32 | |
| 7-4 | Crankcase | |
| 7-5 | Charge coil | |
| 7-6 | Bolt M6×35 | |
| 7-7 | Clamper, cord | |
| 7-8 | Bolt M6×12 | |
| 7-9 | Flywheel |
