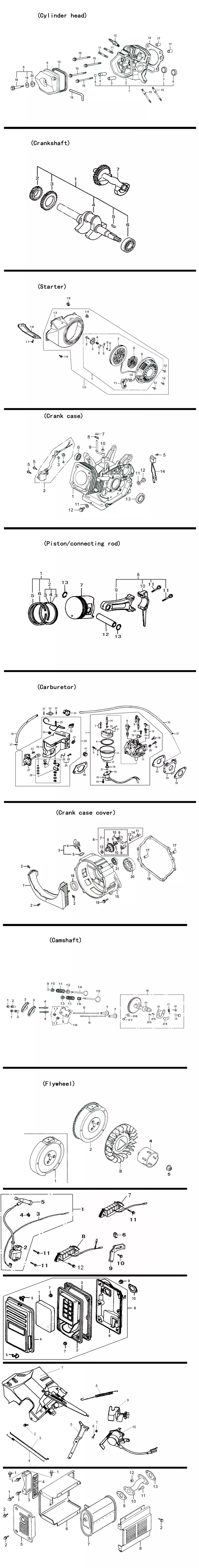

Двигатель Loncin LCW190
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HEAD COMP., CYLINDER |
| 3 |  |
BOLT COMP., HEAD COVER |
| 5 |  |
COVER COMP. HEAD |
| 6 |  |
GASKET,CYLINDER |
| 7 |  |
TUBE, BREATHER |
| 8 |  |
BOLT, STUD, INTAKE |
| 9 |  |
BOLT, STUD, EXHAUST |
| 10 |  |
BOLT, FLANGE, 10×80 |
| 11 |  |
SPARK PLUG |
| 12 |  |
PIN, DOWEL, 12×20 |
| 13 |  |
SEALING PAD, CYLINDER |
| 14 | SHROUD | |
| 15 | BOLT, FLANGE, 6×12 | |
| 1 | CRANKSHAFT COMP | |
| 2 | KEY, SPECIAL WOODRUFF | |
| 4 | WEIGHT, BALANCER | |
| 1 | RECOIL STARTER COMP. | |
| 2 | CLIP, WIRE HARNESS | |
| 4 | BOLT, FLANGE, M6×12 | |
| 5 | BOLT, 6×8 | |
| 6 | STARTER ASSY. | |
| 7 | COVER COMP., FAN | |
| 8 | ROPE, RECOIL STARTER | |
| 9 | KNOB , RECOIL STARTER | |
| 1 | CRANKCASE | |
| 2 | SWITCH ASSY., OIL LEVEL | |
| 3 | BOLT, FLANGE, 6×12 | |
| 4 | BEARING, RADIAL BALL, 6202 | |
| 5 | PIN, LOCK, 10MM | |
| 6 | WASHER, PLAIN,8×16×1.2 | |
| 7 | SHAFT, GOVERNOR ARM | |
| 8 | OIL SEAL, φ8×φ14×4 | |
| 9 | ALERT UNIT,OIL | |
| 10 | OIL SEAL, φ8×φ14×4 | |
| 11 | WASHER, DRAIN PLUG, 12MM | |
| 12 | BOLT, DRAIN PLUG | |
| 1 | RING SET, PISTON | |
| 2 | CLIP, PISTON PIN | |
| 3 | PISTON | |
| 4 | PIN, PISTON | |
| 5 | CONNECTING ROD ASSY. | |
| 1 | STAY ASSY., MANUAL CHOKE | |
| 2 | GROMMET, BREATHER TUBE | |
| 3 | CARBURETOR ASSY. | |
| 4 | PACKING, CARBURETOR | |
| 5 | INSULATOR, CARBURETOR | |
| 6 | PACKING, INTAKE | |
| 1 | COVER, DUST | |
| 2 | BOLT, FLANGE, 5×12 | |
| 3 | CAP COMP., OIL FILLER | |
| 4 | BOLT, FLANGE, 8×40 | |
| 5 | OIL SEAL, 35×52×7 | |
| 6 | CRANKCASE COVER | |
| 8 | BEARING, RADIAL BALL, 6207 | |
| 9 | BEARING, RADIAL BALL, 6202 | |
| 10 | GOVERNOR ASSY. | |
| 12 | PACKING, CASE COVER | |
| 13 | PIN, DOWEL, 8×12 | |
| 1、2、3、4 | ARM ASSY. | |
| 5 | PLATE, ASSY. | |
| 6 | PUSH ROD | |
| 7 | LIFTER, VALVE | |
| 8 | ROTATOR, VALVE | |
| 9 | VALVE LOCKER | |
| 10 | RETAINER, EX. VALVE SPRING | |
| 11 | SPRING, VALVE | |
| 12 | SPRING, VALVE | |
| 13、14 | VALVE KIT | |
| 15 | SEAL, VALVE STEM | |
| 16 | CAMSHAFT ASSY. | |
| 1 | FLYWHEEL COMP | |
| 3 | FAN COOLING | |
| 4 | PULLEY,STARTER | |
| 5 | NUT SPECIAL,16MM | |
| 1 | COIL ASSY . , IGNITION | |
| 5 | CAP ASSY.,NOISE SUPPRESSOR | |
| 6 | GROMMET,CORD | |
| 8 | Excitation Coil | |
| 10 | BOLT,FLANGE | |
| 11 | BOLT,FLANGE | |
| 12 | BOLT,FLANGE | |
| 1 | ELEMENT, AIR CLEANER | |
| 8 | AIR CLEANER | |
| 9 | NUT, FLANGE | |
| 10 | PACKING, AIR CLEANER | |
| 1 | CONTORL ASSY. | |
| 2 | BOLT, FLANGE | |
| 3 | ROD, GOVERNOR | |
| 4 | SPRING, GOVERNOR B | |
| 5 | ARM, GOVERNOR | |
| 6 | BOLT, GOVERNOR ARM | |
| 7 | NUT, FLANGE | |
| 8 | SPRING, GOVERNOR A | |
| 9 | SETTING,CABLE | |
| 10 | SOLENOID THROTTLE CONTROL COMP. | |
| 1 | BOLT, FLANGE | |
| 2 | BOLT, FLANGE | |
| 3 | STAY COMP., MUFFLER | |
| 4 | SEAL, PROTECTOR MUFFLER | |
| 5 | PROTECTOR, MUFFLER SIDE | |
| 6 | PROTECTOR COMP., MUFFLER INNER | |
| 7 | MUFFLER COMP. | |
| 8 | PROTECTOR COMP., MUFFLER OUTER | |
| 9 | GASKET, EX., PIPE | |
| 10 | PIPE, COMP., EX. | |
| 11 | BOLT, FLANGE | |
| 12 | NUT, HEX. | |
| 13 | GASKET, EX., PIPE |
