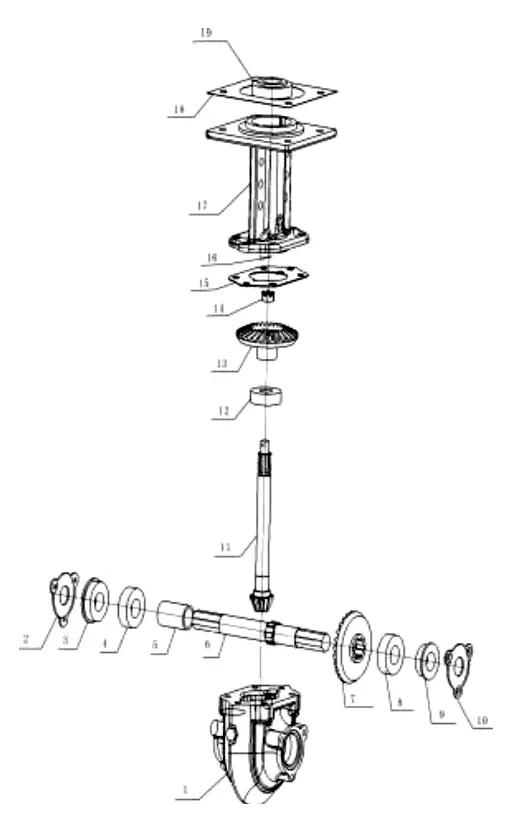

Transmission Box Assy
Transmission Box Assy
| П-п | Арт | Название |
|---|---|---|
| 1 | Bottom of Transmission Box | |
| 2 | Cover Board, Dustproof | |
| 3 | Seal ￠52x￠25 | |
| 4 | Bearing 6205 | |
| 5 | Bush, Hexangular Shaft | |
| 6 | Hexangular Shaft | |
| 7 | 9:26 Cone Bevel Gear | |
| 8 | Bearing 6205 | |
| 9 | Seal ￠41x￠25 | |
| 10 | Cover Board, Dustproof | |
| 11 | 9:26 Bevel Gear with Shaft | |
| 12 | Bearing 30304 | |
| 13 | 9:26 Cone Bevel Gear | |
| 14 | Nut with Slot M12 | |
| 15 | Paper Gasket | |
| 16 | Pin ￠2.0 | |
| 17 | Upper Transmission Box | |
| 18 | Paper Gasket | |
| 19 | Bearing 30206 |
