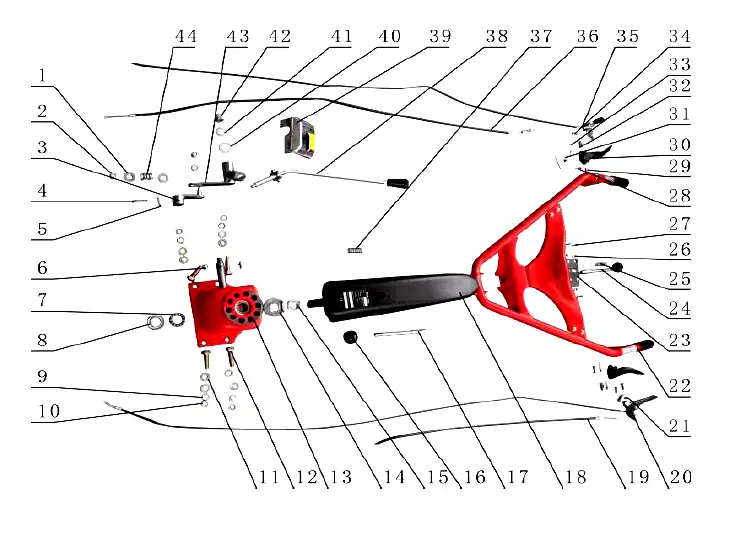

Крепления, Тросы
| П-п | Арт | Название |
|---|---|---|
| 1 | Flat Gasket Φ12 | |
| 2 | Nut M8 | |
| 3 | Lower Support Arm Welding Assy | |
| 4 | B Pin Φ12×30 | |
| 5 | β Cotter Pin Φ2 | |
| 6 | Hexagonal Flange Bolt M6×16 | |
| 7 | Ball Thrust Bearing 51104 | |
| 8 | Cushion | |
| 9 | Spring Washer Φ10 | |
| 10 | Hexagonal Nut M10 | |
| 11 | Flat Gasket Φ10 | |
| 12 | Hexagonal Bolt M10×35 | |
| 13 | Armrest Seat Welding Assy | |
| 14 | Big Gasket Φ20 | |
| 15 | Hexagonal Flange Nut M20×1.5 | |
| 16 | Rubber Handle | |
| 17 | Pulling Bar | |
| 18 | Support Arm Welding Assy | |
| 19 | Clutch Cable Assy | |
| 20 | Clutch Handle | |
| 21 | Lower Premenent Seat, Handle | |
| 22 | Handle Bar Assy | |
| 23 | Handle Bar Platen | |
| 24 | Pulling Bar | |
| 25 | Spring, Pulling Bar | |
| 26 | Flat Gasket Φ8 | |
| 27 | Hexagonal Flange Bolt M8×25 | |
| 28 | Pin Φ2 | |
| 29 | Pin Roll 10×20 | |
| 30 | Reverse Handle | |
| 31 | Lock-button of Reverse Gear | |
| 32 | B Pin Φ7×22 | |
| 33 | β Cotter Φ2 | |
| 34 | Screw M5×30 | |
| 35 | Throttle Switch Assy | |
| 36 | Reverse Cable Assy | |
| 37 | Spring, Shifting Bar | |
| 38 | Shifting Bar Assy | |
| 39 | Shifting Bar Cover | |
| 40 | Big Gasket Φ16 | |
| 41 | Flat GasketΦ8 | |
| 42 | Nut M12 | |
| 43 | Upper Shifting Support Arm | |
| 44 | ____________ |
