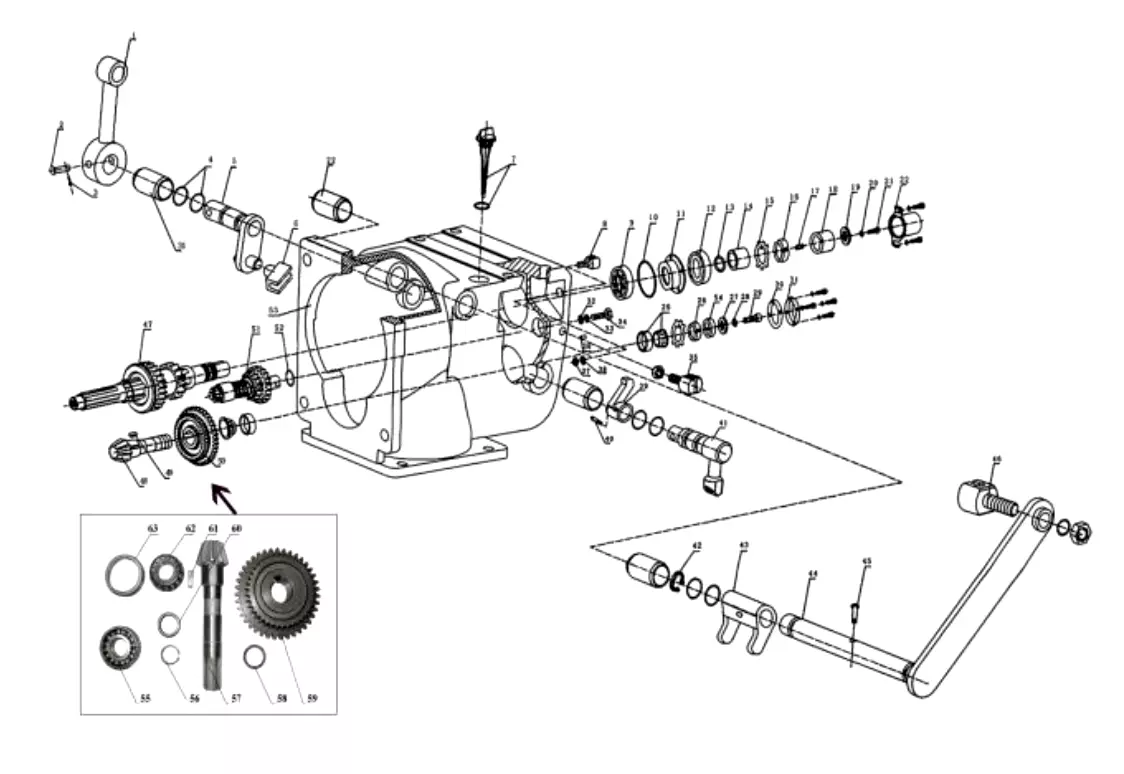

| П-п | Арт | Название |
|---|---|---|
| 1 | Joint assy of shift changing tube | |
| 2 | Shift changing pin | |
| 3 | Pin lock φ1.6×20 | |
| 4 | O-ring filter φ11.2 ×2.65 | |
| 5 | Joint assy of shift -change fork | |
| 6 | Shift changing block | |
| 7 | Cap oil filter (O-ring filter) | |
| 8 | Clutch wire seat | |
| 9 | Deep groove ball bearing 6204 | |
| 10 | O-ring filter φ45×1.8 | |
| 11 | Press cover | |
| 12 | Lip oil seal B25×40×7 | |
| 13 | O-ring filter φ17×1.8 | |
| 14 | Active axes tube | |
| 15 | Cushion 20 | |
| 16 | Round nut M20×1.5 | |
| 17 | Parallel key A6×6×20 | |
| 18 | Key tube | |
| 19 | Key tube gasket φ30×6.5×4 | |
| 20 | Spring gasket φ6 | |
| 21 | Inner six-angle bolt M6×20 | |
| 22 | Defend tube of active axes | |
| 23 | Reverse gear axes | |
| 24 | Shift changing tube | |
| 25 | Tapered roller bearing 30204 | |
| 26 | Key gasket | |
| 27 | Big gasket | |
| 28 | Spring gasket φ8 | |
| 29 | Inner six-angle bolt M8×25 | |
| 30 | Oil seal gasket | |
| 31 | Oil seal cover | |
| 32 |  |
Gasket of reverse gear φ22×10.5×4 |
| 33 |  |
Spring gasket φ10 |
| 34 |  |
Six-angle bolt M10×25 |
| 35 |  |
Wire seat of reverse gear |
| 36 |  |
Column pin A5×10 |
| 37 |  |
Six-angle bolt M8 |
| 38 |  |
Flat gasket φ8 |
| 39 |  |
Reverse gear shifting fork |
| 40 |  |
Column pin |
| 41 |  |
Joint assy reverse gear fork |
| 42 |  |
Elasticity cushion φ16 |
| 43 |  |
Clutch shifting fork |
| 44 |  |
Joint assy, clutch fork |
| 45 |  |
Fork pin |
| 46 |  |
Clutch rope seat |
| 47 |  |
Active axes asst. |
| 48 |  |
Screw axes |
| 49 |  |
Parallel key A8×7×22 |
| 50 |  |
Gear |
| 51 |  |
Reverse gear axes assy |
| 52 |  |
O-ring filter φ18×1.8 |
| 53 |  |
Gear-box |
| 54 |  |
Key gasket |
| 55 |  |
Deep groove ball bearing 6204 |
| 56 |  |
Elasticity cushion |
| 57 |  |
Screw axes |
| 58 |  |
gasket |
| 59 |  |
gear |
| 60 |  |
Active axes tube |
| 61 |  |
Parallel key |
| 62 |  |
Tapered roller bearing |
| 63 |  |
____________ |
