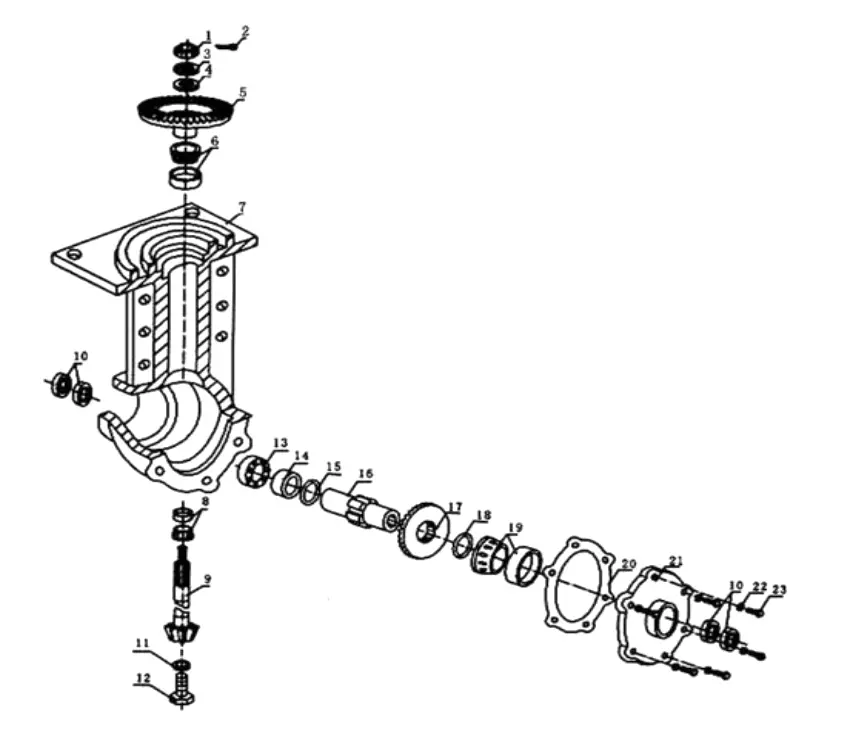

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Six-angle nut M12 |
| 2 |  |
Pin lock φ2.5×22 |
| 3 |  |
Spring gasket φ12 |
| 4 |  |
Flat gasket φ12 |
| 5 |  |
Driven gear |
| 6 |  |
Tapered roller bearing 30206 |
| 7 |  |
Stepped box |
| 8 |  |
Tapered roller bearing 30204 |
| 9 |  |
Gearaxes |
| 10 |  |
Lip oil seal B45×62×8 |
| 11 |  |
O-ring filter φ10×2.65 |
| 12 |  |
Drain oil bolt M12×12.5 |
| 13 |  |
Deep groove ball bearing 6009 |
| 14 |  |
Output axes tube |
| 15 |  |
Adjustment gasket φ60×φ45.5×0.1 |
| 16 |  |
Hexagonal output axes tube |
| 17 |  |
Gear |
| 18 |  |
Gasket φ60×φ45.5×0.5 |
| 19 |  |
Tapered roller bearing 32009 |
| 20 | Stepped box cushion | |
| 21 | Stepped box cover | |
| 22 | Spring gasket φ8 | |
| 23 | ____________ |
