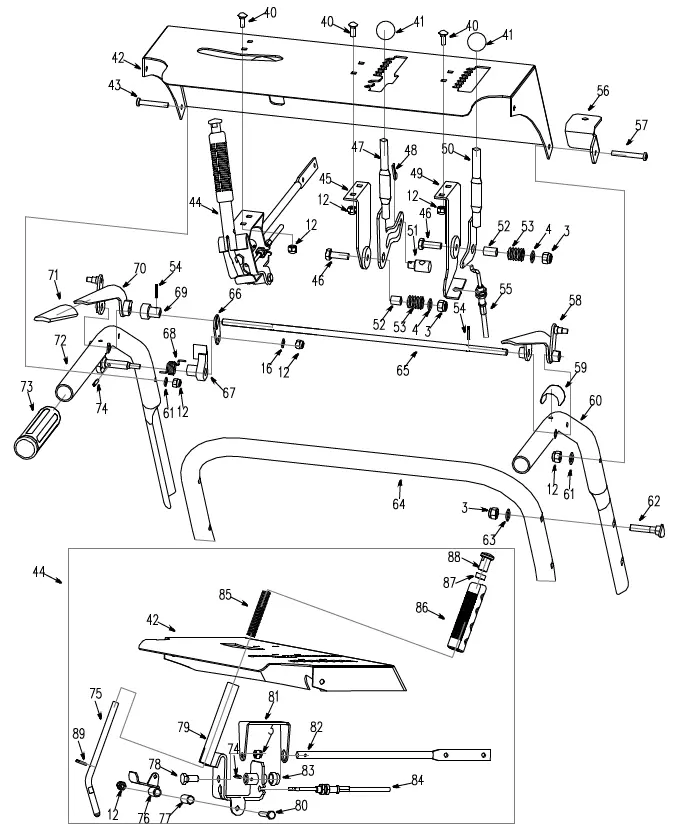

| П-п | Арт | Название |
|---|---|---|
| 3 | Locknut M8 | |
| 4 | Flat washer M8 | |
| 12 | Locknut M6 | |
| 16 | Flat washer M6 | |
| 40 | Hex hd bolt M6xl8 | |
| 41 | Knob M10x35 | |
| 42 | Panel weldment | |
| 43 | Bolt M6x40 | |
| 44 | Discharge chute control components | |
| 45 | Speed control mounting plate | |
| 46 | Bolt M8x45 | |
| 47 | Speed control rod weldment | |
| 48 | Hairpin | |
| 49 | Discharge chute mounting plate | |
| 50 | Discharge chute control rod | |
| 51 | Rod swivel | |
| 52 | Gear shift bushing | |
| 53 | Compression spring | |
| 54 | Spring pin 3.5x16 | |
| 55 | Throttle cable assembly | |
| 56 | Lamp socket | |
| 57 | Bolt M6x45 | |
| 58 | Drive lever - RH | |
| 59 | Drive lever grip | |
| 60 | Right handle weldment | |
| 61 | Washer M6 | |
| 62 | Socket-head bolt | |
| 63 | Washer M8 | |
| 64 | Lower handle | |
| 65 | Shaft | |
| 66 | Lock link | |
| 67 | Latch | |
| 68 | Torsion spring | |
| 69 | Drive lock bushing | |
| 70 | Drive lever - LH | |
| 71 | Drive lever grip | |
| 72 | Left handle weldment | |
| 73 | Handle grip | |
| 74 | Spring pin 4x18 | |
| 75 | Compression bar | |
| 76 | Rotation axis weldment | |
| 77 | Bushing | |
| 78 | Bolt | |
| 79 | Discharge chute control weldment | |
| 80 | Bolt M6x35 | |
| 81 | Discharge chute control mount bkt | |
| 82 | Discharge chute control cnect rod | |
| 83 | Teleflex | |
| 84 | Discharge chute control cable | |
| 85 | Return spring | |
| 86 | Handle grip | |
| 87 | Washer | |
| 88 | Button release | |
| 89 | Spring pin 3x16 |
