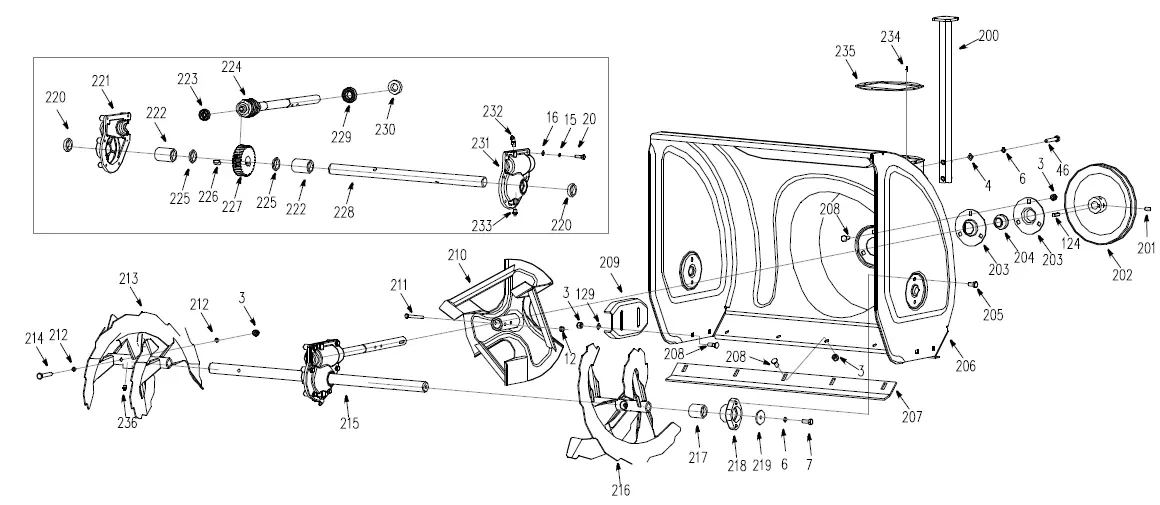

Шнек, Кожух шнека
| П-п | Арт | Название |
|---|---|---|
| 3 | Locknut M8 | |
| 4 | Flat washer M8 | |
| 6 | Split lock washer M8 | |
| 7 | Hex hd bolt M8x20 | |
| 12 | Locknut M6 | |
| 15 | Split lock washer M6 | |
| 16 | Flat washer M6 | |
| 20 | Hex hd bolt M6x20 | |
| 46 | Bolt M8x45 | |
| 124 | Key 6x25 | |
| 129 | Washer | |
| 200 | Bottom chute mounting bkt wld | |
| 201 | Screw M8xl6 | |
| 202 | Pulley | |
| 203 | Bearing housing | |
| 204 | Bearing 20x36x25 | |
| 205 | Hex hd bolt M8xl6 | |
| 206 | Front frame | |
| 207 | Scraper | |
| 208 | Hex hd bolt M8x20 | |
| 209 | Skid | |
| 210 | Impeller weldment | |
| 211 | Hex hd bolt M6x45 | |
| 212 | Bushing | |
| 213 | Auger weldment-RH | |
| 214 | Safety pin | |
| 215 | Gear case assembly | |
| 216 | Auger weldment-LH | |
| 217 | Bearing 22x28x25 | |
| 218 | Bearing housing | |
| 219 | Washer | |
| 220 | Oil seal | |
| 221 | Left bushing case | |
| 222 | Bushing 25x22x15 | |
| 223 | Bearing 16001-2RS | |
| 224 | Work drive shaft | |
| 225 | Washer | |
| 226 | Key 8x18 | |
| 227 | Worm gear | |
| 228 | Output shaft | |
| 229 | Bearing 61904-2RS | |
| 230 | Oil seal FB35x20x7 | |
| 231 | Right bushing case | |
| 232 | Grease fitting M8xlx45° | |
| 233 | Sealing bolt | |
| 234 | Blind rivet 3.2 x 12 | |
| 235 | Cushion | |
| 236 | Grease fitting M6 |
