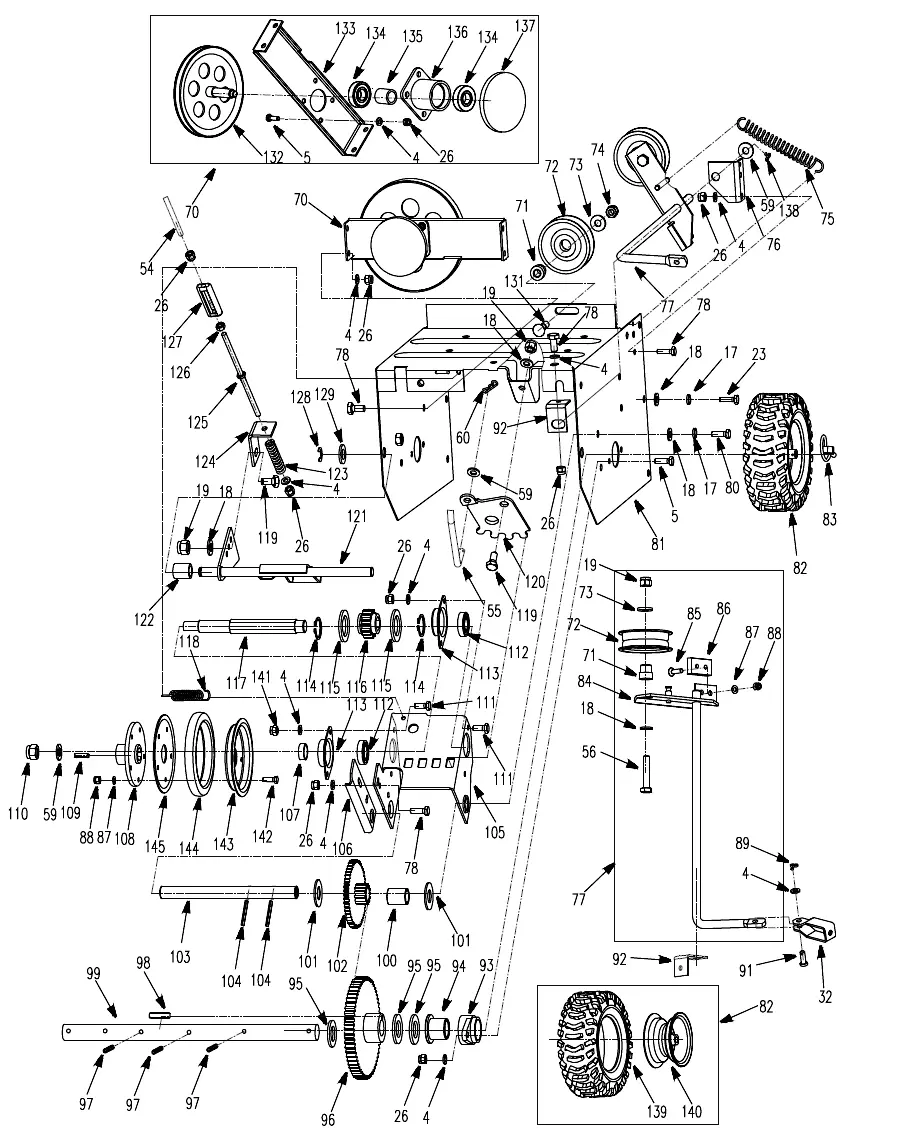

Система привода, Колеса
| П-п | Арт | Название |
|---|---|---|
| 4 |  |
Washer 6 |
| 5 |  |
Hex Hd. Bolt M6x20 |
| 17 |  |
Washer 8 |
| 18 |  |
Washer 8 |
| 19 |  |
Locknut M8 |
| 23 |  |
Bolt M8x20 |
| 26 |  |
Locknut M6 |
| 32 |  |
Clevis Weldment |
| 54 |  |
Left Hand Rod |
| 55 |  |
Shift Rod |
| 56 |  |
Hex Hd. Bolt M8x40 |
| 59 |  |
Washer 10 |
| 60 |  |
Hair Pin |
| 70 |  |
Friction Disk Assembly |
| 71 |  |
Bushing |
| 72 |  |
Idler Pulley Assembly |
| 73 |  |
Washer |
| 74 |  |
Locknut M8 |
| 75 |  |
Tension Spring 1 |
| 76 |  |
Connecting Plate 1 |
| 77 |  |
Auger Clutch Rod Assembly |
| 78 |  |
Hex Hd. Bolt M6xl8 |
| 80 |  |
Hex Hd. Bolt M8xl6 |
| 81 |  |
Inaction Frame |
| 82 |  |
RH Wheel And Tire |
| 83 |  |
Linch pin Assembly |
| 84 |  |
Auger Clutch Rod Weldment |
| 85 |  |
Screw M5x20 |
| 86 |  |
Brake Block |
| 87 |  |
Washer 5 |
| 88 |  |
Nut M5 |
| 89 |  |
Split Pin 2x12 |
| 91 |  |
Axis Pin |
| 92 |  |
Connecting Plate 2 |
| 93 |  |
Bearing Housing |
| 94 |  |
Spacer |
| 95 |  |
Washer 20 |
| 96 |  |
Internal Gear And Bushing A C** |
| 97 |  |
Pin 5x35 |
| 98 |  |
Key 6x28 |
| 99 |  |
Rear Axle |
| 100 |  |
Bearing 16x20x25 |
| 101 |  |
Washer-special |
| 102 |  |
Gear weldment |
| 103 |  |
Guiding Shaft |
| 104 |  |
Pin 4x32 |
| 105 |  |
Sliding Plate |
| 106 |  |
Deflector |
| 107 |  |
Bushing |
| 108 | Friction Wheel | |
| 109 | Square Key 5x18 | |
| 110 | Locknut M10 | |
| 111 | Hex Hd. Bolt M6xl2 | |
| 112 | Bearing 99502-2RS | |
| 113 | Bearing Housing | |
| 114 | Ring 25 | |
| 115 | Washer | |
| 116 | Pinion | |
| 117 | Friction Wheel Shaft | |
| 118 | Tension Spring 2 | |
| 119 | Bolt | |
| 120 | Adjust Plate | |
| 121 | Inaction Arm ASM | |
| 122 | Spacer | |
| 123 | Spring | |
| 124 | Connecting Plate 3 | |
| 125 | Rod Inaction | |
| 126 | Nut M60HF0 | |
| 127 | Screw Buckle KCCD6-M | |
| 128 | Ring 9 | |
| 129 | Washer 12 | |
| 131 | Square Bolt M8x35 | |
| 132 | Belt Pulley Weldment | |
| 133 | Front Frame | |
| 134 | Bearing 6203-2RS | |
| 135 | Bushing | |
| 136 | Bearing Housing | |
| 137 | Friction Pulley | |
| 138 | Split Pin 2.5x18 | |
| 139 | Tire | |
| 140 | Rim | |
| 141 | Nut M6 | |
| 142 | Bolt M5xl6 | |
| 143 | Thick Splint | |
| 144 | Friction Plate | |
| 145 | Thin Splint |
