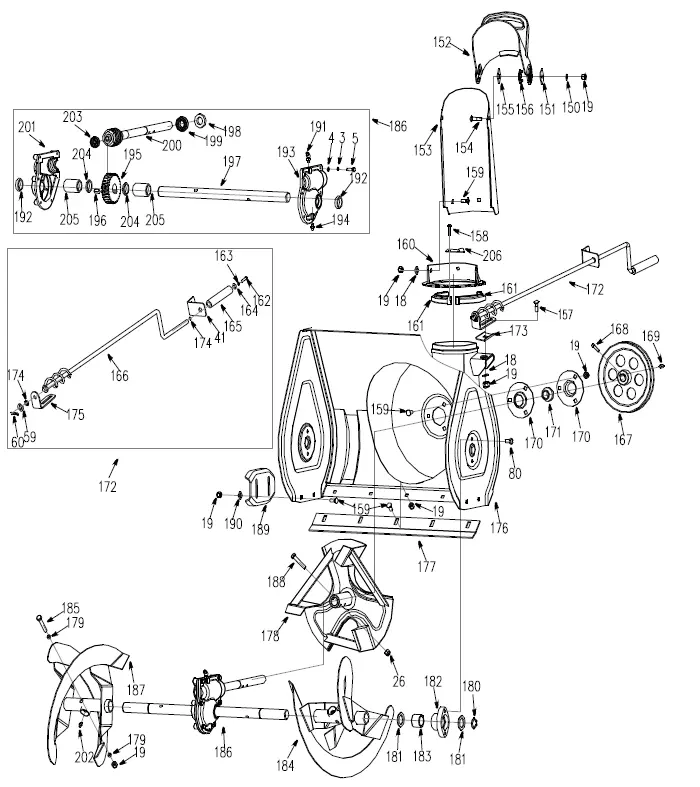

Шнек, Кожух шнека, Желоб
| П-п | Арт | Название |
|---|---|---|
| 3 | Washer 6 | |
| 4 | Washer 6 | |
| 5 | Hex Hd. Bolt M6x20 | |
| 18 | Washer 8 | |
| 19 | Nut M8 | |
| 26 | Nut M6 | |
| 41 | Bracket | |
| 59 | Washer 10 | |
| 60 | Bolt | |
| 80 | Hex Hd. Bolt M8xl6 | |
| 150 | Belleville spring A16-1 | |
| 151 | Washer | |
| 152 | Chute Deflector | |
| 153 | Chute | |
| 154 | Hex Hd. Bolt M8x30 | |
| 155 | Washer | |
| 157 | Hex Hd. Bolt M8x25 | |
| 156 | Friction Plate | |
| 158 | Self-tapping Screw 4.8x22 | |
| 159 | Hex Hd. Bolt M8x20 | |
| 160 | Ring-chute | |
| 161 | Ring-diute, Retainer | |
| 162 | Screw M5xl0 | |
| 163 | Washer 5 | |
| 164 | Washer 5 | |
| 165 | Sheath | |
| 166 | Rod-control, Chute | |
| 167 | Pulley Weldment | |
| 168 | Screw M6x20 | |
| 169 | Key 6x20 | |
| 170 | Bearing Housing | |
| 171 | Bearing 20x36x25 | |
| 172 | Discharge Chute Control | |
| 173 | Plate | |
| 174 | Bearing | |
| 175 | Worm Bracket | |
| 176 | Front Frame | |
| 177 | Scraper | |
| 178 | Impeller Weldment | |
| 179 | Spacer | |
| 180 | Ring 22 | |
| 181 | Washer | |
| 182 | Bearing Housing | |
| 183 | Bearing 22x28x25 | |
| 184 | Auger-LH Weldment | |
| 185 | Safety Pin | |
| 186 | Gear Case Assembly | |
| 187 | Auger-RH Weldment | |
| 188 | Hex Hd. Bolt M6x45 | |
| 189 | Skid | |
| 190 | Washer | |
| 191 | Grease Fitting M8xlx45 | |
| 192 | Oil Seal | |
| 193 | Right Bushing Case | |
| 194 | Seal Bolt | |
| 195 | Worm Gear | |
| 196 | Key 8x18 | |
| 197 | Output Shaft | |
| 198 | Oil Seal FB35x20x7 | |
| 199 | Bearing 61904-2RS | |
| 200 | Import Shaft | |
| 201 | Left Bushing Case | |
| 202 | Grease Fitting M6 | |
| 203 | Bearing 16001-2RS | |
| 204 | Washer | |
| 205 | Bearing 25x22x15 | |
| 206 | Clap Board |
