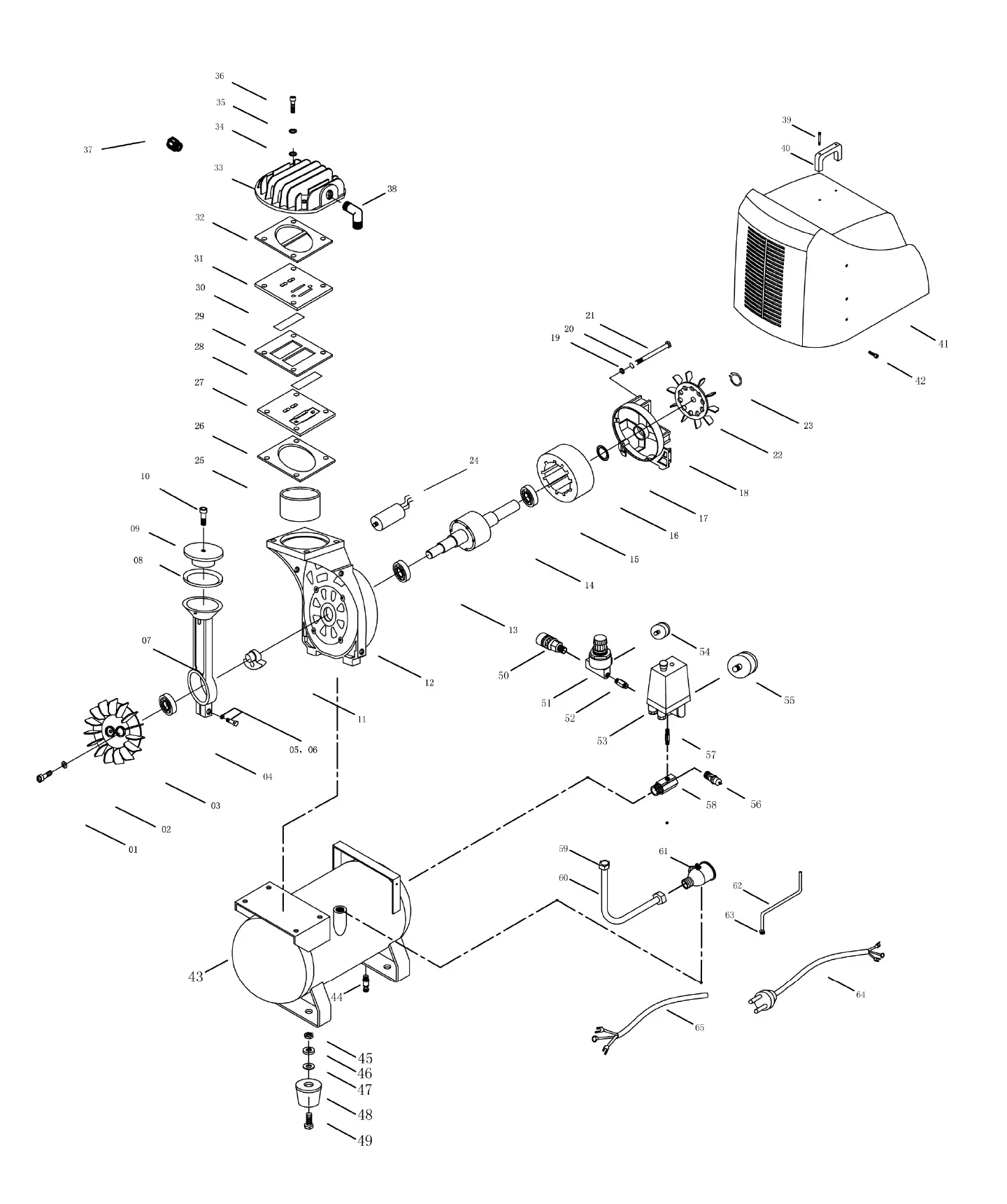

FREE AIR (29838345)
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREW | |
| 2 | FLAT WASHER | |
| 3 | FAN | |
| 4 | BALL BEARING | |
| 5 | SCREW | |
| 6 | NUT | |
| 7 | CONNECTING ROD | |
| 8 | SEAL CUP | |
| 9 | PRESSPLATE | |
| 10 | SCREW | |
| 11 | CRANKSHAFT | |
| 12 | CRANKCASE | |
| 13 | BALL BEARING | |
| 14 | ROTOR | |
| 15 | BALL BEARING | |
| 16 | STATOR | |
| 17 | WAVE GASKET | |
| 18 | REAR COVER | |
| 19 | FLAT WASHER | |
| 20 | SPRING WASHER | |
| 21 | BOLT | |
| 22 | FAN | |
| 23 | PIN CLIP | |
| 24 | CAPACITOR | |
| 25 | CYLINDER | |
| 26 | VALVE PLATE GASKET | |
| 27 | VALVE PLATE | |
| 28 | VALVE REED | |
| 29 | ALUMINUM GASKET | |
| 30 | VALVE REED | |
| 31 | VALVE PLATE | |
| 32 | HEAD COVER GASKET | |
| 33 | HEAD COVER | |
| 34 | SPRING WASHER | |
| 35 | FLAT WASHER | |
| 36 | BOLT | |
| 37 | AIR FILTER | |
| 38 | ELBOW CONNECTOR | |
| 39 | SCREW | |
| 40 | HANDLE | |
| 41 | CASING | |
| 42 | SCREW | |
| 43 | TANK | |
| 44 | DRAIN VALVE | |
| 45 | NUT | |
| 46 | SPRING WASHER | |
| 47 | FLAT WASHER | |
| 48 | FOOT | |
| 49 | SCREW | |
| 50 | QUICK COUPLER | |
| 51 | REGULATOR | |
| 52 | CONNECTOR | |
| 53 | PRESSURE SWITCH | |
| 54 | PRESSURE GAUGE (40) | |
| 55 | PRESSURE GAUGE (50) | |
| 56 | SAFETY VALVE | |
| 57 | CONNECTOR | |
| 58 | VENT CONNECTOR | |
| 59 | NUT | |
| 60 | EXHAUST PIPE | |
| 61 | CHECK VALVE | |
| 62 | UNLOADING PIPE | |
| 63 | NUT | |
| 64 | POWER CORD | |
| 65 | MOTOR POWER CORD |
