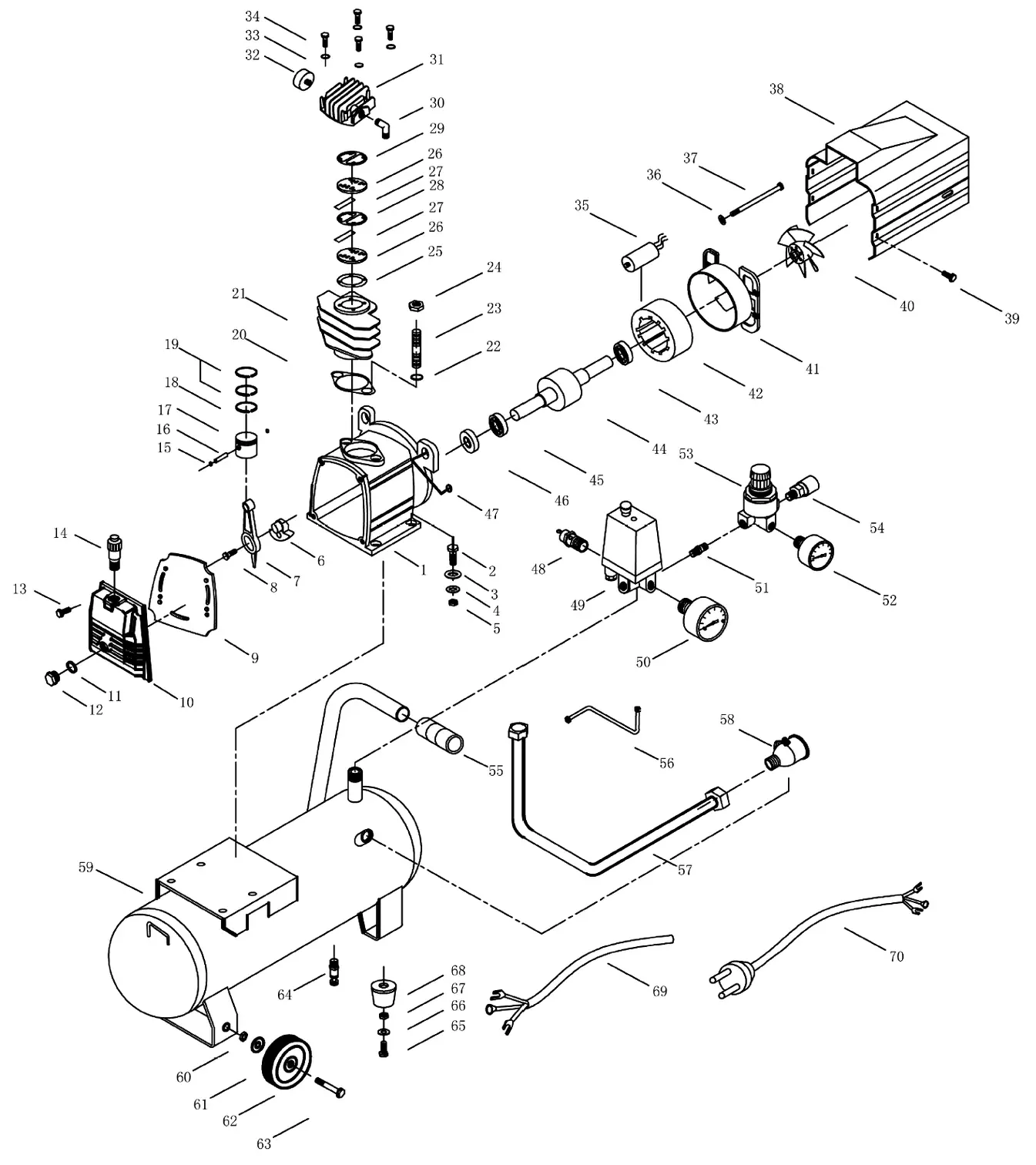

DC 320/50CM2
DC 320/50CM2
| П-п | Арт | Название |
|---|---|---|
| 1 | CRANKCASE | |
| 2 | HEX SCREW | |
| 3 | FLAT WASHER | |
| 4 | SPRING WASHER | |
| 5 | NUT | |
| 6 | CRANKSHAFT | |
| 7 | CONNECTING ROD | |
| 8 | SCREW | |
| 9 | OILSEAL GASKET | |
| 10 | FRONT COVER | |
| 11 | OIL SIGHTGLASS SEAL | |
| 12 | OIL SIGHTGLASS | |
| 13 | BOLT | |
| 14 | BREATHER | |
| 15 | RETAINING RING | |
| 16 | PISTON PIN | |
| 17 | PISTON | |
| 18 | OIL RING | |
| 19 | COMPRESSION RING | |
| 20 | CYLINDER GASKET | |
| 21 | CYLINDER | |
| 22 | SPRING WASHER | |
| 23 | STUD BOLT | |
| 24 | NUT | |
| 25 | VALVE PLATE GASKET | |
| 26 | VALVE PLATE | |
| 27 | VALVE REED | |
| 28 | ALUMINUM GASKET | |
| 29 | CYLINDER HEAD GASKET | |
| 30 | ELBOW | |
| 31 | CYLINDER HEAD | |
| 32 | AIR FILTER | |
| 33 |  |
SPRING WASHER |
| 34 |  |
HEX BOLT |
| 35 |  |
CAPACITOR |
| 36 |  |
FLAT WASHER |
| 37 |  |
LONG BOLT |
| 38 |  |
SHROUD |
| 39 |  |
BOLT |
| 40 |  |
FAN |
| 41 |  |
BEARING SEAT |
| 42 |  |
STATOR |
| 43 |  |
BALL BEARING |
| 44 |  |
ROTOR |
| 45 |  |
BALL BEARING |
| 46 |  |
OIL SEAL |
| 47 |  |
NUT |
| 48 |  |
SAFETY VALVE |
| 49 |  |
PRESSURE SWITCH |
| 50 |  |
PRESSURE GAUGE (50 MM) |
| 51 |  |
CONNECTOR |
| 52 |  |
PRESSURE GAUGE (40 MM) |
| 53 |  |
REGULATOR |
| 54 |  |
QUICK CONNECTOR |
| 55 |  |
HANDLE GRIP |
| 56 |  |
TUBE |
| 57 |  |
EXHAUSTING PIPE |
| 58 |  |
CHECK VALVE |
| 59 |  |
TANK |
| 60 |  |
NUT |
| 61 |  |
FLAT WASHER |
| 62 |  |
WHEEL |
| 63 |  |
BOLT |
| 64 |  |
DRAIN VALVE |
| 65 |  |
BOLT |
| 66 |  |
FLAT WASHER |
| 67 |  |
NUT |
| 68 |  |
FOOT |
| 69 |  |
MOTOR POWER CORD |
| 70 |  |
POWER CORD |
