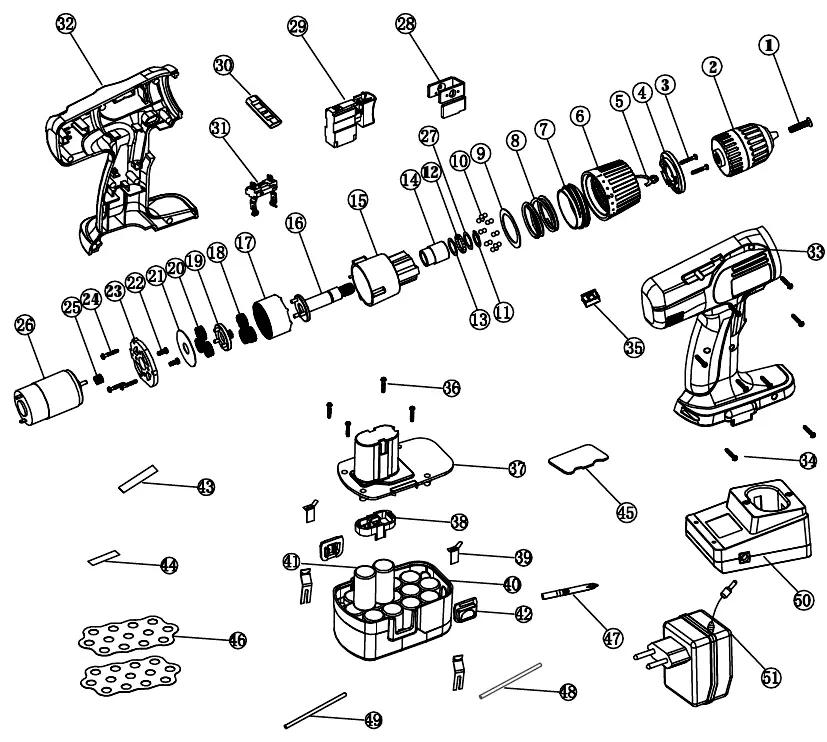

HCD-12N-7
HCD-12N-7
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
left-handed thread Screvnail |
| 2 |  |
Drill Chock |
| 3 |  |
tapping screw |
| 4 |  |
Tightly-compress Cover Board |
| 5 |  |
Shrapnel |
| 6 |  |
Torque Setting Ring |
| 7 |  |
Plastic Pivot Circle |
| 8 |  |
compression spring |
| 9 |  |
Washer |
| 10 |  |
04 Steel Ball |
| 11 |  |
Circlip |
| 12 |  |
03 Steel Ball |
| 13 |  |
Washer |
| 14 |  |
Shaft Housing |
| 15 |  |
Gearbox Cover |
| 16 |  |
Shaft |
| 17 |  |
Inner-gear Ring |
| 18 |  |
Powder Metallurgical Gear |
| 19 |  |
Planet Wheel |
| 20 |  |
Plastic Gear |
| 21 |  |
Vasher |
| 22 |  |
Screwnail |
| 23 |  |
Gearbox cover |
| 24 |  |
tapping screw |
| 25 |  |
D.C.Motor Gear |
| 26 |  |
D.C.Motor |
| 27 |  |
Washer |
| 28 |  |
Scatter-Heat Block |
| 29 |  |
Switch |
| 30 |  |
Reversing Bar |
| 31 |  |
Elastic Clip |
| 32 |  |
Enclosure(lower) |
| 33 |  |
Enclosure(upper) |
| 34 | tapping screw | |
| 35 | Metal Insert | |
| 36 | tapping screw | |
| 37 | Battery Pack upper-shell | |
| 38 | Electrode Tip Holdei | |
| 39 | Electrode Connecting Sheet | |
| 40 | Battery Pack Lotei^shell | |
| 41 | Battery | |
| 42 | Locking Knob | |
| 43 | Connector pin | |
| 44 | Connector pin | |
| 45 | Pressboard | |
| 46 | Fish paper | |
| 47 | Screw bit | |
| 48 | Red Wire | |
| 49 | black wire | |
| 50 | charge stand | |
| 51 | transformer |
