SPRINT-CAR 640/

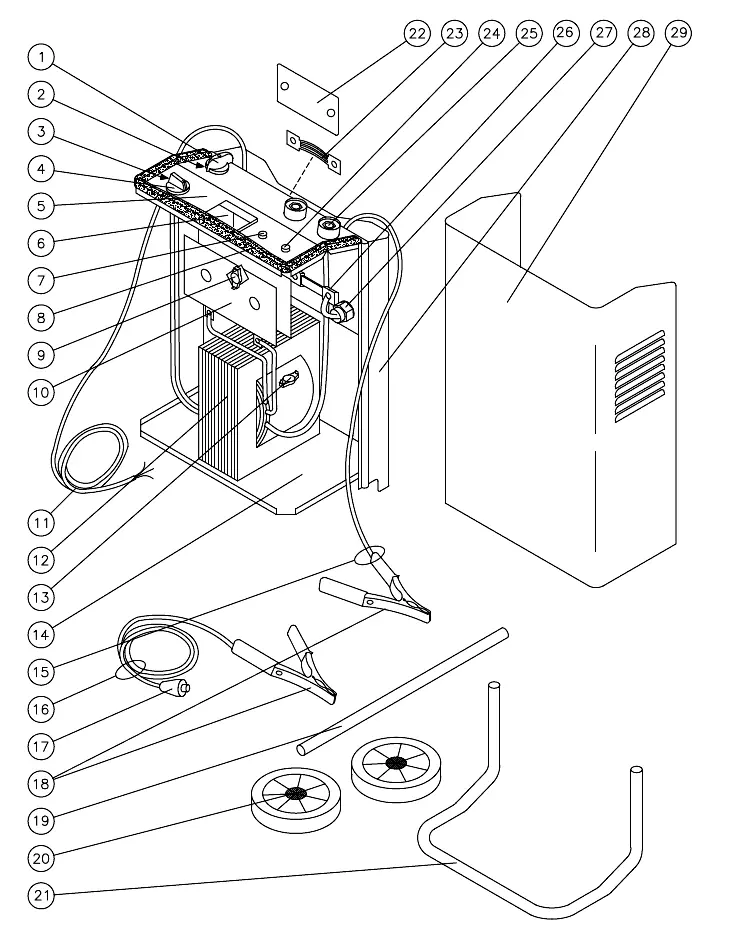

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | SWITCH KNOB D.34 | |
| 2 | SWITCH 12ASCH 9387 | |
| 3 | TIMER 16A250V | |
| 4 | TIMER KNOB | |
| 5 | PLATE SPRINT CAR 640 | |
| 6 | AMMETER 50/400A MOD.RC-8O | |
| 7 | ORANGE PILOT-LAMP 220V+RULES L= 700 | |
| 8 | FRONT FRAME | |
| 9 | COMPLETE THERMOSTAT 1000 + SUPPORT | |
| 10 | RECTIFIER PMS 20/2/2 CB T.N. | |
| 11 |  |
INPUT CABLE 3X2,5 M 2,5 WITH SHUKO PLUG |
| 12 |  |
TRANSFORMER |
| 13 |  |
THERMOSTAT VEBE 1000 SUPPORT |
| 14 |  |
LOWER PANEL |
| 15 |  |
BLACK CABLE 25 SQMM MT.2,5 W/CLAMP120 |
| 16 |  |
RED CABLE 25 SQMM MT.2,5 C. 120/DN25 |
| 17 |  |
DINSE PLUG 25SQMM CX20 |
| 18 |  |
CLAMPS 120A FOR BATTERY CHARG.RED-BLACK |
| 19 |  |
WHEELS-AXLE D.20 L=488 |
| 20 |  |
WHEEL D.l 75 RUBBER HOLE D.20 |
| 21 |  |
CARRY HANDLE AUTOSTAR 700 NERO |
| 22 |  |
BIG FUSE BOX COVER DIM.60X175 |
| 23 |  |
FUSE 300A |
| 24 |  |
GREEN PILOT-LAMP 220V+RULES L=600 |
| 25 |  |
FEMALE DINSE PLUG 25SQMM CX30 |
| 26 |  |
AMPEREROMETRIC SHUNT 100A60MW |
| 27 |  |
CABLE CLAMP D.10 + SCREW |
| 28 |  |
FRONT PANEL AUTOSTAR 700 ROSSO |
| 29 |  |
UPPER PANEL AUTOSTAR 700 ROSSO |
