1100 KH - Max (04284001)

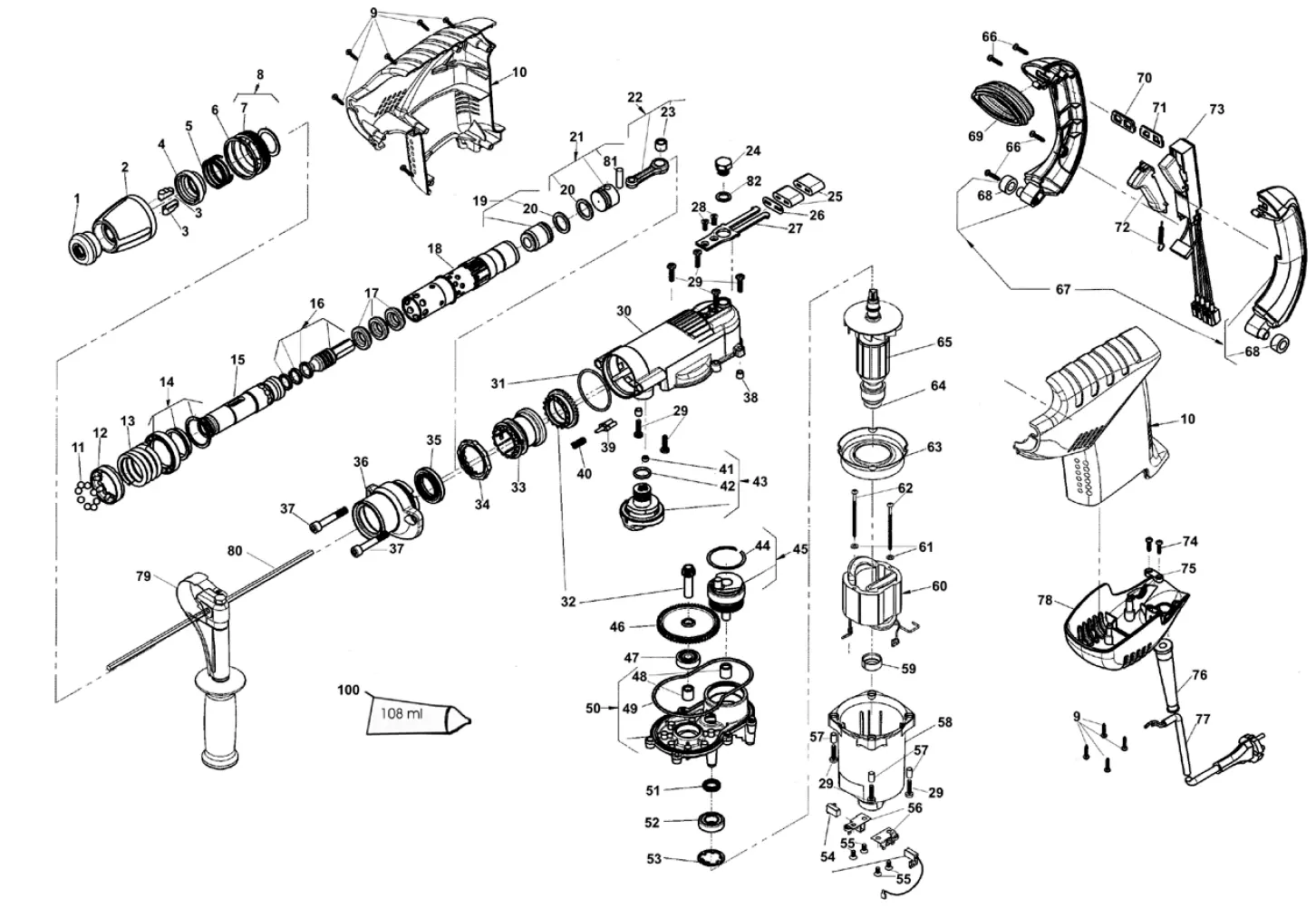

1100 KH - Max (04284001)
| П-п | Арт | Название |
|---|---|---|
| 1 | DUST CAP | |
| 2 | SLEEVE | |
| 3 | SPRING BOLT | |
| 4 | BLOCKING RING | |
| 5 | SPRING | |
| 6 | DUST GUARD RING | |
| 7 | SEALING | |
| 8 | WASHER | |
| 9 | SCREW 40 X 30 | |
| 10 | CASING | |
| 11 | STEEL BALL | |
| 12 | COUPLING RING | |
| 13 | PRESSURE SPRING | |
| 14 | SLIDE BEARING CPL. | |
| 15 | TOOL FITTING | |
| 16 | HEADER | |
| 17 | DAMPING RING | |
| 18 | CYLINDER | |
| 19 | HEADER CPL. | |
| 20 | ORING | |
| 21 | PISTON | |
| 22 | PISTON ROD | |
| 23 | NEEDLE BUSH | |
| 24 | MAGNET RING | |
| 25 | BUFFER PART | |
| 26 | SUPPORTING DISC | |
| 27 | CARRIER | |
| 28 | SCREW | |
| 29 | SCREW M5 X 20 | |
| 30 | GEAR CASING | |
| 31 | O RING | |
| 32 | ANGLE DRIVE | |
| 33 | SWITCHING PIPE | |
| 34 | SWITCHING RING | |
| 35 | SHAFT SEAL | |
| 36 | GEAR CASING | |
| 37 | SCREW M8X50 | |
| 38 | CENTERING SLEEVE | |
| 39 | SLIDE | |
| 40 | PRESSURE SPRING | |
| 41 | SWITCHING ROLLER | |
| 42 | ORING | |
| 43 | SWITCHING KNOB | |
| 44 | SNAP RING | |
| 45 | CRANKSHAFT ASSEMBLY | |
| 46 | TRANSMISSION WHEEL | |
| 47 | BALL BEARING | |
| 48 | NEEDLE BUSH | |
| 49 | O RING | |
| 50 | GEAR FLANGE CPL. | |
| 51 | SHAFT SEAL | |
| 52 | BALL BEARING 6002 | |
| 53 | RETAINING RING | |
| 54 | CHARBON BRUSH SET | |
| 55 | SCREW M5 X 10 | |
| 56 | CARBON BRUSH HOLDER | |
| 57 | DISTANCE BUSHING | |
| 58 | MOTOR CASING | |
| 59 | RUBBER BEARING BUSHING | |
| 60 | STATOR | |
| 61 | WASHER | |
| 62 | SCREW 4 X 70 | |
| 63 | AIR GUIDE | |
| 64 | BALL BEARING | |
| 65 | ARMATURE + BALL BEARING B | |
| 66 | SCREW 40X20 | |
| 67 | HANDLE CASING CPL. | |
| 68 | HANDLE BEARING | |
| 69 | DAMPING PART | |
| 70 | POSITION STOP | |
| 71 | POSITION STOP | |
| 72 | SWITCH ON PUSHER | |
| 73 | SWITCH | |
| 74 | SCREW 40X16 | |
| 75 | CORD CLAMP | |
| 76 | RUBBER BUSHING | |
| 77 | POWERSUPPLY CORD | |
| 78 | CASING COVER | |
| 79 | HANDLE | |
| 80 | DEPT STOP | |
| 81 | BEARING BOLT | |
| 82 | OBTURATING RING | |
| 100 | OILFILLING |
