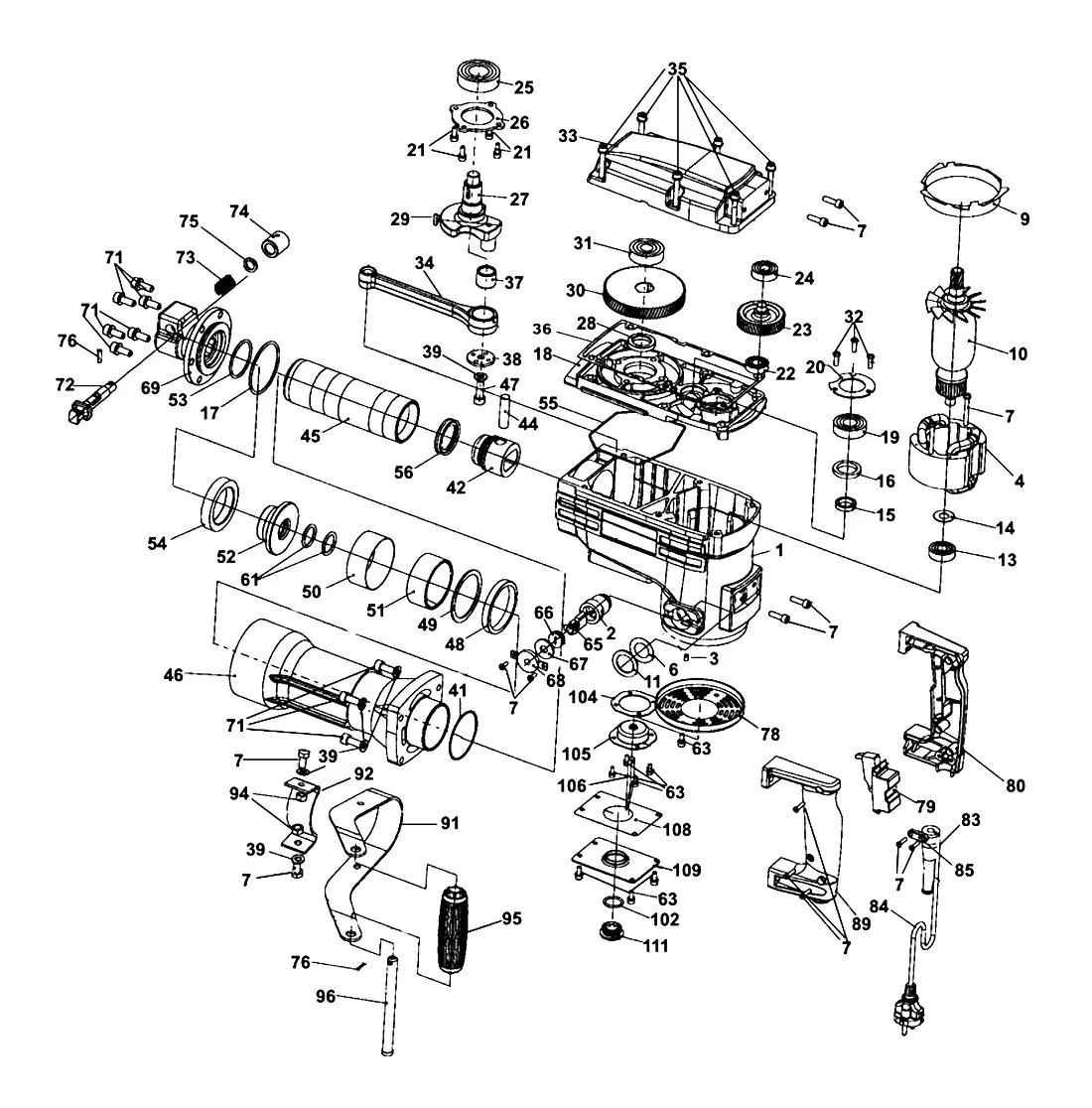

1300 ABH (04283902)
1300 ABH (04283902)
| П-п | Арт | Название |
|---|---|---|
| 1 | CASING | |
| 2 | BRUSH HOLDER | |
| 3 | SCREW M5X8 | |
| 4 | STATOR | |
| 6 | RUBBER WASHER | |
| 7 | SET SCREWS | |
| 9 | AIR GUIDE | |
| 10 | ARMATURE | |
| 11 | WASHER | |
| 13 | BALL BEARING | |
| 14 | BEARING WASHER | |
| 15 | DISTANCE RING | |
| 16 | FELT RING | |
| 17 | O-RING | |
| 18 | BEARING COVER | |
| 19 | BALL BEARING | |
| 20 | BEARING COVER | |
| 21 | SCREW M5X16 | |
| 22 | BALL BEARING | |
| 23 | GEAR WHEEL | |
| 24 | KUGELLAGER | |
| 25 | BALL BEARING | |
| 26 | BEARING COVER | |
| 27 | CRANKSHAFT | |
| 28 | DISTANCE RING | |
| 29 | FEATHER KEY | |
| 30 | GEAR WHEEL | |
| 31 | BALL BEARING | |
| 32 | SCREW M5 X 16 | |
| 33 | GEAR COVER | |
| 34 | CONNECTING ROD | |
| 35 | SCREW M6X45 | |
| 36 | SEALING | |
| 37 | NEEDLE BEARING | |
| 38 | CRANK WASHER | |
| 39 | SPRING WASHER | |
| 41 | O-RING | |
| 42 | PISTON | |
| 44 | BEARING BOLT | |
| 45 | CYLINDER | |
| 46 | ZYLINDERHEAD | |
| 47 | SCREW M8 X 35 | |
| 48 | DAMPING- RING | |
| 49 | LOCK SLEEVE | |
| 50 | LOCK SLEEVE | |
| 51 | FASTENER | |
| 52 | CRANK SLEEVE | |
| 53 | O- RING | |
| 54 | DAMPING- RING | |
| 55 | SEALING | |
| 56 | O-RING | |
| 61 | O -RING | |
| 63 | SET SCREWS | |
| 65 | CARBON BRUSH | |
| 66 | BRUSH CAP | |
| 67 | CAP | |
| 68 | CAP COVER | |
| 69 | FRONT COVER | |
| 71 | SCREW M8 X 35 | |
| 72 | STOPPER LEVER | |
| 73 | SPRING | |
| 74 | BUSH | |
| 75 | WASHER | |
| 76 | STOPPER PIN | |
| 78 | COVER | |
| 79 | SWITCH | |
| 80 | HANDLE PART A | |
| 83 | RUBBER BUSHING | |
| 84 | POWER-SUPPLY CORD | |
| 85 | STRAIN RELIEF | |
| 89 | HANDLE PART B | |
| 91 | FASTENING BOLT | |
| 92 | FASTENER | |
| 94 | NUT M8 | |
| 95 | HANDLE | |
| 96 | HANDLE SHAFT | |
| 100 | OILFILLING | |
| 102 | O- RING | |
| 104 | SPACER | |
| 105 | FASTENING BOLT | |
| 106 | FELT SEALING | |
| 108 | SEALING | |
| 109 | COVER PLATE | |
| 111 | OIL SIGHT GLASS |
