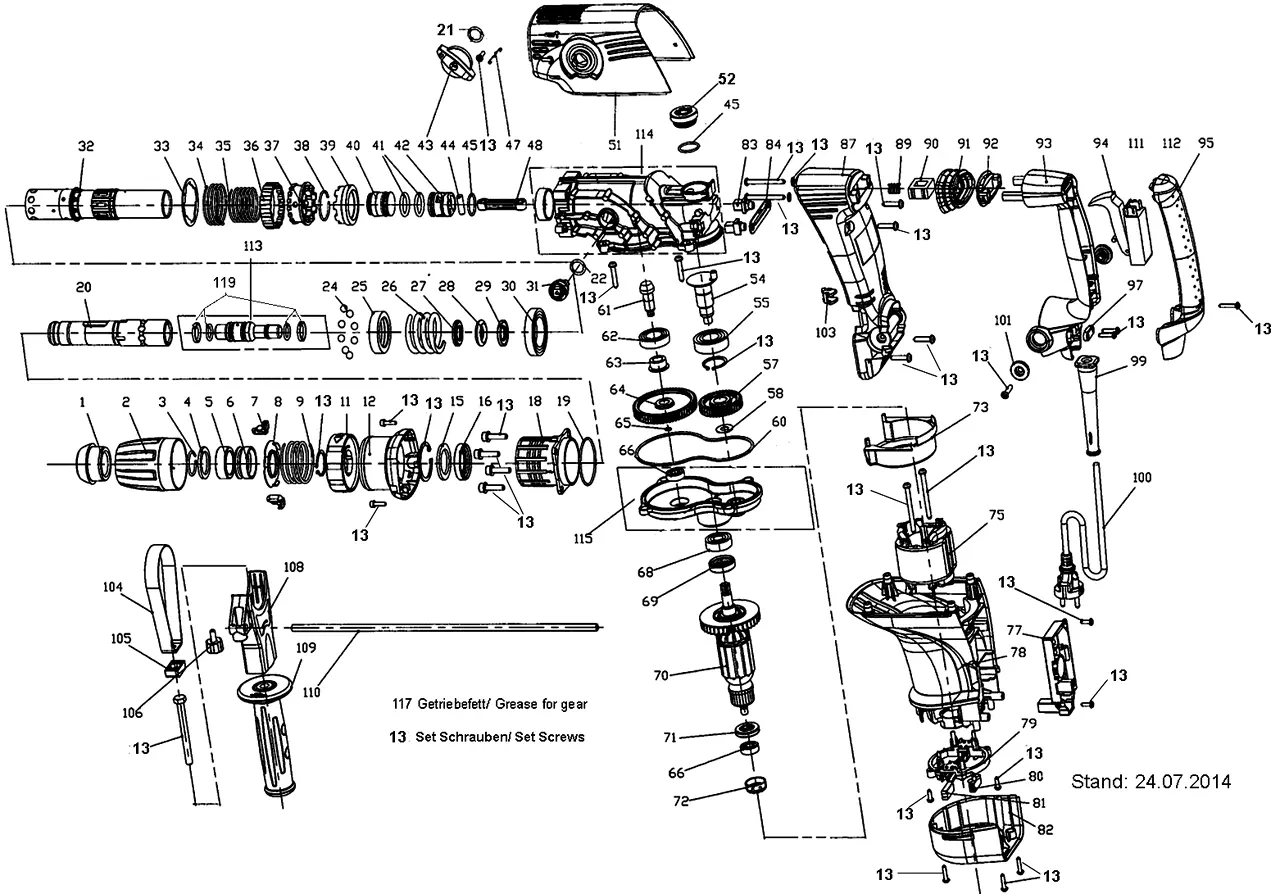

1100 BMH-max (04284601)
1100 BMH-max (04284601)
| П-п | Арт | Название |
|---|---|---|
| 1 | PROTECTIVE CAP | |
| 2 | ROTATING SLEEVE | |
| 3 | RETAINING RING | |
| 4 | SUPPORTING DISC | |
| 5 | SEALING | |
| 6 | RETAINING RING | |
| 7 | LOCKING PART | |
| 8 | SPRING HOLDER | |
| 9 | LOCKING SPRING | |
| 11 | GUIDING BUSHING | |
| 12 | COVER | |
| 13 | SCREW SET | |
| 15 | JOINT RING | |
| 16 | OIL SEAL | |
| 17 | SCREW M6x25 | |
| 18 | ZYLINDER FLANGE | |
| 19 | O- RING | |
| 20 | DRILL SPINDLE | |
| 21 | RUBBER PART | |
| 22 | O- RING | |
| 23 | HEADER | |
| 24 | STEEL BALL | |
| 25 | STEEL BALL CAP | |
| 26 | SAFETY CLUTCH SPRING | |
| 27 | SPACER | |
| 28 | SEAL RING | |
| 29 | WASHER | |
| 30 | BALL BEARING | |
| 31 | SWITCHING KNOB | |
| 32 | CYLINDER | |
| 33 | WASHER | |
| 34 | CLUTCH HOLDER SPRING | |
| 35 | CLUTCH SPRING | |
| 36 | CLUTCH HOLDER | |
| 37 | CLUTCH | |
| 38 | FEDERRING | |
| 39 | FINAL GEAR | |
| 40 | FREE PISTON | |
| 41 | O- RING | |
| 42 | RECIPROCATING PISTON | |
| 43 | SWITCHING DISK | |
| 44 | BOLT | |
| 45 | O-RING | |
| 46 | SCREW M4x20 | |
| 47 | CHANGE LEVER SPRING | |
| 48 | CONNECTING ROD | |
| 51 | COVER | |
| 52 | PACKING STOPPER | |
| 54 | CRANK SHAFT | |
| 55 | BALL BEARING | |
| 57 | GEAR WHEEL | |
| 58 | WASHER | |
| 60 | O-RING | |
| 61 | DRIVING AXLE | |
| 62 | BALL BEARING | |
| 63 | BUSH | |
| 64 | GEAR WHEEL | |
| 65 | O- RING | |
| 66 | BALL BEARING | |
| 67 | CRANK CASE COVER | |
| 68 | BALL BEARING | |
| 69 | OIL SEAL | |
| 70 | ARMATURE | |
| 71 | INSULATING DISC | |
| 72 | RUBBER BEARING | |
| 73 | FAN GUIDE | |
| 74 | SCREW M5x60 | |
| 75 | STATOR | |
| 76 | SCREW M4x14 | |
| 77 | ELECTRONIC MODULE | |
| 78 | MOTOR CASING | |
| 79 | CARBON BRUSH HOLDER | |
| 80 | CARBON BRUSH | |
| 81 | CARBON BRUSH WITH AUTO-STOP | |
| 82 | CASING CUP | |
| 83 | SHOCK ABSORBER | |
| 84 | SHOCK ABSORBER | |
| 85 | SCREW M5x50 | |
| 87 | HANDLE | |
| 88 | SCREW M5x25 | |
| 89 | DAMPER SPRING | |
| 90 | DAMPER | |
| 91 | SHOCK ABSORBER | |
| 92 | PICK UP SLEEVE CPL. | |
| 93 | HANDLE | |
| 94 | SWITCH | |
| 95 | COVER FOR HANDLE | |
| 96 | SCREW M4x20 | |
| 97 | CORD CLIP | |
| 98 | SCREW M4x20 | |
| 99 | RUBBER BUSHING | |
| 100 | POWER-SUPPLY CORD | |
| 101 | WASHER | |
| 102 | SCREW M5x25 | |
| 103 | CLIP | |
| 104 | STRAP | |
| 105 | STRAP HOLDER | |
| 106 | SCREW | |
| 107 | SCREW 6kt M8x50 | |
| 108 | STRAP HOLDER | |
| 109 | SIDE HANDLE | |
| 110 | DEPT STOP | |
| 111 | STRANDED WIRE | |
| 112 | STRANDED WIRE | |
| 113 | HEADER CPL. | |
| 114 | CRANK CASE | |
| 115 | CRANK CASE COVER | |
| 117 | GREASE FOR GEAR | |
| 119 | SEALING SET |
