550 PH (04283235)

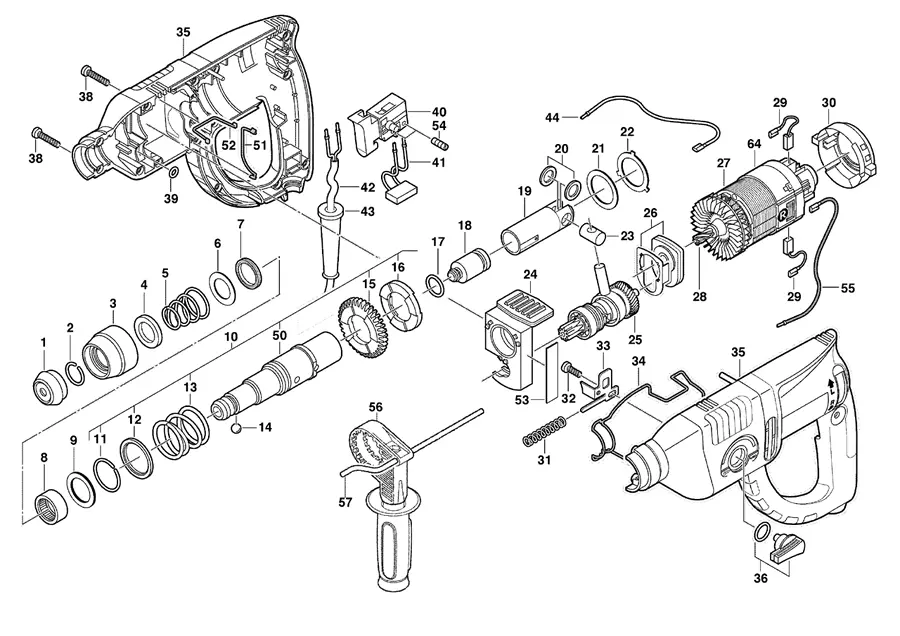

550 PH (04283235)
| П-п | Арт | Название |
|---|---|---|
| 1 | PROTECTIVE CAP | |
| 2 | RETAINING RING | |
| 3 | ROTATING SLEEVE | |
| 4 | WASHER - WEAR PART | |
| 5 | CONICAL SPRING | |
| 6 | 8\\\" | |
| 7 | RADIAL SHAFT SEALING | |
| 8 | NEEDLE BUSH | |
| 9 | WASHER 24 MM | |
| 10 | DRILL SPINDLE CPL.PREASSEMBLED | |
| 11 | RETAINING RING | |
| 12 | WASHER 30 MM | |
| 13 | PRESSURE SPRING | |
| 14 | STEEL BALL 7 MM | |
| 15 | GEAR WHEEL | |
| 16 | CLUTCH DISK | |
| 17 | O-RING | |
| 18 | FREE PISTON | |
| 19 | PISTON 27588 | |
| 20 |  |
WASHER 51499 |
| 21 |  |
AXIAL DISK |
| 22 |  |
DISK |
| 23 |  |
BEARING BOLT |
| 24 |  |
BEARING PART |
| 25 |  |
BACK GEAR SHAFT |
| 26 |  |
BEARING PLATE |
| 27 |  |
STATOR |
| 28 |  |
ARMATURE WITH BEARING B |
| 29 |  |
CARBON BRUSH |
| 30 |  |
SWITCHING RING |
| 31 |  |
PRESSURE SPRING |
| 32 |  |
SCREW KT 4X9,5 |
| 33 |  |
SWITCHING PLATE |
| 34 |  |
FORM SEALING |
| 35 |  |
CASING 30803 |
| 36 |  |
SWITCHING LEVER 26972 |
| 38 |  |
SCREW KT 4X16 |
| 39 |  |
O-RING |
| 40 |  |
ELECTRONIC SWITCH |
| 41 |  |
CAPACITOR |
| 42 |  |
POWER SUPPLY 19638/30796 |
| 43 |  |
RUBBER BUSHING 29138 |
| 44 |  |
CORD YELLOW |
| 50 |  |
SPINDLE PREASSEMBLED |
| 51 |  |
FORM SEALING |
| 52 |  |
FORM SEALING |
| 53 |  |
SHEET METAL PLATE |
| 54 |  |
GRUB SCREW |
| 55 |  |
STRANDED WIRE,BLACK |
| 56 |  |
HMT-2K/K |
| 57 |  |
DEPT STOP |
| 64 |  |
ENDSHIELD MAXX +C.BRUSH RING |
