620 PEC (04282318)

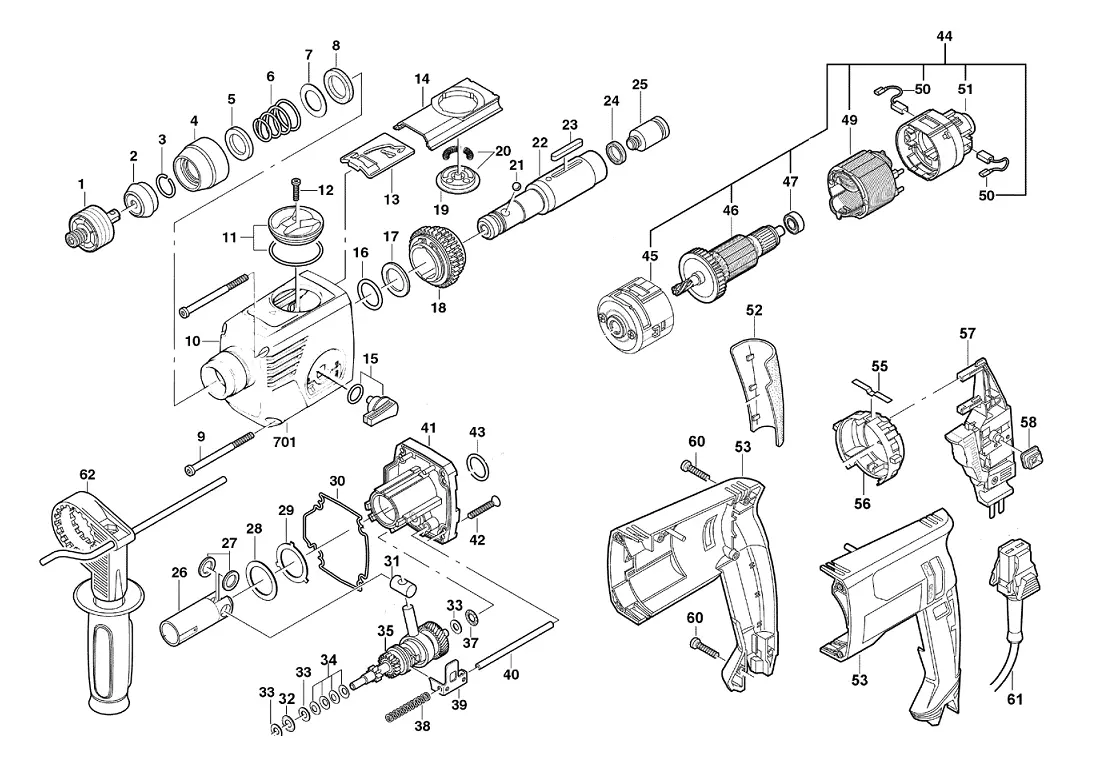

620 PEC (04282318)
| П-п | Арт | Название |
|---|---|---|
| 1 | SCREWING ADAPTER | |
| 2 | PROTECTIVE CAP | |
| 3 | RETAINING RING | |
| 4 | ROTATING SLEEVE | |
| 5 | WASHER - WEAR PART | |
| 6 | CONICAL SPRING | |
| 7 | 8\\\" | |
| 8 | PACKING RING | |
| 9 | SCREW 75 MM | |
| 10 | GEAR CASING PREASSEMBLED | |
| 11 | SWITCHING KNOB KPL.WITH O-RING | |
| 12 | SCREW TORX KT 3X14 | |
| 13 | SWITCHING PLATE | |
| 14 | GUIDE PLATE | |
| 15 | SWITCHING LEVER CPL. | |
| 16 | O-RING | |
| 17 | DISK | |
| 18 | SAFETY CLUTCH | |
| 19 | GUIDE DISK | |
| 20 | HOLDING DISK CPL. WITH SPRINGS | |
| 21 | STEEL BALL 7 MM | |
| 22 | SPINDLE CPL. | |
| 23 | FEATHER KEY | |
| 24 | O-RING | |
| 25 | FREE PISTON | |
| 26 | RECIPROCATING PISTON | |
| 27 | WASHER | |
| 28 | AXIAL DISK | |
| 29 | DISK | |
| 30 | SEALING JOINT | |
| 31 | BEARING BOLT | |
| 32 | AXIAL BEARING AX 614 | |
| 33 | WASHER | |
| 34 | PLATE SPRING 12,5X6,2X0,5 | |
| 35 | BACK GEAR SHAFT | |
| 37 | AXIAL BEARING | |
| 38 | PRESSURE SPRING | |
| 39 | SWITCHING FORK | |
| 40 | SWITCHING SHAFT | |
| 41 | ZYLINDER FLANGE | |
| 42 | COUNTERSUNK SCREW KT 4X30 | |
| 43 | FELT RING | |
| 44 | MP 40 MOTOR | |
| 45 | HOUSING CUP MAXX POWER | |
| 46 | ARMATURE WITH BEARING | |
| 47 | BALL BEARING 607 ZZ | |
| 49 | STATOR MAXX POWER | |
| 50 | CARBON BRUSH | |
| 51 | ENDSHIELD MAXX +C.BRUSH RING | |
| 52 | COVER FOR HANDLE | |
| 53 | MOTOR CASING | |
| 55 | STOP SPRING | |
| 56 | L/R-SWITCHING RING | |
| 57 | ELECTRNIC SWITCH MODULE | |
| 58 | LOCK KNOB ADAPTER | |
| 60 | SCREW KT 4,0 x 19 | |
| 61 | MAINS SUPPLY MODULE | |
| 62 | HMT-2K/K | |
| 701 | GEAR CPL. |
