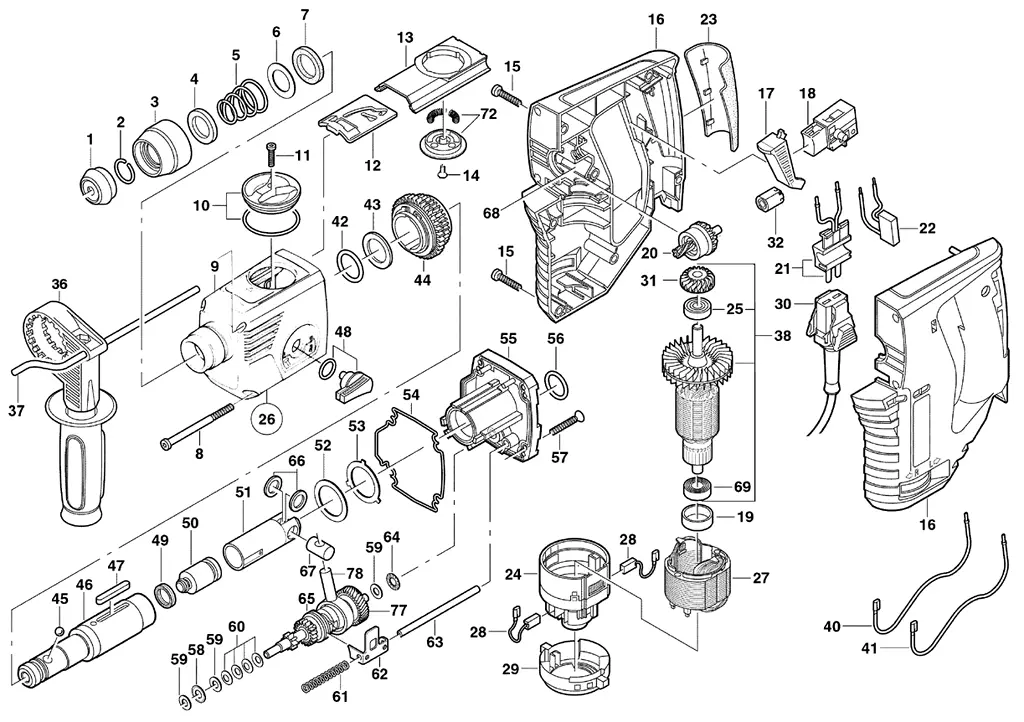

PSX 600
| П-п | Арт | Название |
|---|---|---|
| 1 | PROTECTIVE CAP | |
| 2 | RETAINING RING | |
| 3 | ROTATING SLEEVE | |
| 4 | WASHER-WEAR PART | |
| 5 | CONICAL SPRING | |
| 6 | 8\\\" | |
| 7 | PACKING RING | |
| 8 | SCREW 75 MM | |
| 9 | GEAR CASING PREASSEMBLED | |
| 10 | SWITCHING KNOB 2- SPEED BLACK | |
| 11 | SCREW TORX KT 3X14 | |
| 12 | SWITCHING PLATE | |
| 13 | GUIDE PLATE | |
| 14 | HOLDING DISK | |
| 15 | SCREW KT 4,0 x 19 | |
| 16 | CASING | |
| 17 | SWITCH ON PUSHER | |
| 18 | ELECTRONIC CONTROL SWITCH | |
| 19 | RUBBER BEARING BUSHING | |
| 20 | INTERM. SHAFT+A PAIR OF PINION | |
| 21 | PLUG ADAPTER | |
| 22 | CAPACITOR | |
| 23 | COVER FOR HANDLE | |
| 24 | ENDSHIELD MAXX +C.BRUSH RING | |
| 25 | BALL BEARING | |
| 26 | GEAR CPL. 600 PX/750 PXC | |
| 27 | STATOR MAXX POWER | |
| 28 | CARBON BRUSH | |
| 29 | SWITCHING RING | |
| 30 | MAINS SUPPLY MODULE | |
| 31 | GEAR | |
| 32 | COOLING PART | |
| 36 | HMT-2K/K | |
| 37 | DEPT STOP | |
| 38 | ARMAT.+BEARING+BEVEL GEAR | |
| 40 | STRANDED WIRE 285 MM YELLOW | |
| 41 | STRANDED WIRE 285 MM BLACK | |
| 42 | O-RING | |
| 43 | DISK | |
| 44 | GEAR WHEEL BLOCK SAFETY CLUTCH | |
| 45 | STEEL BALL 7 MM | |
| 46 | SPINDLE CPL. | |
| 47 | FEATHER KEY | |
| 48 | SWITCHING LEVER CPL. | |
| 49 | O-RING | |
| 50 | FREE PISTON | |
| 51 | RECIPROCATING PISTON | |
| 52 | AXIAL DISK | |
| 53 | DISK | |
| 54 | SEALING JOINT | |
| 55 | ZYLINDER FLANGE | |
| 56 | FELT RING | |
| 57 | COUNTERSUNK SCREW KT 4X30 | |
| 58 | AXIAL BEARING | |
| 59 | WASHER | |
| 60 | PLATE SPRING 12,5X6,2X0,5 | |
| 61 | PRESSURE SPRING | |
| 62 | SWITCHING FORK | |
| 63 | SWITCHING SHAFT | |
| 64 | AXIAL BEARING | |
| 65 | BACK GEAR SHAFT | |
| 66 | WASHER | |
| 67 | BEARING BOLT | |
| 68 | GREASE CHAMBER | |
| 69 | BALL BEARING 607 ZZ | |
| 72 | HOLDING DISK CPL. WITH SPRINGS | |
| 77 | GEAR WHEEL | |
| 78 | SWASH BEARING |
