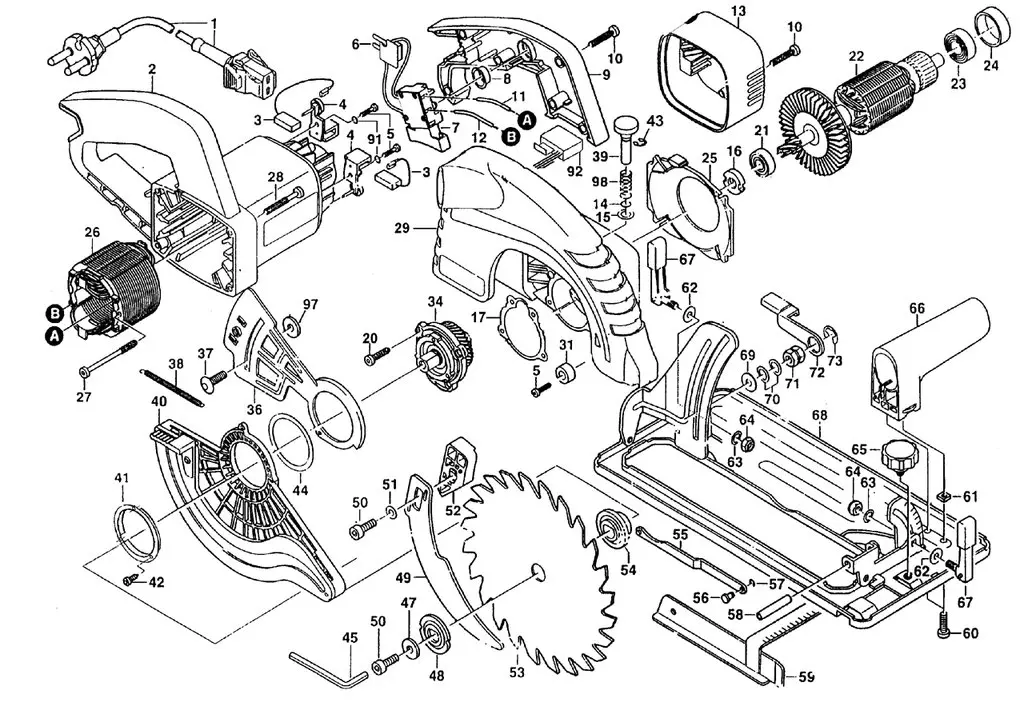

1400 HKS (06012519)
1400 HKS (06012519)
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
CABLE |
| 2 |  |
MOTOR CASING |
| 3 |  |
CARBON BRUSH |
| 4 |  |
CARBON BRUSH HOLDER CPL. |
| 5 |  |
SCREW KT 4X13 |
| 6 | RADIO INTERFERENCE SUPPRESSION | |
| 7 | SWITCH BLACK | |
| 8 | LOCK KNOB 12044 | |
| 9 | COVER FOR HANDLE | |
| 10 | SCREW KT 4X16 | |
| 11 | WIRE 170 MM | |
| 12 | WIRE 210 MM | |
| 13 | MOTOR COVER | |
| 14 | WASHER B 5,3 | |
| 15 | O-RING 5 X 2,0 | |
| 16 | LOCK DISK | |
| 17 | SEALING | |
| 20 | SCREW 4 X 10 MM | |
| 21 | BALL BEARING | |
| 22 | ARMATURE WITH BEARING B | |
| 23 | BALL BEARING | |
| 24 |  |
RUBBER BEARING BUSHING |
| 25 |  |
AIR STREAM DIRECTOR |
| 26 |  |
STATOR |
| 27 |  |
LENS HEAD SCREW 4 X 60 |
| 28 |  |
CYLINDER SCREW M 5 X 35 |
| 29 |  |
GUARD |
| 31 |  |
RUBBER BUSH |
| 34 |  |
SAW SPINDLE WITH BEARING+COVER |
| 36 |  |
HOLDER FOR RIVING KNIFE |
| 37 |  |
CLAMP BOLT |
| 38 |  |
SPRING |
| 39 |  |
LOCKING PIN |
| 40 |  |
SWIVEL GUARD CPL. |
| 41 |  |
CENTERING FLANGE |
| 42 |  |
SCREW KT 4X9,5 |
| 43 |  |
THRUST WASHER |
| 44 |  |
SHIM 45 X 55 X 0,3 |
| 45 |  |
ALLEN KEY |
| 47 |  |
COMPRESSION WASHER |
| 48 |  |
WASHER 30450 |
| 49 |  |
RIVING KNIFE |
| 50 |  |
CYLINDER HEAD SCREW M 8X16 |
| 51 |  |
WASHER 8,4 DIN 433 |
| 52 |  |
ADAPTER FOR RIVING KNIFE |
| 53 |  |
CIRCULAR SAW BLADE 10 TEETH |
| 54 |  |
FLANGE 30449 |
| 55 |  |
CONTROL LEVER |
| 56 |  |
BOLT |
| 57 |  |
THRUST WASHER |
| 58 |  |
LOCKING PIN |
| 59 |  |
PARALLEL GUIDE |
| 60 |  |
CYLINDER SCREW |
| 61 |  |
SQUARE NUT M 5 DIN 557 |
| 62 |  |
WASHER |
| 63 |  |
PLATE SPRING |
| 64 |  |
HEXAGON NUT M 5 |
| 65 |  |
STAR NUT |
| 66 |  |
HANDLE |
| 67 |  |
FIXING LEVER |
| 68 |  |
SOLE PLATE |
| 69 |  |
WASHER |
| 70 |  |
WASHER |
| 71 |  |
CLAMP NUT |
| 72 |  |
FIXING LEVER |
| 73 |  |
LOCK WASHER |
| 91 |  |
SPRING WASHER 4MM |
| 92 |  |
SOFT STARTER |
| 97 |  |
SPACER |
| 98 |  |
PRESSURE SPRING |
