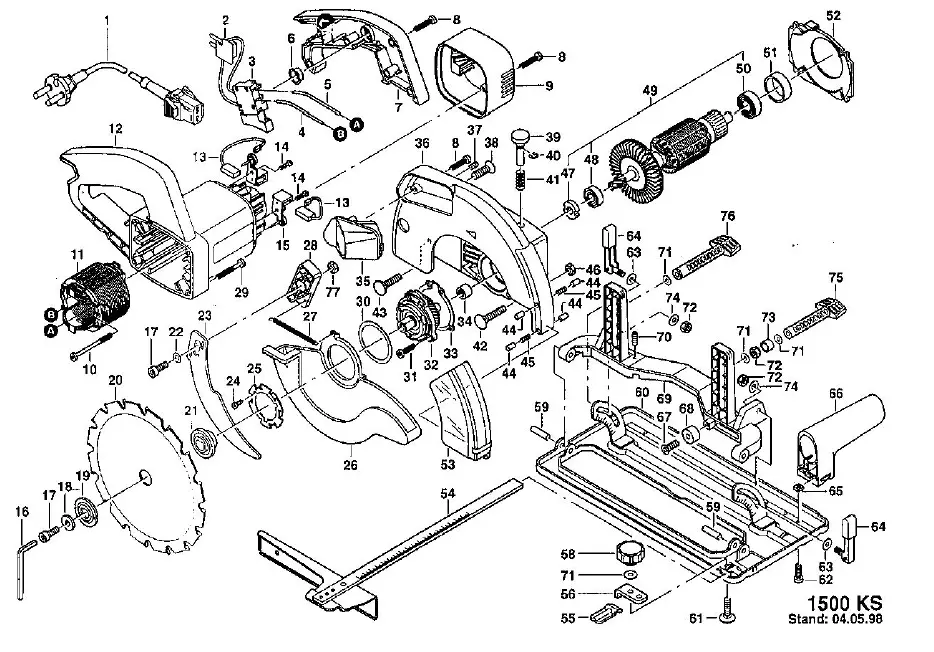

1500 KS (06012801)

П-п	Арт	Название
1		MAINS SUPPLY MODULE
2		RADIO INTERFERENCE SUPPRESSION
3		SWITCH BLACK
4		WIRE 210 MM
5		WIRE 170 MM
6		LOCK KNOB,BLACK
7		COVER FOR HANDLE
8		SCREW KT 4X16
9		MOTOR COVER 1600 KS
10		LENS HEAD SCREW 4 X 60
11		STATOR
12		MOTOR CASING
13		CARBON BRUSH
14		SCREW KT 4X13
15		CARBON BRUSH HOLDER
16		ALLEN KEY
17		CYLINDER HEAD SCREW M 8X16
18		COMPRESSION WASHER
19		WASHER
20		CIRCULAR SAW BLADE
21		FLANGE
22		WASHER 8,4 DIN 433
23		RIVING KNIFE
24		SCREW KT 4X9,5
25		CENTERING FLANGE
26		SWIFEL GUARD
27		SPRING
28		HOLDER FOR RIVING KNIFE
29		CYLINDER SCREW M 5 X 35
30		SHIM 45 X 55 X 0,3
31		SCREW 4 X 10 MM
32		SAW SPINDLE WITH BEARING+COVER
33		SEALING
34		NEEDLE BUSH
35		EXHAUST CHUTE
36		GUARD RED
37		THREADED PIN M 5 X 8 DIN 916
38		COUNTERSUNK SCREW M 6 X 20
39		PIN
40		THRUST WASHER
41		PRESSURE SPRING
42		SCREW M 5 X 35 MM
43		SCREW M 5 X 25
44		CYLINDRICAL ROLLER M 4 X 8
45		COMPRESSION SPRING
46		NUT M 5 DIN 439
47		LOCK DISK
48		BALL BEARING
49		ARMATURE CPL WITH BALL BEARING
50		BALL BEARING
51		RUBBER BEARING BUSHING
52		AIR STREAM DIRECTOR
53		EYE SHIELD
54		PARALLEL GUIDE
55		BRACKET
56		CLAMP
58		STAR NUT
59		PIN 5 X 20 DIN 1475
60		SOLE PLATE
61		SCREW M 5 X 20
62		CYLINDER SCREW M 5X12 DIN 7984
63		WASHER
64		FIXING LEVER
65		SQUARE NUT M 5 DIN 557
66		HANDLE
67		COUNTERSUNK SCREW M 5 X 16
68		RUBBER BUSH
69		TRAVERSE CARRIER
70		THREADED PIN M 5 X 16 DIN 913
71		SHIM
72		HEXAGON NUT M 5
73		CLAMP
74		PLATE SPRING
75		WING NUT M 5 / 65 MM LONG
76		WING NUT M 5/80 LONG
77		NUT M 8 DIN 934
