HS 300 DWE

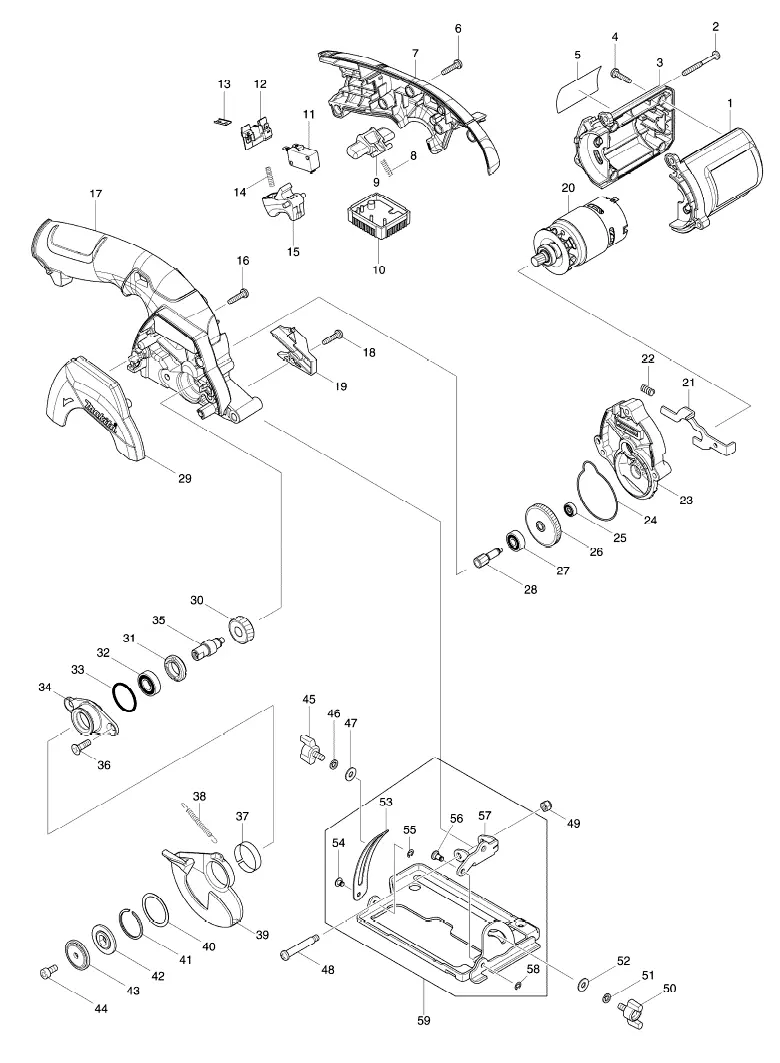

HS 300 DWE
| П-п | Арт | Название |
|---|---|---|
| 1 | MOTOR HOUSING SET INC. 3 | |
| 2 | TAPPING SCREW 4X40 | |
| 3 | MOTOR HOUSING SET INC. 1 | |
| 4 | TAPPING SCREW 4X18 | |
| 5 | HS300D NAME PLATE | |
| 6 | TAPPING SCREW 4X18 | |
| 7 | HANDLE SET INC. 17 | |
| 8 | COMPRESSION SPRING 4 | |
| 9 | LOCK OFF LEVER | |
| 10 | CONTROLLER UNIT | |
| 11 | SWITCH V-15-3A6 | |
| 12 | TERMINAL | |
| 13 | SET PLATE | |
| 14 | COMPRESSION SPRING 4 | |
| 15 | SWITCH LEVER | |
| 16 | TAPPING SCREW 4X18 | |
| 17 | HANDLE SET INC. 7 | |
| 18 | TAPPING SCREW 4X18 | |
| 19 | DUCT | |
| 20 | DC MOTOR | |
| 21 | SHAFT LOCK | |
| 22 | COMPRESSION SPRING 6 | |
| 23 | GEAR HOUSING COMPLETE | |
| 24 | PACKING | |
| 25 | BALL BEARING 604ZZ | |
| 26 | HELICAL GEAR 47 | |
| 27 | BALL BEARING 606ZZ | |
| 28 | HELICAL GEAR 9B | |
| 29 | BLADE COVER | |
| 30 | HERICAL GEAR 28 | |
| 31 | BEARING RETAINER 14-23 | |
| 32 | BALL BEARING 6900DDW | |
| 33 | O RING 26 | |
| 34 | BEARING BOX | |
| 35 | SPINDLE | |
| 36 | COUNTERSUNK HEAD SCREW M5X16 | |
| 37 | THICKNESS RING | |
| 38 | TENSION SPRING 4 | |
| 39 | SAFETY COVER | |
| 40 | FLAT WASHER 26 | |
| 41 | RETAINING RING(EXT) WR-26 | |
| 42 | INNER FLANGE 28 | |
| 43 | OUTER FLANGE 28 | |
| 44 | HEX. SOCKET HEAD BOLT M5X12 | |
| 45 | THUMB SCREW M5X10 | |
| 46 | SPRING WASHER 5 | |
| 47 | FLAT WASHER 5 | |
| 48 | PAN HEAD SCREW M5 | |
| 49 |  |
HEX. LOCK NUT M5-8 |
| 50 |  |
THUMB SCREW M5X10 |
| 51 |  |
SPRING WASHER 5 |
| 52 |  |
FLAT WASHER 5 |
| 53 |  |
DEPTH GUIDE |
| 54 |  |
PIN 4 |
| 55 |  |
STOP RING E-3 |
| 56 |  |
PIN 5 |
| 57 |  |
ANGULAR GUIDE |
| 58 |  |
STOP RING E-3 |
| 59 |  |
BASE ASSEMBLY INC. 53-58 |
| A01 |  |
HEX. WRENCH 4 |
| A02 |  |
T.C.T. SAW BLADE 85X15X20T |
| A03 |  |
DC10WA BATTERY CHARGER |
| A04 |  |
BATTERY BL1013 SET |
| A05 |  |
PLASTIC CARRYING CASE |
| A06 |  |
HS300DWE PLASTIC CASE LABEL |
| A07 |  |
DUST NOZZLE |
| A08 |  |
PAN HEAD SCREW M4X16 |
