JR 180 DWD

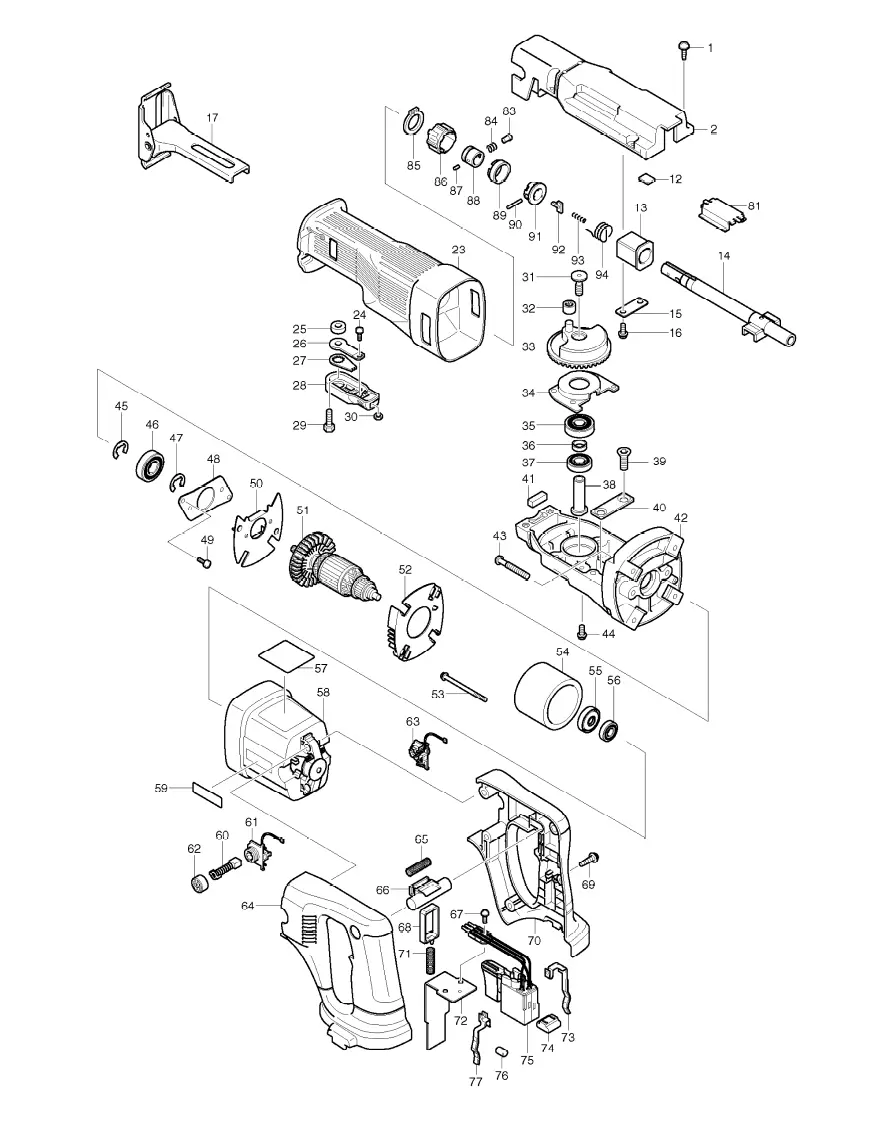

JR 180 DWD
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
PAN HEAD SCREW M5X18 |
| 2 |  |
GEAR HOUSING COVER COMPLETE |
| 3 |  |
STEEL BALL 4.8 |
| 4 |  |
PIN 5.5-6 |
| 5 |  |
CLAMP |
| 6 |  |
TORX. S.H. SHOULDER BOLT M5X10 |
| 7 |  |
PUSH BUTTON |
| 8 |  |
PUSH PIN |
| 9 |  |
COMPRESSION SPRING 3 |
| 10 |  |
COMPRESSION SPRING 16 |
| 11 |  |
RING 13 |
| 12 |  |
PLATE 12X16 |
| 13 |  |
PLANE BEARING 14 |
| 14 |  |
SLIDER |
| 15 |  |
PLATE |
| 16 |  |
PAN HEAD SCREW M5X16 |
| 17 |  |
SHOE |
| 23 |  |
INSULATION COVER |
| 24 |  |
PAN HEAD SCREW M4X10 |
| 25 |  |
SLEEVE 9 |
| 26 |  |
INNER PLATE |
| 27 |  |
LOCK PLATE |
| 28 |  |
LEVER 60 |
| 29 |  |
HEX. BOLT M8X25 |
| 30 |  |
HEX. NUT M4 |
| 31 | TORX SOCKET HEAD BOLT M6X15 | |
| 32 | NEEDLE BEARING 708 | |
| 33 | GEAR COMPLETE | |
| 34 | BEARING RETAINER A | |
| 35 | BALL BEARING 6000LLB | |
| 36 | RING 10 | |
| 37 | BALL BEARING 6900LLB | |
| 38 | GEAR SHAFT | |
| 39 | HEX. SOCKET HEAD BOLT M5X12 | |
| 40 | PLATE C | |
| 41 | FELT 8X24 | |
| 42 | GEAR HOUSING | |
| 43 | TAPPING SCREW 5X35 | |
| 44 | PAN HEAD SCREW M5X8 | |
| 45 | STOP RING E-10 | |
| 46 | BALL BEARING 6001DDW | |
| 47 | STOP RING E-10 | |
| 48 | BEARING RETAINER B | |
| 49 | PAN HEAD SCREW M4X12 | |
| 50 | FAN GUIDE | |
| 51 | ARMATURE ASS\\\'Y 18V INC. 55,56 | |
| 52 | BAFFLE PLATE | |
| 53 | TAPPING SCREW 4X60 | |
| 54 | YOKE UNIT | |
| 55 | INSULATION WASHER | |
| 56 | BALL BEARING 607DDW | |
| 57 | NAME PLATE JR180D | |
| 58 | MOTOR HOUSING | |
| 59 | MAKITA LABEL | |
| 60 | CARBON BRUSH CB-441 | |
| 61 | BRUSH HOLDER R | |
| 62 | BRUSH HOLDER CAP | |
| 63 | BRUSH HOLDER L | |
| 64 | HANDLE SET INC. 70 | |
| 65 | COMPRESSION SPRING 4 | |
| 66 | LOCK-OFF BUTTON | |
| 67 | PAN HEAD SCREW M3X8 | |
| 68 | STOPPER | |
| 69 | TAPPING SCREW 4X18 | |
| 70 | HANDLE SET INC. 64 | |
| 71 | COMPRESSION SPRING 4 | |
| 72 | HEAT SINK | |
| 73 | SPRING TERMINAL (PLUS) | |
| 74 | HOLDER | |
| 75 | SWITCH | |
| 76 | RUBBER PIN 4 | |
| 77 | SPRING TERMINAL (MINUS) | |
| 81 | SLIDE PLATE | |
| 82 | SPRING WASHER 5 | |
| 83 | SHOULDER PIN 5 | |
| 84 | COMPRESSION SPRING 6 | |
| 85 | RETAINING RING (EXT) S-18 | |
| 86 | DRIVING SLEEVE | |
| 87 | PIN 3 | |
| 88 | GUIDE SLEEVE | |
| 89 | DRIVING SLEEVE GUIDE | |
| 90 | PIN 3 | |
| 91 | SLEEVE | |
| 92 | PUSH PLATE | |
| 93 | COMPRESSION SPRING 2 | |
| 94 | TORSION SPRING 17 | |
| A01 | RECIPRO SAW BLADE SET | |
| A02 | BATTERY COVER | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | BATTERY 1822 SET |
