BVR 450 RFE

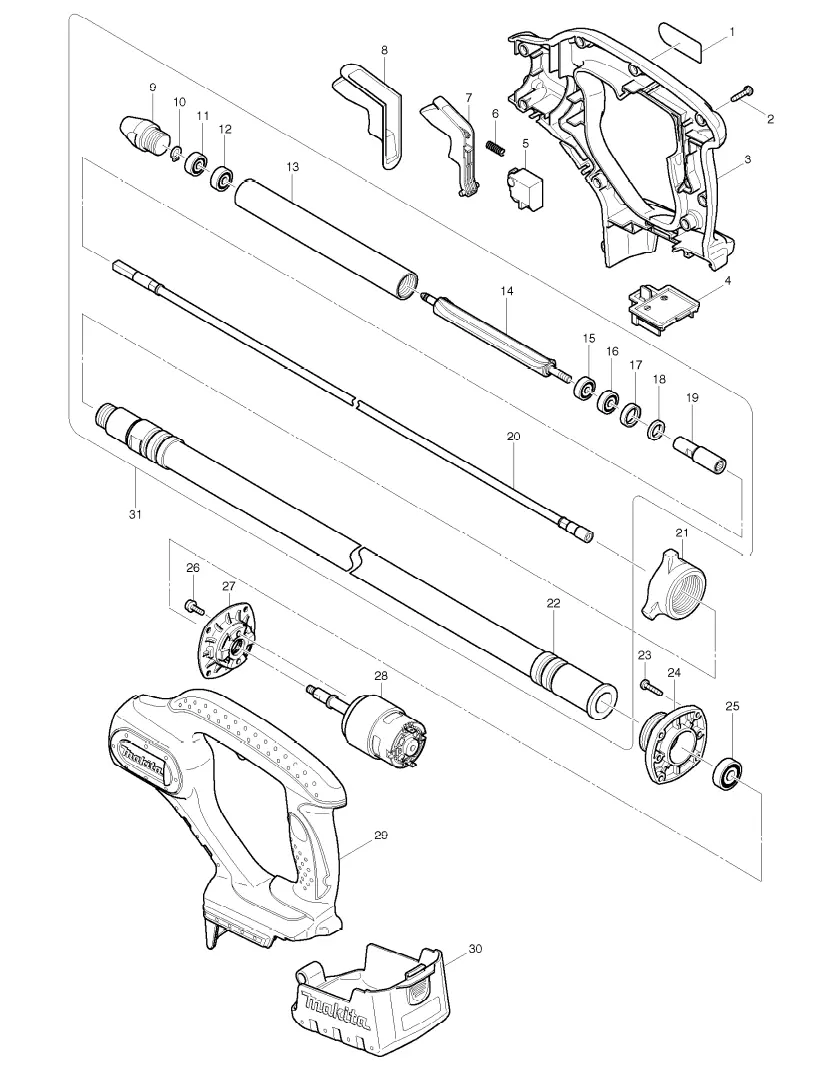

BVR 450 RFE
| П-п | Арт | Название |
|---|---|---|
| 1 | BVR450 NAME PLATE | |
| 2 | TAPPING SCREW 4X20 | |
| 3 | HOUSING SET INC. 29 | |
| 4 | TERMINAL | |
| 5 | SWITCH SGE120C-4 | |
| 6 | COMPRESSION SPRING 6 | |
| 7 | SWITCH LEVER | |
| 8 | WATERPROOF COVER | |
| 9 | CAP | |
| 10 | RETAINING RING S-6 | |
| 11 | BALL BEARING 626 | |
| 12 | BALL BEARING 626 | |
| 13 | PIPE 25 | |
| 14 | UNBALANCER | |
| 15 | BALL BEARING 626LLB | |
| 16 | BALL BEARING 626LLB | |
| 17 | RUBBER RING | |
| 18 | FELT RING | |
| 19 | JOINT | |
| 20 | FLEXIBLE WIRE | |
| 21 | NUT 36 | |
| 22 | FLEXIBLE HOSE | |
| 23 | TAPPING SCREW 4X20 | |
| 24 | BEARING BOX | |
| 25 | BALL BEARING 629LLB | |
| 26 | PAN HEAD SCREW M4X12 | |
| 27 | SUPPORTER | |
| 28 | DC MOTOR | |
| 29 | HOUSING SET INC. 3 | |
| 30 | COVER COMPLETE | |
| 31 | FLEXIBLE ASSEMBLY INC. 9-20,22 | |
| A01 | DC18RC FAST CHARGER | |
| A02 | BATTERY BL1830 SET | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | BATTERY COVER | |
| E01 | LINE FILTER | |
| E02 | LINE FILTER |
