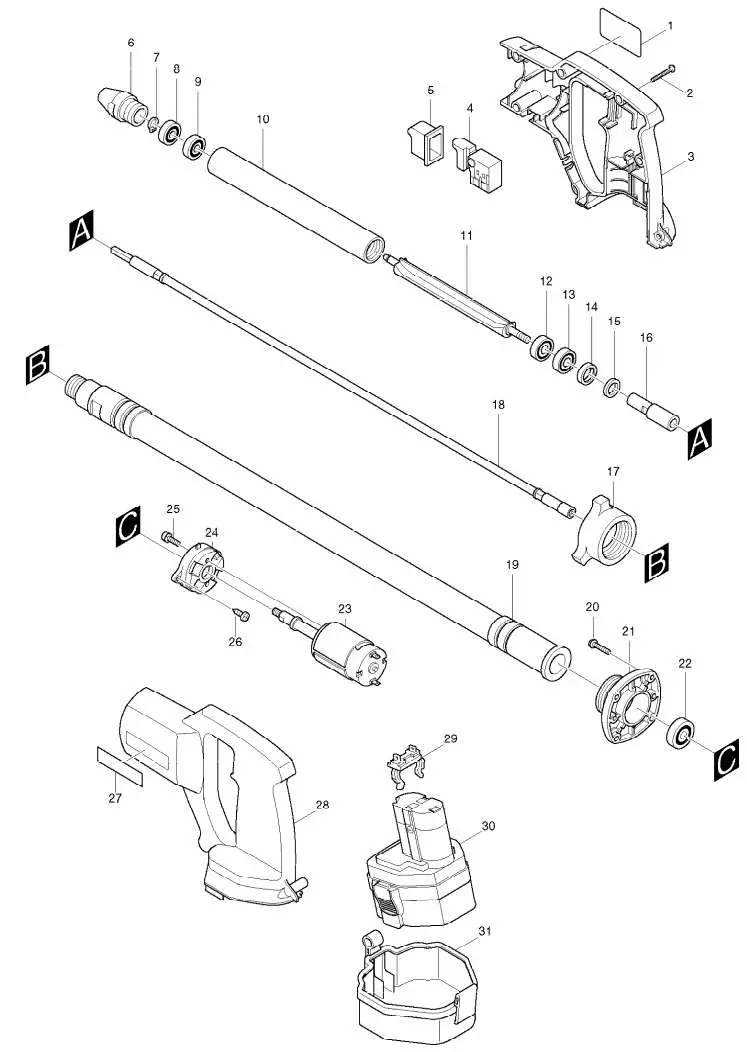

VR 250 D
VR 250 D
| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE VR250D | |
| 2 | TAPPING SCREW 4X18 | |
| 3 | HOUSING SET INC. 27,28 | |
| 4 | SWITCH SGE120C-2 | |
| 5 | SWITCH COVER | |
| 6 | CAP | |
| 7 | RETAINING RING S-6 | |
| 8 | BALL BEARING 626 | |
| 9 | BALL BEARING 626 | |
| 10 | PIPE 25 | |
| 11 | UNBALANCER | |
| 12 | BALL BEARING 626LLB | |
| 13 | BALL BEARING 626LLB | |
| 14 | RUBBER RING | |
| 15 | FELT RING | |
| 16 | JOINT | |
| 17 | NUT 36 | |
| 18 | FLEXIBLE WIRE | |
| 19 | FLEXIBLE HOSE ASS\\\\\'Y INC. 6-16,18 | |
| 20 | TAPPING SCREW 4X18 | |
| 21 | BEARING BOX | |
| 22 | BALL BEARING 629LLB | |
| 23 | DC MOTOR | |
| 24 | SUPPORTER | |
| 25 | PAN HEAD SCREW M3X12 | |
| 26 | TAPPING SCREW BIND CT 4X12 | |
| 27 | MAKITA LABEL | |
| 28 | HOUSING SET INC. 3,27 | |
| 29 | BATTERY HOLDER | |
| 30 | BATTERY 1222 SET | |
| 31 | COVER COMPLETE | |
| A01 | PLASTIC CARRYING CASE | |
| A02 | BATTERY COVER | |
| A03 | BATTERY 1222 SET | |
| B02 | MOTOR ASS\\\\\'Y INC. 22-25 | |
| E01 | BATTERY COVER |
