6317 D
6317 D

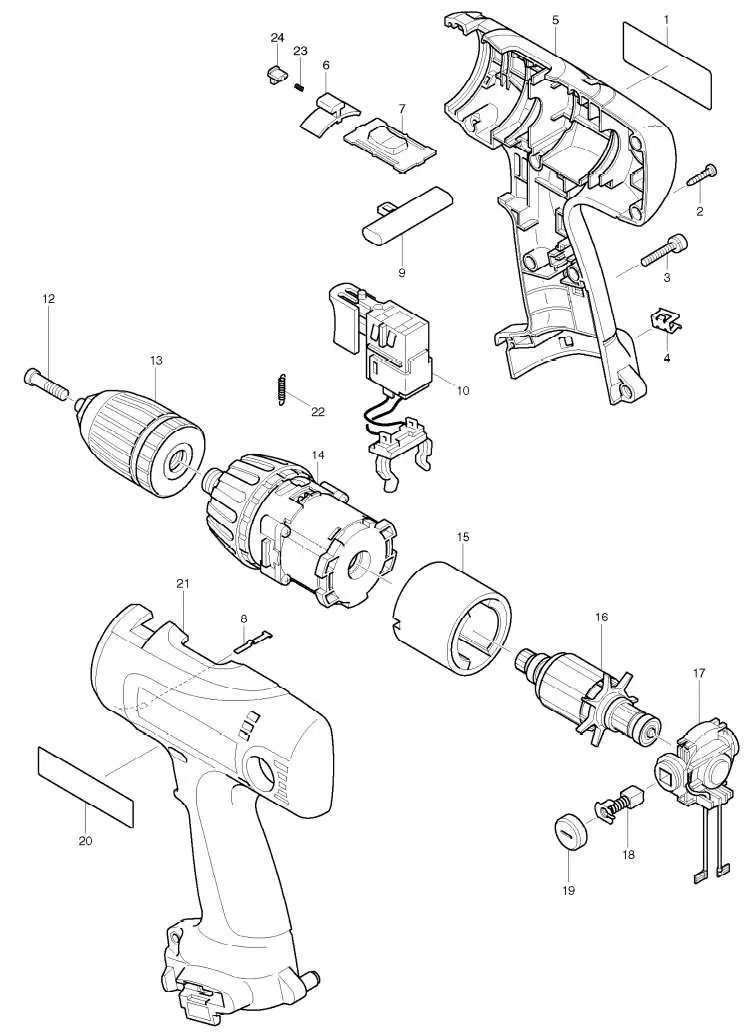

| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE 6317D | |
| 2 | TAPPING SCREW BIND PT 3X16 | |
| 3 | PAN HEAD SCREW M4X22 | |
| 4 | BIT HOLDER | |
| 5 | HOUSING SET INC. 20,21 | |
| 6 | MODE CHANGE LEVER | |
| 7 | SPEED CHANGE LEVER ASS\\\\\'Y | |
| 8 | LEAF SPRING | |
| 9 | F/R CHANGE LEVER | |
| 10 | SWITCH UNIT | |
| 12 | FLAT HEAD SCREW M6X22 | |
| 13 | KEYLESS DRILL CHUCK 13 SET | |
| 14 | GEAR ASS\\\\\'Y | |
| 15 | YOKE UNIT | |
| 16 | ARMATURE | |
| 17 | ENDBELL COMPLETE | |
| 18 | CARBON BRUSH CB-430 | |
| 19 | BRUSH HOLDER CAP | |
| 20 | MAKITA MARK | |
| 21 | HOUSING SET INC. 5,20 | |
| 22 | TENSION SPRING 2 | |
| 23 | COMPRESSION SPRING 2 | |
| 24 | LOCK LEVER | |
| A01 | BATTERY COVER | |
| A02 | BIT 2-45 | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | DC1414 BATTERY CHARGER | |
| A05 | BATTERY 1222 SET | |
| A09 | 6317DWAE PLASTIC CASE LABEL |
