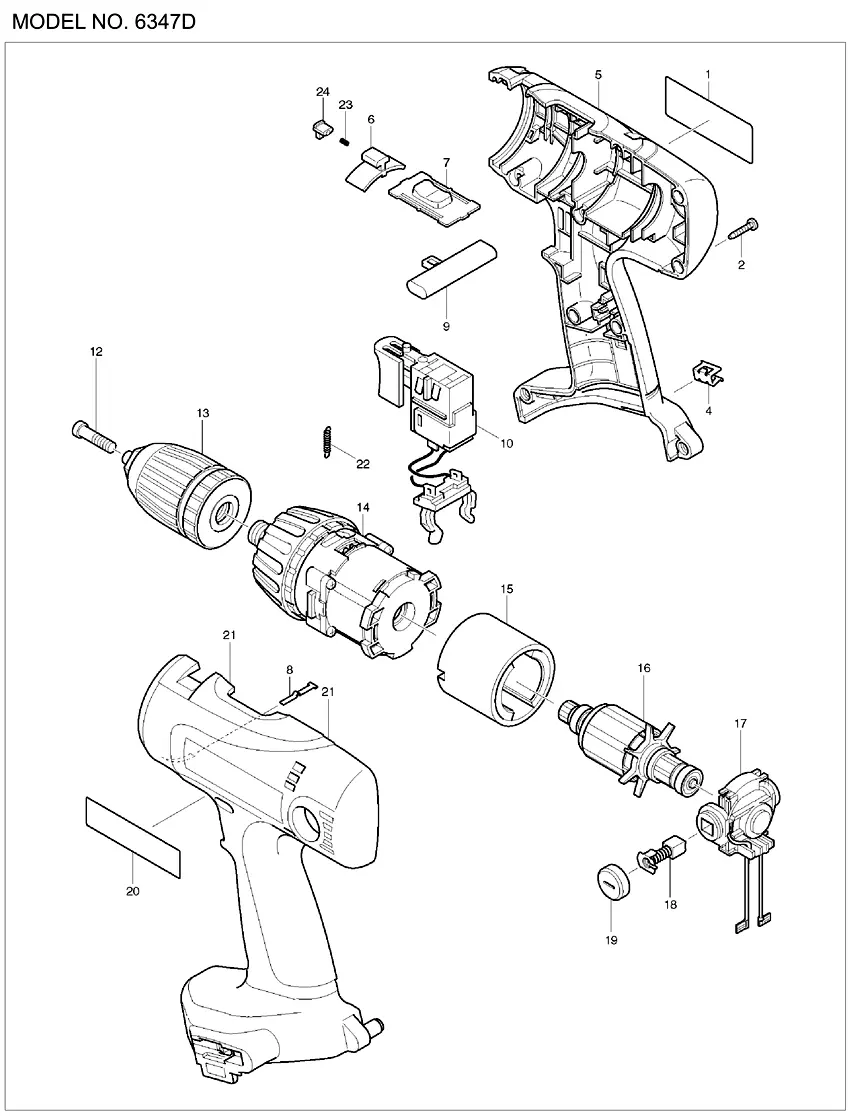

6347 D
6347 D
| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE 6347D | |
| 2 | TAPPING SCREW BIND PT 3X16 (new) | |
| 2 | TAPPING SCREW BIND PT 3X16 (old) | |
| 3 | PAN HEAD SCREW M4X22 | |
| 4 | BIT HOLDER | |
| 5 | HOUSING SET INC. 21 (new) | |
| 5 | HOUSING SET INC. 20,21 (old) | |
| 6 | MODE CHANGE LEVER | |
| 7 | SPEED CHANGE LEVER ASS\\\'Y (new) | |
| 7 | SPEED CHANGE LEVER ASS\\\'Y (old) | |
| 8 | LEAF SPRING | |
| 9 | F/R CHANGE LEVER (new) | |
| 9 | F/R CHANGE LEVER (old) | |
| 10 | SWITCH UNIT | |
| 12 | - FLAT HEAD SCREW M6X22 | |
| 13 | KEYLESS DRILL CHUCK 13 (new) | |
| 13 | KEYLESS DRILL CHUCK 13 SET (old) | |
| 14 | GEAR ASS\\\'Y (new) | |
| 14 | GEAR ASS\\\'Y (old) | |
| 15 | YOKE UNIT | |
| 16 | ARMATURE | |
| 17 | ENDBELL COMPLETE | |
| 18 | CARBON BRUSH CB-430 | |
| 19 | BRUSH HOLDER CAP (new) | |
| 19 | BRUSH HOLDER CAP (old) | |
| 20 | MAKITA MARK (new) | |
| 20 | MAKITA MARK (old) | |
| 21 | HOUSING SET INC. 5 (new) | |
| 21 | HOUSING SET INC. 5,20 (old) | |
| 22 | TENSION SPRING 2 | |
| 23 | COMPRESSION SPRING 2 | |
| 24 | LOCK LEVER | |
| A01 | BATTERY COVER | |
| A02 | +- BIT 2-45 | |
| A03 | PLASTIC CARRYING CASE | |
| A04 | DC1804 BATTERY CHARGER | |
| A05 | BATTERY 1822 SET | |
| A05 | NI-MH(2.6A) BATTERY 1834 SET | |
| A09 | PLASTIC CASE LABEL (new1) | |
| A09 | PLASTIC CASE LABEL (old1) | |
| A09 | PLASTIC CASE LABEL (new2) | |
| A09 | PLASTIC CASE LABEL (old2) |
