8443 D
8443 D

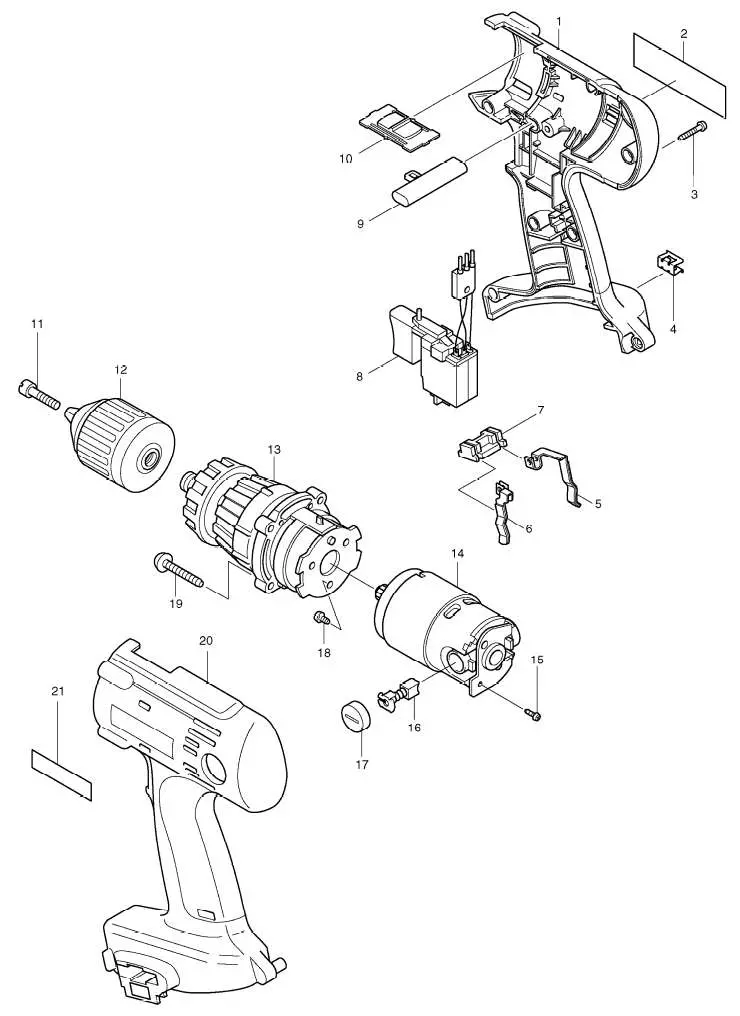

| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 20,21 | |
| 2 | NAME PLATE 8443D | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | BIT HOLDER | |
| 5 | SPRING TERMINAL (+) | |
| 6 | SPRING TERMINAL (-) | |
| 7 | HOLDER | |
| 8 | SWITCH C3LA-2A | |
| 9 | F/R CHANGE LEVER | |
| 10 | SPEED CHANGE LEVER ASS\\\\\'Y | |
| 11 | FLAT HEAD SCREW M6X22 | |
| 12 | KEYLESS DRILL CHUCK 13 | |
| 13 | GEAR ASS\\\\\'Y | |
| 14 | DC MOTOR INC. 16,17 | |
| 15 | PAN HEAD SCREW M3X8 | |
| 16 | CARBON BRUSH CB-430 | |
| 17 | BRUSH HOLDER CAP | |
| 18 | TAPPING SCREW ST 4X8 | |
| 19 | TAPPING SCREW 4X25 | |
| 20 | HOUSING SET INC. 1,21 | |
| 21 | MAKITA LABEL | |
| A01 | STOPPER POLE ASS\\\\\'Y | |
| A02 | PLASTIC CARRYING CASE | |
| A03 | BATTERY COVER | |
| A04 | BIT 2-45 | |
| A05 | GRIP ASS\\\\\'Y | |
| A06 | BATTERY 1822 SET |
