8444 D
8444 D

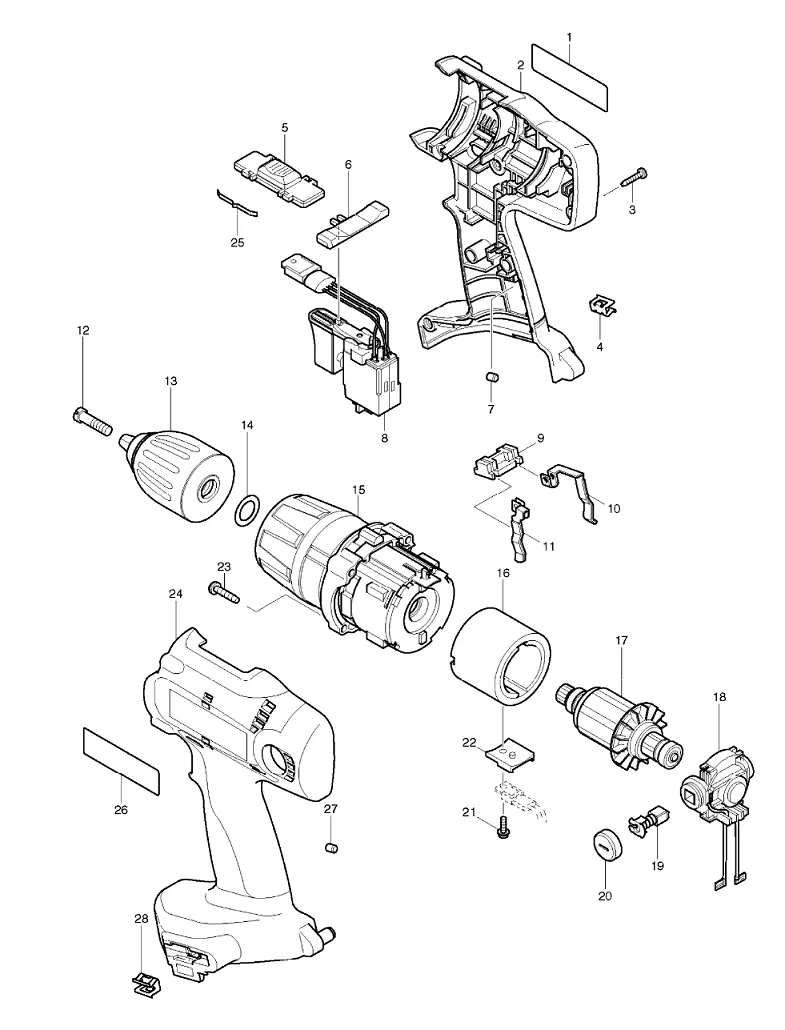

| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE 8444D (NEW) | |
| 2 | HOUSING SET (NEW) | |
| 3 | TAPPING SCREW BIND PT3X16 | |
| 4 | BIT HOLDER | |
| 5 | SPEED CHANGE LEVER ASSY (NEW) | |
| 6 | F/R CHANGE LEVER | |
| 7 | RUBBER PIN 4 | |
| 8 | SWITCH C3LA-2A-ED | |
| 9 | HOLDER | |
| 10 | SPRING TERMINAL (+) | |
| 11 | SPRING TERMINAL (-) | |
| 12 | - FLAT HEAD SCREW M6X22 | |
| 13 | KEYLESS DRILL CHUCK 13 (NEW) | |
| 14 | FLAT WASHER 13 | |
| 15 | GEAR ASSY (NEW) | |
| 16 | YOKE UNIT (NEW) | |
| 17 | ARMATURE | |
| 18 | ENDBELL COMPLETE (NEW) | |
| 19 | CARBON BRUSH CB-430 | |
| 20 | BRUSH HOLDER CAP | |
| 21 | TAPPING SCREW ST3X10 | |
| 22 | FET SPACER | |
| 23 | TAPPING SCREW 4X20 | |
| 24 | HOUSING SET (NEW) | |
| 25 | LEAF SPRING | |
| 26 | MAKITA LABEL | |
| 27 | RUBBER PIN 4 | |
| 28 | BIT HOLDER | |
| A01 | STOPPER POLE ASS\\\'Y | |
| A02 | GRIP ASSY | |
| A03 | BATTERY COVER | |
| A04 | DC1804 BATTERY CHARGER | |
| A05 | BATTERY 1834 SET | |
| A06 | +/- BIT 2-45 | |
| A07 | PLASTIC CARRYING CASE (NEW) | |
| A08 | HOOK |
