BDF 442
BDF 442

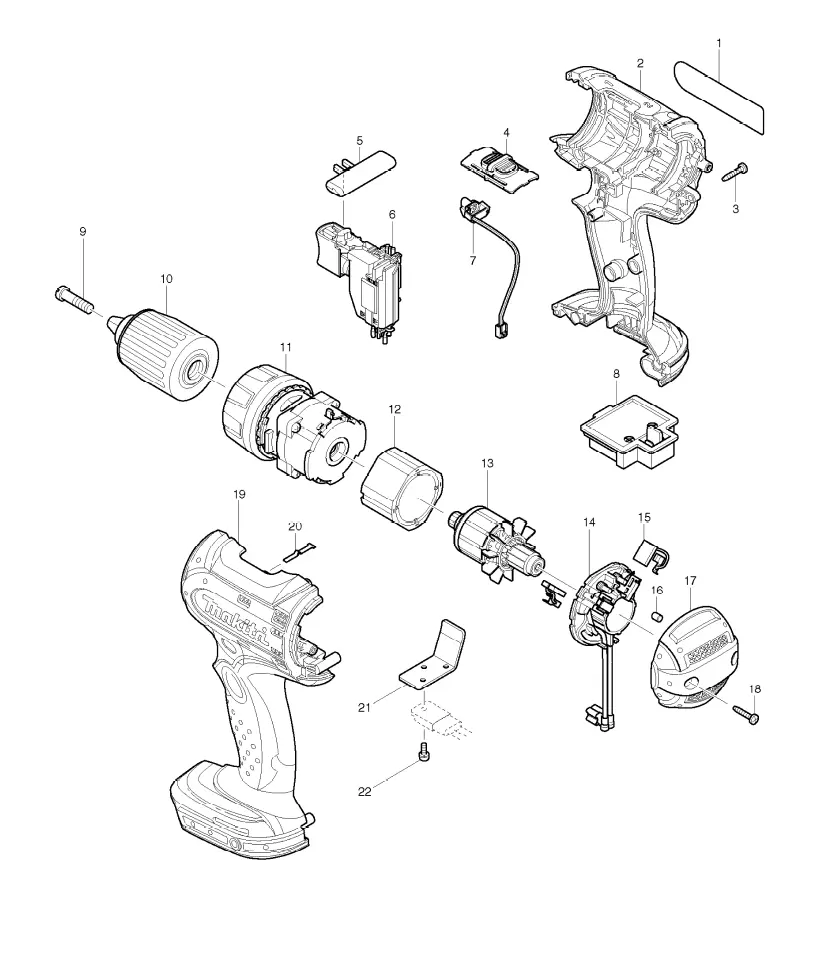

| П-п | Арт | Название |
|---|---|---|
| 1 | BDF442 NAME PLATE | |
| 2 | HOUSING SET INC. 19 | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | SPEED CHANGE LEVER ASS\\\'Y | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH C3HZ-1A-TLM | |
| 7 | LED CIRCUIT | |
| 8 | TERMINAL | |
| 9 | FLAT HEAD SCREW M6X22 | |
| 10 | KEYLESS DRILL CHUCK 13 | |
| 11 | GEAR ASS\\\'Y | |
| 12 | YOKE UNIT | |
| 13 | ARMATURE | |
| 14 | BRUSH HOLDER COMPLETE | |
| 15 | CARBON BRUSH CB-440 | |
| 16 | RUBBER PIN 4 | |
| 17 | REAR COVER | |
| 18 | TAPPING SCREW BIND PT 3X16 | |
| 19 | HOUSING SET INC. 2 | |
| 20 | LEAF SPRING | |
| 21 | HEAT SINK | |
| 22 | PAN HEAD SCREW M3X8 | |
| A01 | DC18RC FAST CHARGER | |
| A02 | BIT 2-45 | |
| A03 | PLASTIC CASE COMPLETE | |
| A04 | BATTERY BL1430 SET | |
| A05 | BDF442RFE PLASTIC CASE LABEL | |
| A06 | BATTERY COVER | |
| E01 | HOOK | |
| E02 | SCREW M4X12 |
