BDF 452
BDF 452

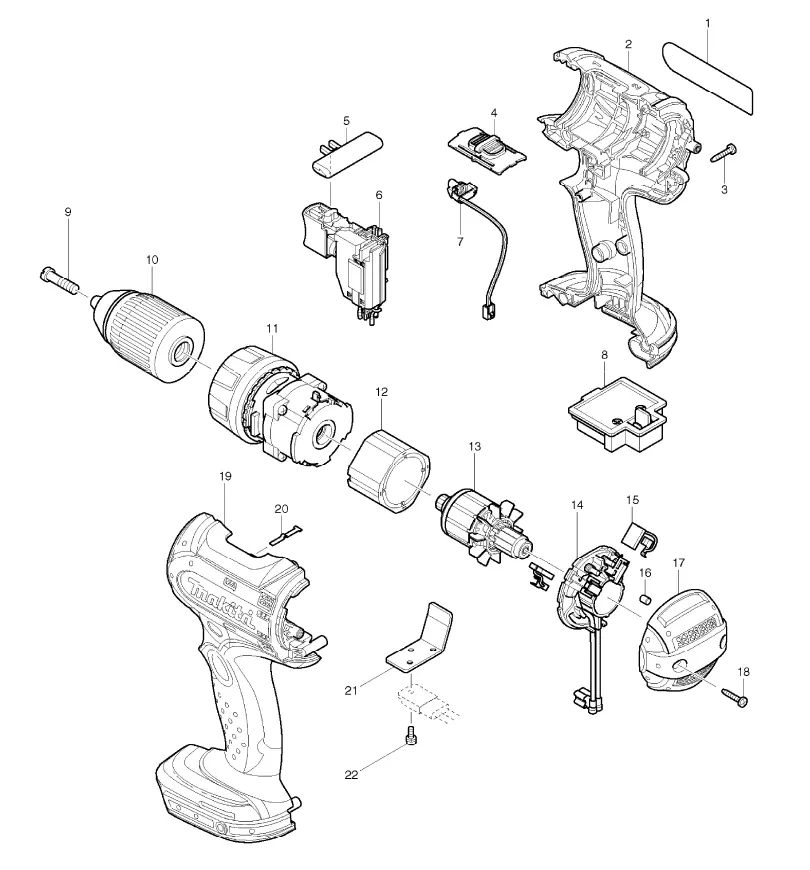

| П-п | Арт | Название |
|---|---|---|
| 1 | BDF452 NAME PLATE | |
| 2 | HOUSING SET INC. 19 | |
| 3 | TAPPING SCREW BIND PT 3X16 | |
| 4 | SPEED CHANGE LEVER ASS\\\'Y | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH C3HZ-1A-TLM | |
| 7 | LED CIRCUIT | |
| 8 | TERMINAL | |
| 9 | - FLAT HEAD SCREW M6X22 | |
| 10 | KEYLESS DRILL CHUCK 13 | |
| 11 | GEAR ASS’Y | |
| 12 | YOKE UNIT | |
| 13 | ARMATURE | |
| 14 | BRUSH HOLDER COMPLETE | |
| 15 | CARBON BRUSH CB-440 | |
| 16 | RUBBER PIN 4 | |
| 17 | REAR COVER | |
| 18 | TAPPING SCREW BIND PT3X16 | |
| 19 | HOUSING SET INC. 2 | |
| 20 | LEAF SPRING | |
| 21 | HEATSINK | |
| 22 | PAN HEAD SCREW M3X8 | |
| A01 | DC18RC FAST CHARGER (NEW) | |
| A02 | +- BIT 2-45 | |
| A03 | PLASTIC CASE COMPLETE (NEW) | |
| A04 | BATTERY BL1830 SET | |
| A05 | BDF452RFE PLASTIC CASE LABEL | |
| A06 | BATTERY COVER | |
| A07 | 185RECHARGEABLE JOB SITE LIGHT INC. A08,A09 | |
| A08 | HOOK PLATE | |
| A09 | STRAP G0970200500 | |
| E01 | HOOK (NEW) | |
| E02 | + SCREW M4X12 |
