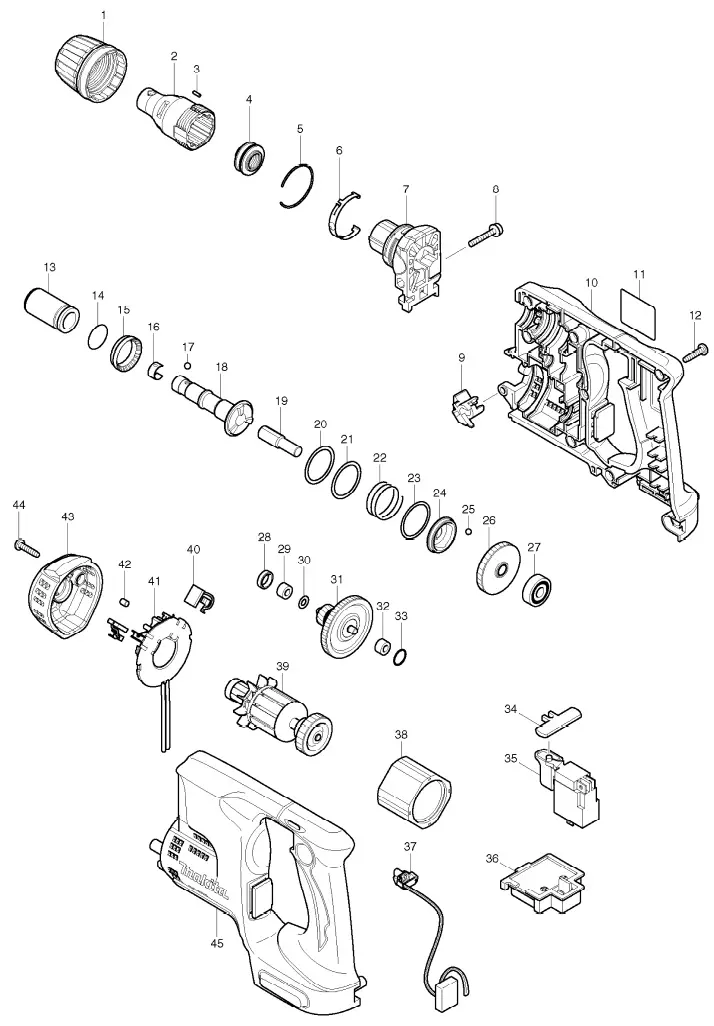

BFS 440
BFS 440
| П-п | Арт | Название |
|---|---|---|
| 1 | LOCK RING | |
| 2 | LOCATOR S COMPLETE INC. 3,4 | |
| 3 | BRAKE PIN | |
| 4 | DUST SEAL RING | |
| 5 | RING SPRING 33 | |
| 6 | LEAF SPRING | |
| 7 | LOCATOR BASE COMPLETE | |
| 8 | PAN HEAD SCREW M4X25 | |
| 9 | LIGHT HOLDER | |
| 10 | HOUSING SET INC. 45 | |
| 11 | BFS440 NAME PLATE | |
| 12 | TAPPING SCREW 4X18 | |
| 13 | PLANE BEARING 14 | |
| 14 | O RING 18 | |
| 15 | SLEEVE 20 | |
| 16 | LEAF SPRING | |
| 17 | STEEL BALL 3.5 | |
| 18 | SPINDLE | |
| 19 |  |
SHOULDER PIN 8-10 |
| 20 |  |
FLAT WASHER 25 |
| 21 |  |
FLAT WASHER 25 |
| 22 |  |
COMPRESSEION SPRING 25 |
| 23 |  |
FLAT WASHER 26 |
| 24 |  |
CLUTCH CAM C |
| 25 |  |
STEEL BALL 4 |
| 26 |  |
HELICAL GEAR 48 |
| 27 |  |
BALL BEARING 608 |
| 28 |  |
RUBBER SLEEVE 10 |
| 29 |  |
PLANE BEARING 5 |
| 30 |  |
FLAT WASHER 5 |
| 31 |  |
GEAR COMPLETE 18-44 |
| 32 |  |
PLANE BEARING 5 |
| 33 |  |
O RING 10 |
| 34 |  |
F/R CHANGE LEVER |
| 35 |  |
SWITCH TG513SBA-1 |
| 36 |  |
TERMINAL |
| 37 |  |
LIGHT CIRCUIT |
| 38 |  |
YOKE UNIT |
| 39 |  |
ARMATURE |
| 40 |  |
CARBON BRUSH CB-440 |
| 41 |  |
BRUSH HOLDER COMPLETE |
| 42 |  |
RUBBER PIN 4 |
| 43 |  |
FRONT COVER |
| 44 |  |
TAPPING SCREW 4X18 |
| 45 |  |
HOUSING SET INC. 10 |
| A01 |  |
HOOK |
| A02 |  |
BIT 2-25 |
| A03 |  |
MAGNETIC CONNECT BIT 6.35-60 |
| A04 |  |
DC18RA FAST CHARGER |
| A05 |  |
BATTERY BL1430 SET |
| A06 |  |
BATTERY COVER |
| A07 |  |
PLASTIC CARRYING CASE |
