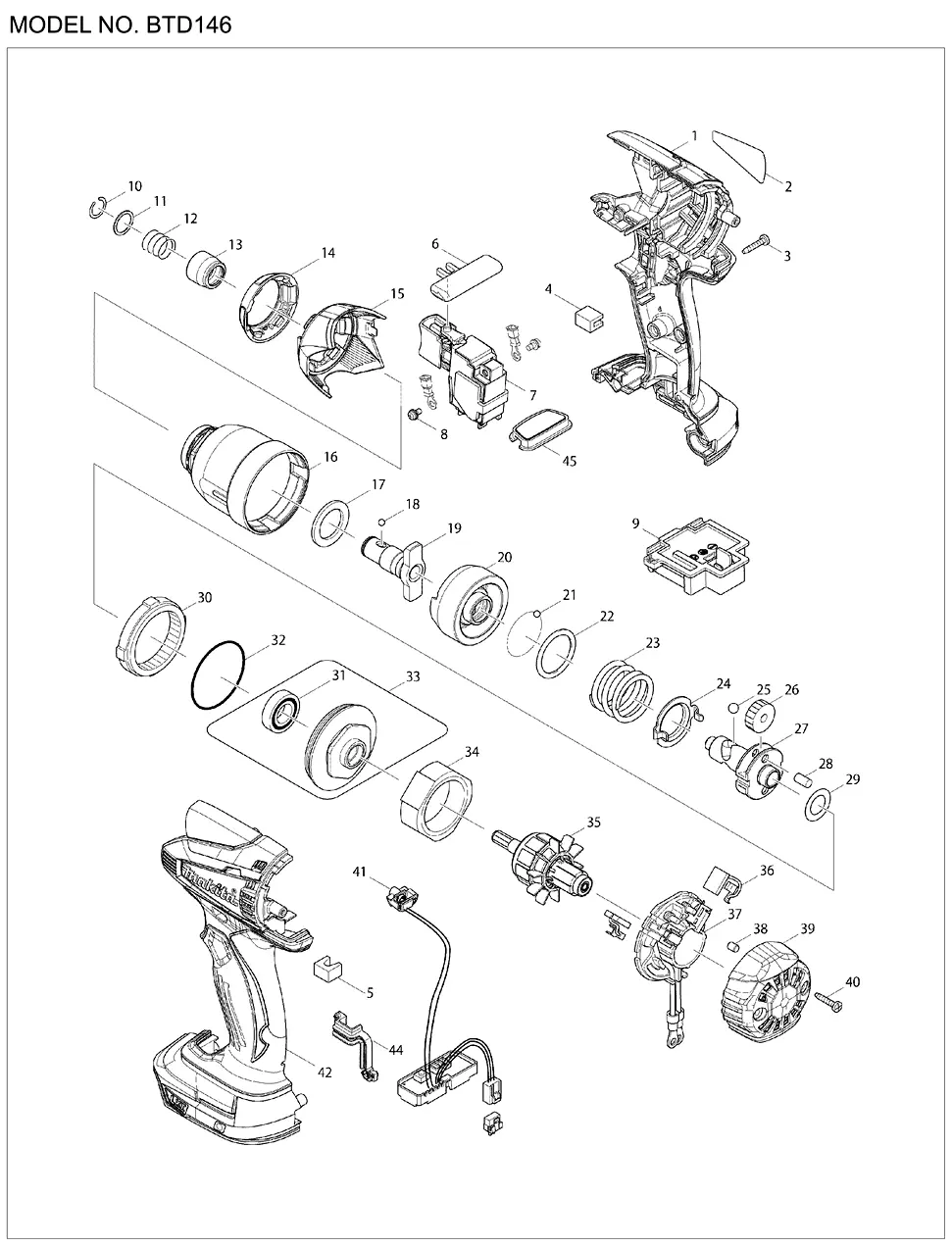

BTD 146
BTD 146
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET INC. 42 | |
| 2 | BTD146 NAME PLATE | |
| 3 | TAPPING SCREW 3X16 | |
| 4 | SPONGE B | |
| 5 | SPONGE A | |
| 6 | F/R CHANGE LEVER | |
| 7 | SWITCH TG573FSB-1 (new) | |
| 7 | SWITCH TG573FSB-1 (old) | |
| 8 | +PAN HEAD SCREW M3.5X5 | |
| 9 | TERMINAL | |
| 10 | RING SPRING 11 | |
| 11 | FLAT WASHER 12 | |
| 12 | COMPRESSION SPRING 13 | |
| 13 | BIT SLEEVE | |
| 14 | BUMPER | |
| 15 | HAMMER CASE COVER | |
| 16 | HAMMER CASE COMPLETE | |
| 17 | NYLON WASHER 19 | |
| 18 | STEEL BALL 3.5 | |
| 19 | ANVIL M | |
| 20 | HAMMER | |
| 21 | STEEL BALL 3.5 | |
| 22 | FLAT WASHER 24 | |
| 23 | COMPRESSION SPRING 24 | |
| 24 | PLATE | |
| 25 | STEEL BALL 5.6 | |
| 26 | SPUR GEAR 22 | |
| 27 | SPINDLE | |
| 28 | PIN 5 | |
| 29 | THIN WASHER 12 | |
| 30 | INTERNAL GEAR 51 | |
| 31 | BALL BEARING 6901LLB | |
| 32 | O RING 40 | |
| 33 | BEARING BOX COMPLETE INC. 31 | |
| 34 | YOKE UNIT | |
| 35 | ARMATURE | |
| 36 |  |
CARBON BRUSH CB-440 |
| 37 |  |
BRUSH HOLDER COMPLETE |
| 38 |  |
RUBBER PIN 4 |
| 39 |  |
REAR COVER |
| 40 |  |
TAPPING SCREW 3X16 |
| 41 |  |
LIGHT CIRCUIT |
| 42 |  |
HOUSING SET INC. 1 |
| 44 |  |
SEAL |
| 45 |  |
SWITCH PLATE COMPLETE |
| A01 |  |
+ TRUSS HEAD SCREW M4X12 |
| A02 |  |
HOOK |
| A02 |  |
HOOK |
| A03 |  |
BATTERY COVER |
| A04 |  |
DC18RC FAST CHARGER |
| A04 |  |
Зарядное устр.DC18RC(коробка) |
| A04 |  |
Зарядное устр.DC18RC(блистер) |
| A05 |  |
BATTERY BL1830 SET |
| A06 |  |
PLASTIC CARRYING CASE |
| A07 |  |
BTD146RFE PLASTIC CASE LABEL |
