DDF 454
DDF 454

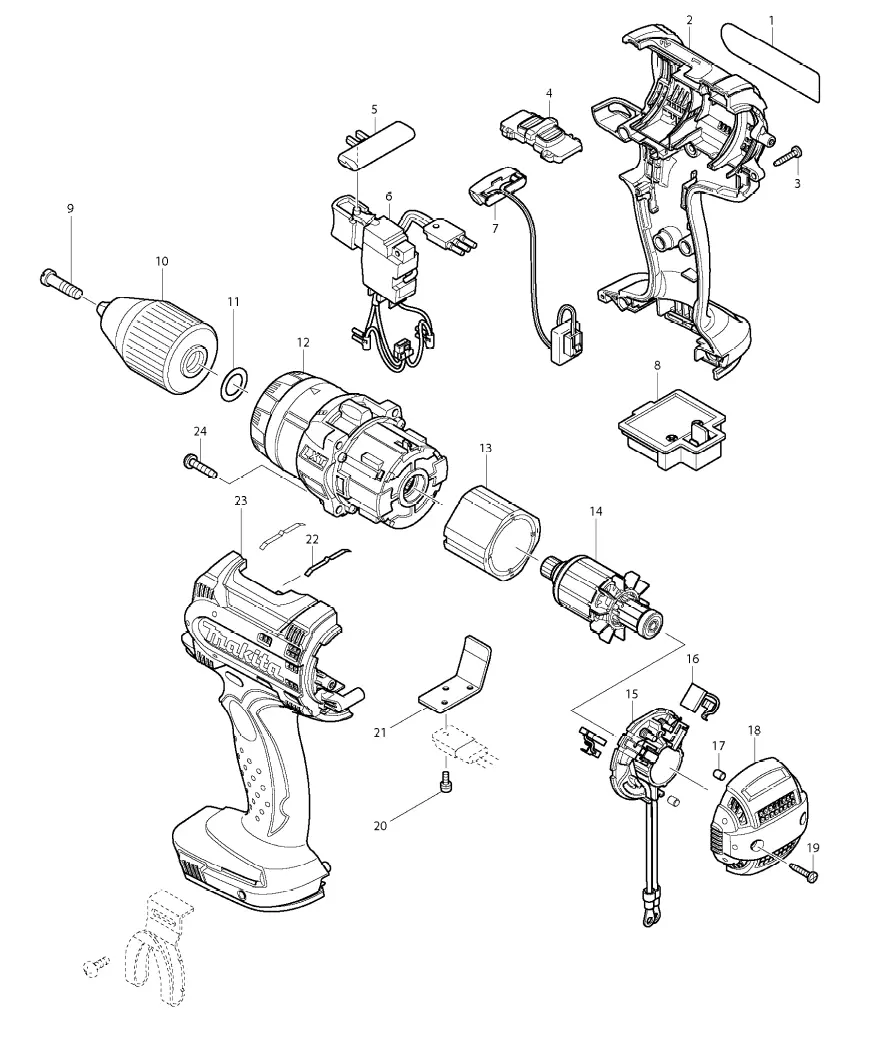

| П-п | Арт | Название |
|---|---|---|
| 1 |  |
DDF454 NAME PLATE |
| 2 |  |
HOUSING SET INC. 23 |
| 3 |  |
TAPPING SCREW BIND PT 3X16 |
| 4 |  |
SPEED CHANGE LEVER ASS\\\'Y |
| 5 |  |
F/R CHANGE LEVER |
| 6 |  |
SWITCH TG553FSB-4BH |
| 7 |  |
LIGHT CIRCUIT |
| 8 |  |
TERMINAL |
| 9 |  |
FLAT HEAD SCREW M6X22 |
| 10 |  |
KEYLESS DRILL CHUCK 13 |
| 11 |  |
FLAT WASHER 13 |
| 12 |  |
GEAR ASS\\\'Y |
| 13 |  |
YOKE UNIT |
| 14 |  |
ARMATURE |
| 15 |  |
BRUSH HOLDER COMPLETE |
| 16 |  |
CARBON BRUSH CB-440 |
| 17 |  |
RUBBER PIN 4 |
| 18 |  |
REAR COVER |
| 19 |  |
TAPPING SCREW BIND PT 3X16 |
| 20 |  |
PAN HEAD SCREW M3X8 |
| 21 |  |
HEAT SINK |
| 22 |  |
LEAF SPRING |
| 23 | HOUSING SET INC. 2 | |
| 24 | TAPPING SCREW 4X20 | |
| A01 | GRIP ASSEMBLY | |
| A02 | SCREW M4X12 | |
| A03 | HOOK | |
| A04 | BIT HOLDER | |
| A05 | BIT 2-45 | |
| A06 | DC18RC FAST CHARGER | |
| A07 | BATTERY BL1830 SET | |
| A08 | BATTERY COVER | |
| A09 | PLASTIC CASE COMPLETE | |
| A10 | DDF454RFE PLASTIC CASE LABEL | |
| E02 | POLYOLEFIN TUBE |
