DF 010 DSE

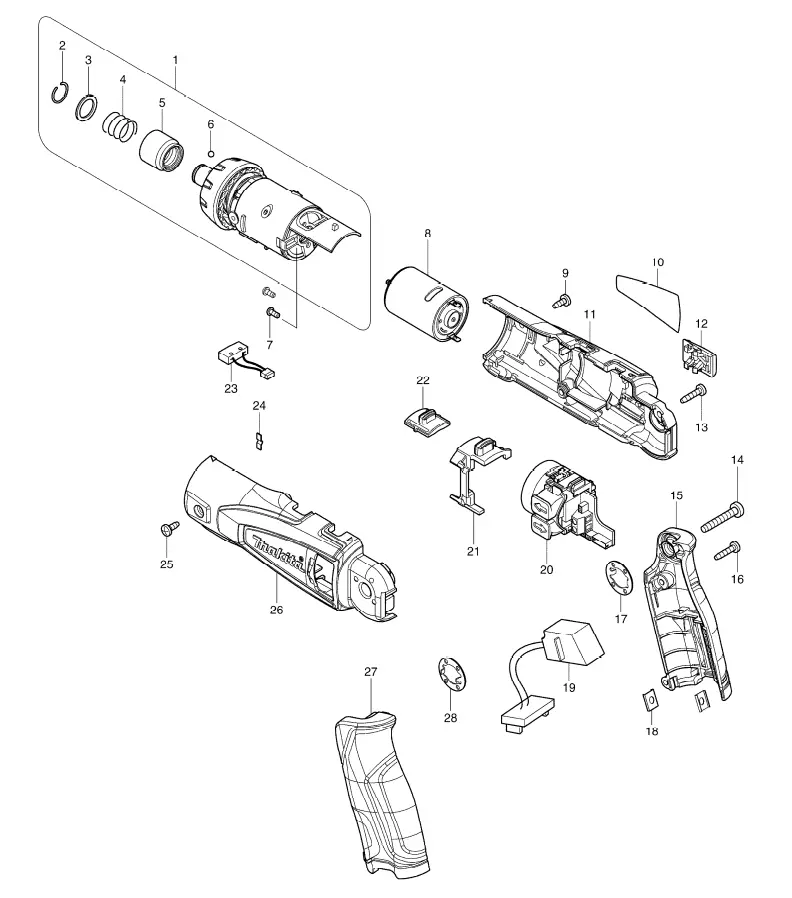

DF 010 DSE
| П-п | Арт | Название |
|---|---|---|
| 1 | GEAR ASSEMBLY INC. 2-6 | |
| 2 | RING SPRING 10 | |
| 3 | FLAT WASHER 11 | |
| 4 | COMPRESSION SPRING 13 | |
| 5 | BIT SLEEVE | |
| 6 | STEEL BALL 3 | |
| 7 | PAN HEAD SCREW M2.6X6 | |
| 8 | DC MOTOR | |
| 9 | TAPPING SCREW BIND PT3X8 | |
| 10 | DF010D NAME PLATE | |
| 11 | MOTOR HOUSING SET INC. 26 | |
| 12 | SLIDE PLATE | |
| 13 | TAPPING SCREW BIND 3X14 | |
| 14 | TAPPING SCREW 4X25 | |
| 15 | HANDLE SET INC. 27 | |
| 16 | TAPPING SCREW BIND 3X14 | |
| 17 | LOCK WASHER | |
| 18 | SET PLATE | |
| 19 | CONTROLLER | |
| 20 | SWITCH UNIT | |
| 21 | CHANGE LEVER | |
| 22 | SPEED CHANGE LEVER ASSEMBLY | |
| 23 | SWITCH UNIT | |
| 24 | LEAF SPRING | |
| 25 | TAPPING SCREW BIND PT3X8 | |
| 26 | MOTOR HOUSING SET INC. 11 | |
| 27 | HANDLE SET INC. 15 | |
| 28 | LOCK WASHER | |
| A01 | DC07SA BATTERY CHARGER | |
| A02 | BATTERY BL7010 SET | |
| A03 | BIT 2-50 | |
| A04 | BIT 1-50 | |
| A05 | PLASTIC CASE | |
| A06 | PLASTIC CARRYING CASE COMPLETE |
