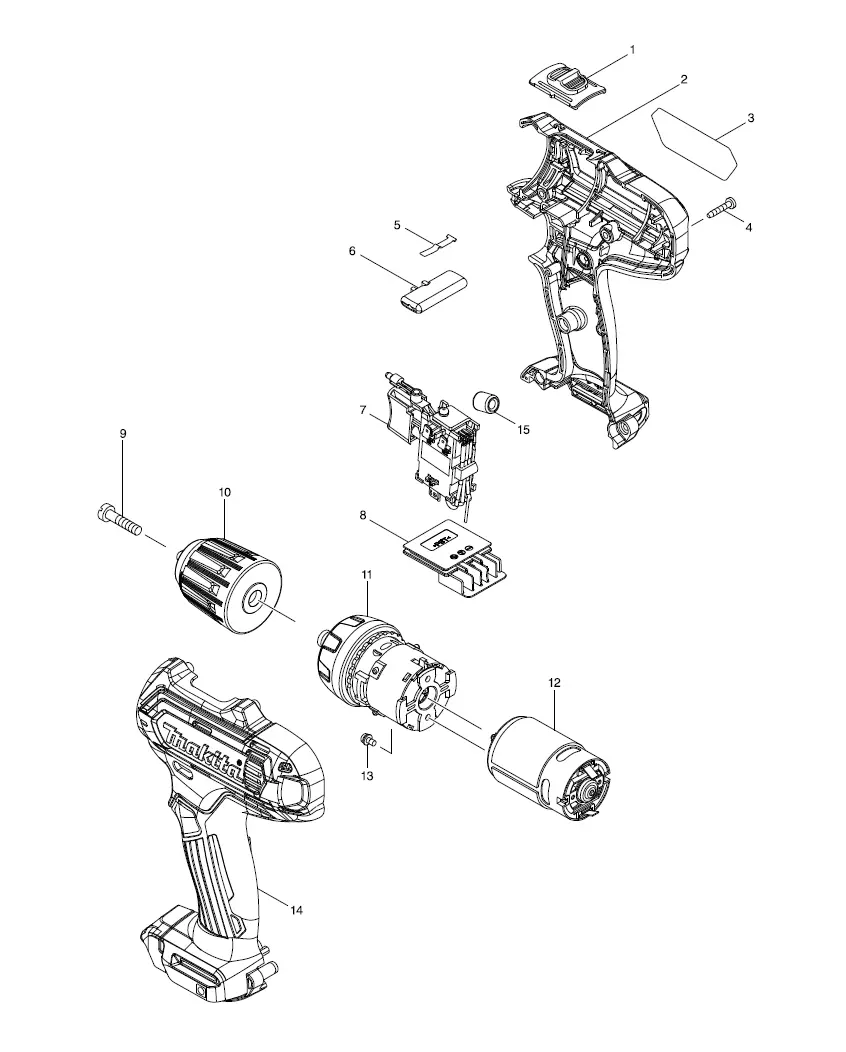

DF 331
DF 331
| П-п | Арт | Название |
|---|---|---|
| 1 | SPEED CHANGE LEVER ASSEMBLY | |
| C10 | COMPRESSION SPRING 4 | |
| 2 | HOUSING SET | |
| C10 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 14 | |
| 3 | DF331D NAME PLATE | |
| 4 | TAPPING SCREW 3X16 | |
| 5 | LEAF SPRING | |
| 6 | F/R CHANGE LEVER | |
| 7 | SWITCH UNIT | |
| C10 | LED CIRCUIT | |
| C20 | LINE FILTER UNIT | |
| 8 | TERMINAL | |
| 9 | PAN HEAD SCREW M5X22 | |
| 10 | KEYLESS DRILL CHUCK 10 | |
| 11 | GEAR ASSY | |
| 12 | DC MOTOR | |
| 13 | PAN HEAD SCREW M3X6 | |
| 14 | HOUSING SET | |
| C10 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 2 | |
| 15 | LINE FILTER | |
| A01 | SCREW M4X12 | |
| A02 | HOOK | |
| A03 | BIT 2-50 | |
| A04 | BATTERY COVER | |
| A05 | DC10WC BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A06A | BATTERY BL1020B SET | |
| A06B | BATTERY BL1040B SET | |
| A07 | PLASTIC CARRYING CASE | |
| C10 | LATCH |
