DF 333 D

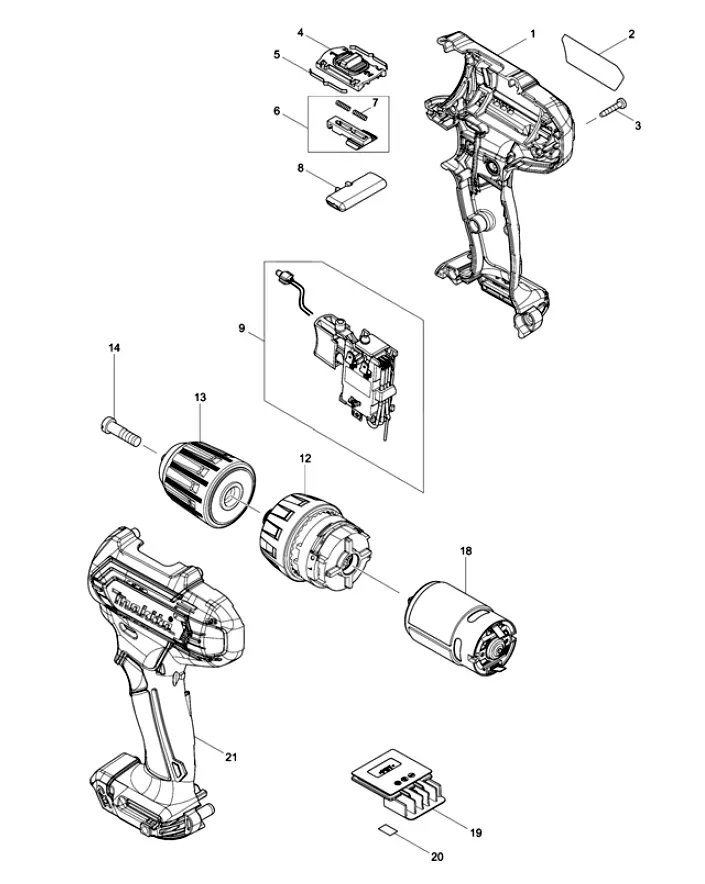

DF 333 D
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET | |
| C10 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 21 | |
| 2 | DF333D NAME PLATE | |
| 3 | TAPPING SCREW 3X16 | |
| 4 | SPEED CHANGE LEVER | |
| 5 | LEAF SPRING | |
| 6 | CHANGE LEVER ASSEMBLY | |
| D10 | INC. 7 | |
| 7 | COMPRESSION SPRING 2 | |
| 8 | F/R CHANGE LEVER | |
| 9 | SWITCH UNIT | |
| C10 | LED CIRCUIT | |
| D10 | LINE FILTER | |
| 12 | GEAR ASSEMBLY | |
| 13 | KEYLESS DRILL CHUCK 10 | |
| 14 | FLAT HEAD SCREW M6X22 | |
| 18 | DC MOTOR | |
| 19 | TERMINAL | |
| 20 | DF333D SERIAL NO. LABEL | |
| 21 | HOUSING SET | |
| C10 | HEX. LOCKING NUT M4-7 | |
| D10 | INC. 1 | |
| A01 | SCREW M4X12 | |
| A02 | HOOK | |
| A03 | BIT 2-50 | |
| A04B | PLASTIC CARRYING CASE | |
| C10 | LATCH | |
| A04C | PLASTIC CARRYING CASE | |
| C10 | LATCH | |
| A04D | PLASTIC CARRYING CASE | |
| C10 | LATCH | |
| A04E | PLASTIC CARRYING CASE | |
| C10 | LATCH | |
| A05B | DF333DWYE MODEL NO. LABEL | |
| A05C | DF333DWAE MODEL NO. LABEL | |
| A05D | DF333DWME MODEL NO. LABEL | |
| A05E | DF333DWYE4 MODEL NO. LABEL | |
| A08B | BATTERY COVER | |
| A08C | BATTERY COVER | |
| A08D | BATTERY COVER | |
| A08E | BATTERY COVER | |
| A09B | DC10WD BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A09C | DC10WD BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A09D | DC10WD BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A09E | DC10WD BATTERY CHARGER | |
| D10 | COMPO-PARTS | |
| A10B | BATTERY BL1016 SET | |
| A10C | BATTERY BL1021B SET | |
| A10D | BATTERY BL1041B SET | |
| A10E | BATTERY BL1016 SET | |
| A10-1C | BATTERY BL1021B SET | |
| A10-1D | BATTERY BL1041B SET | |
| A11E | 18PCS. SCREW BIT SET | |
| E01 |  |
LINE FILTER UNIT |
