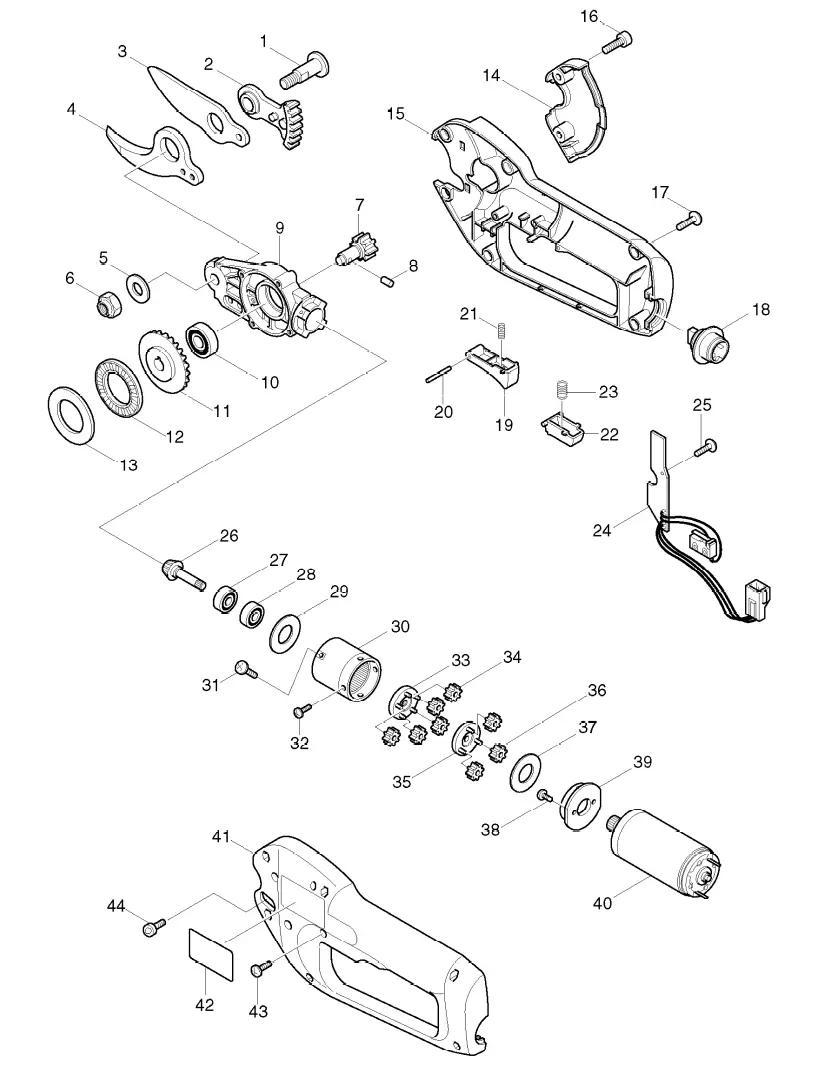

4604 DW
4604 DW
| П-п | Арт | Название |
|---|---|---|
| 1 | ROUND HEAD BOLT M8 | |
| 2 | BLADE HOLDER COMPLETE | |
| 3 | SHEAR BLADE(U) | |
| 4 | SHEAR BLADE(L) | |
| 5 | FLAT WASHER 8 | |
| 6 | HEX.NUT M8-13 | |
| 7 | SPUR GEAR 9 | |
| 8 | PIN 3 | |
| 9 | GEAR HOUSING | |
| 10 | BALL BEARING 609LLB | |
| 11 | ZEROL BEVEL GEAR 45 | |
| 12 | THRUST NEEDLE CAGE 2542 | |
| 13 | WASHER 2542 | |
| 14 | BLADE COVER | |
| 15 | HOUSING SET INC. 41 | |
| 16 | HEX. SOCKET HEAD BOLT M4X12 | |
| 17 | PAN HEAD SCREW M3X16 | |
| 18 | LEAD UNIT | |
| 19 | SWITCH LEVER | |
| 20 | PIN 2.5 | |
| 21 | COMPRESSION SPRING 4 | |
| 22 | LOCK-OFF LEVER | |
| 23 | COMPRESSION SPRING 6 | |
| 24 | HALL IC CIRCUIT COMPLETE | |
| 25 | PAN HEAD SCREW M3X6 | |
| 26 | ZEROL BEVEL GEAR 13 | |
| 27 | BALL BEARING 606ZZ | |
| 28 | BALL BEARING 606ZZ | |
| 29 | FLAT WASHER 14 | |
| 30 | INTERNAL GEAR 44 | |
| 31 | PAN HEAD SCREW M3X6 | |
| 32 | TAPPING SCREW BIND PT3X8 | |
| 33 | SUPPORTER COMPLETE | |
| 34 | SPUR GEAR 14 | |
| 35 | SPUR GEAR 16 COMPLETE | |
| 36 | SPUR GEAR 14 | |
| 37 | FLAT WASHER 14 | |
| 38 | PAN HEAD SCREW M2.5X12 | |
| 39 | MOTOR HOLDER | |
| 40 | DC MOTOR | |
| 41 | HOUSING SET INC. 15 | |
| 42 | NAME PLATE 4604D | |
| 43 | PAN HEAD SCREW M3X12 | |
| 44 | HEX. SOCKET HEAD BOLT M4X12 | |
| A01 | HEX. WRENCH 3 | |
| A02 | WRENCH HOLDER 3.4 | |
| A03 | SOCKET WRENCH 13 | |
| A04 | ARM BAND | |
| A05 | BATTERY SUPPORT BELT | |
| A06 | SUSPENDER | |
| A07 | HOLSTER | |
| A08 | OIL SUPPLY | |
| A09 | BATTERY COVER | |
| A10 | C4600 CONTROLLER | |
| A11 | BATTERY 4600 SET | |
| A12 | CONNECTION CORD | |
| A13 | SHEAR BLADE(U) | |
| A14 | PLASTIC CARRYING CASE | |
| B01 | DC4600 BATTERY CHARGER |
